Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals of the stop lamp switch connector.

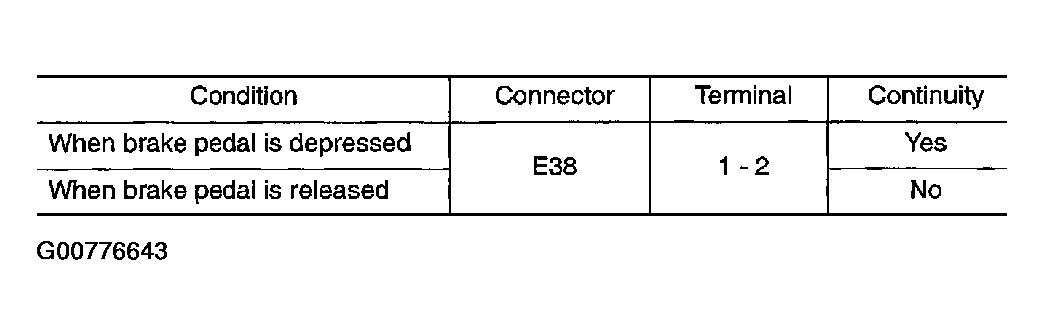

Fig 1: Terminal Identification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

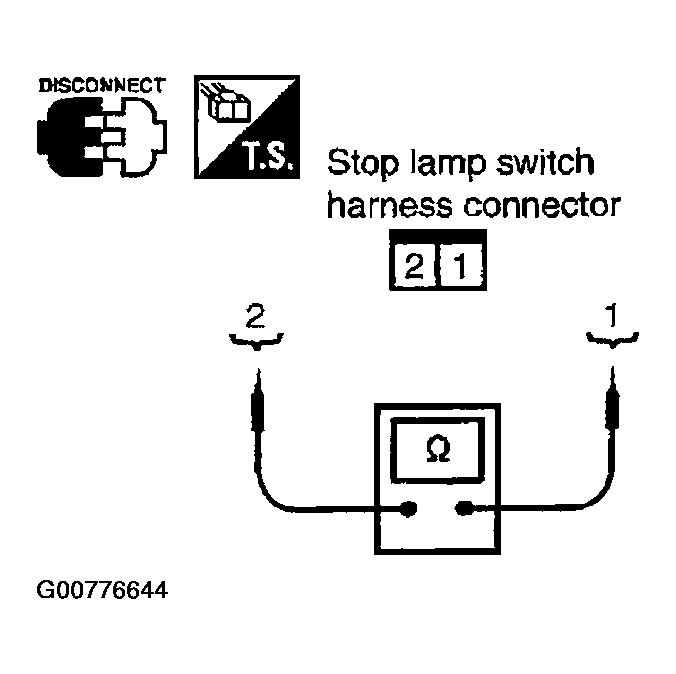

Fig 2: Checking Stop Lamp Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to "ADJUSTMENTS "
