2. Check Input Signal Of A/T Fluid Temperature Sensor (With CONSULT-II)
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Start engine.

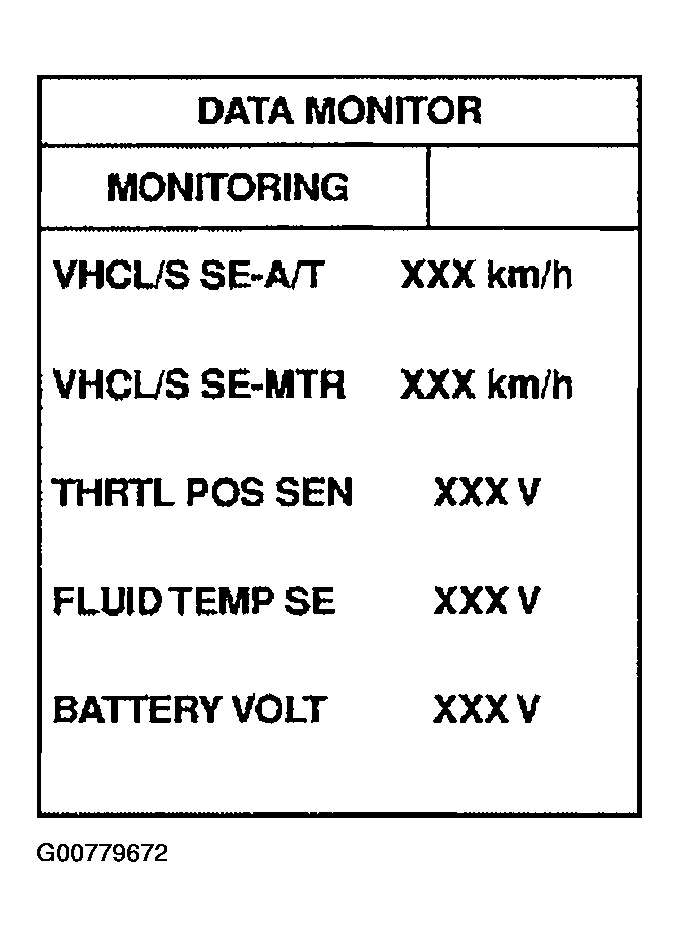

- Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" With CONSULT-II.
- Read out the value of "FLUID TEMP SE".
Voltage :Cold [20°C (68°F)] --> Hot [80°C (176°F)]
:Approximately 1.5V --> 0.5V
OK or NG
- OK : GO TO 7 .
- NG : GO TO 3.
