With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch to ON position. (Do not start engine.)
Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" With CONSULT-II.
Read out the value of "THRTL POS SEN".
Voltage:

Fully-closed throttle :Approximately 0.5V

Fully-open throttle :Approximately 4V

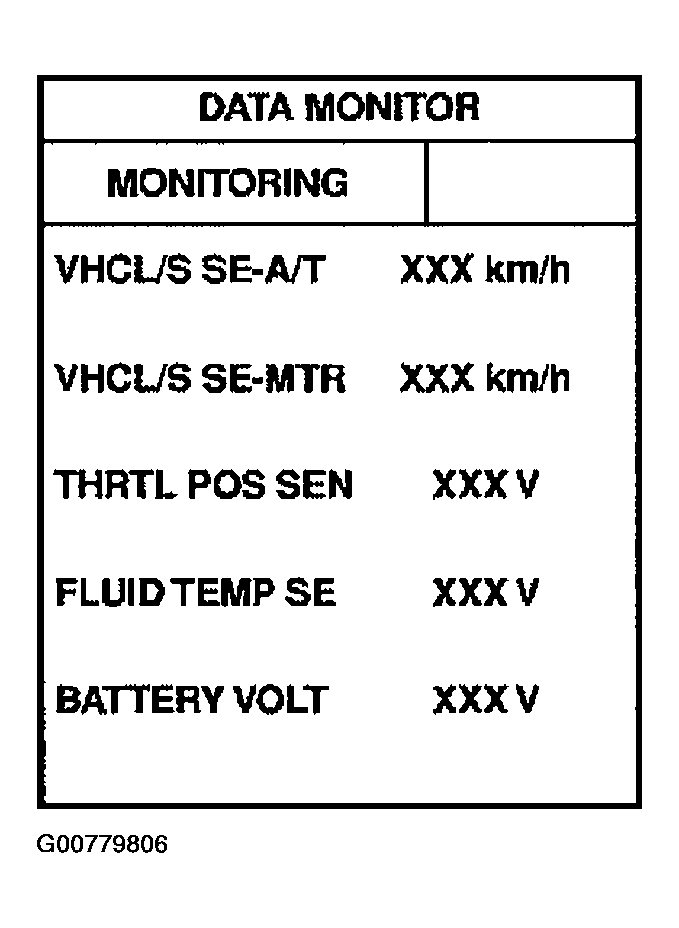

Fig 1: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 4 .
NG : Check harness for short or open between ECM and TCM regarding throttle position sensor circuit.
