With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

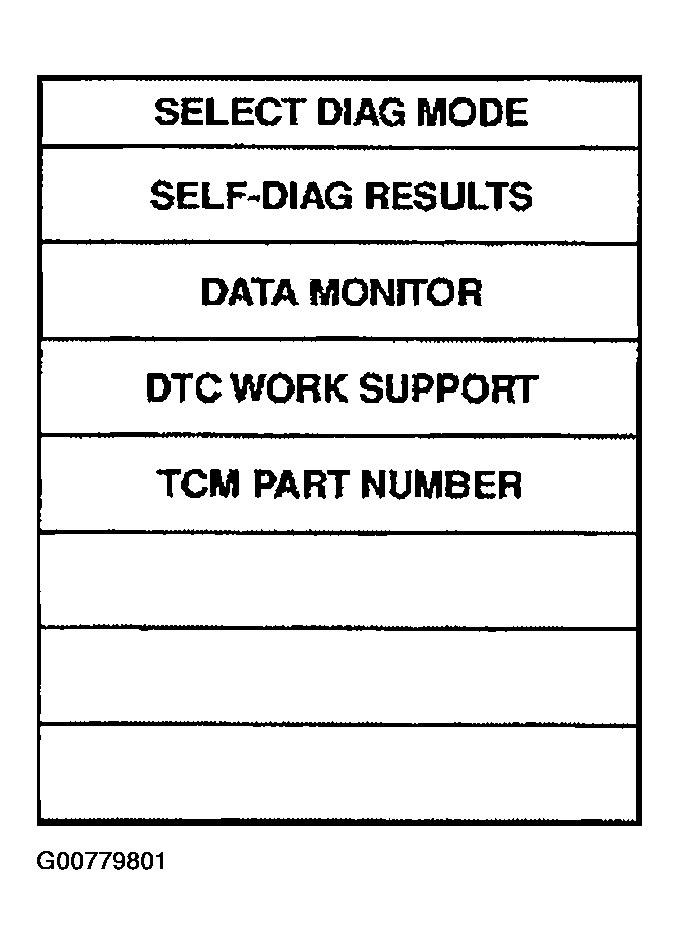

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" With CONSULT-II.
Touch "SELECTION FROM MENU".
Touch "THRTL POS SEN".
Touch "START"

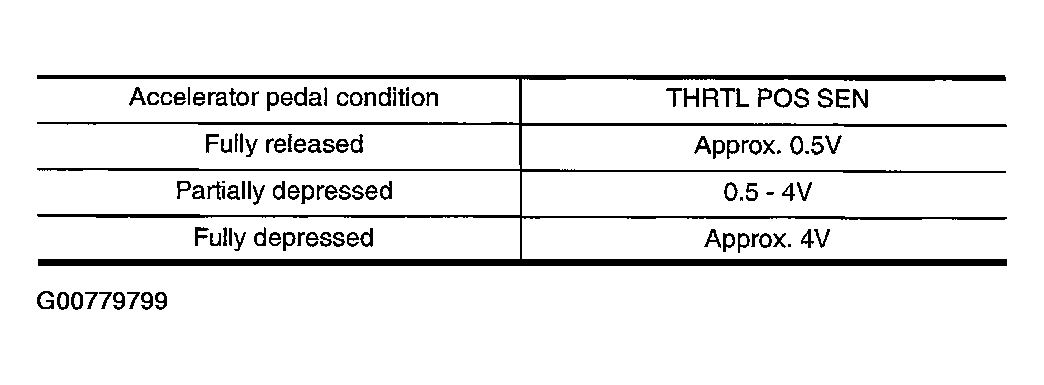

Fig 1: Throttle Position Sensor Voltage Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

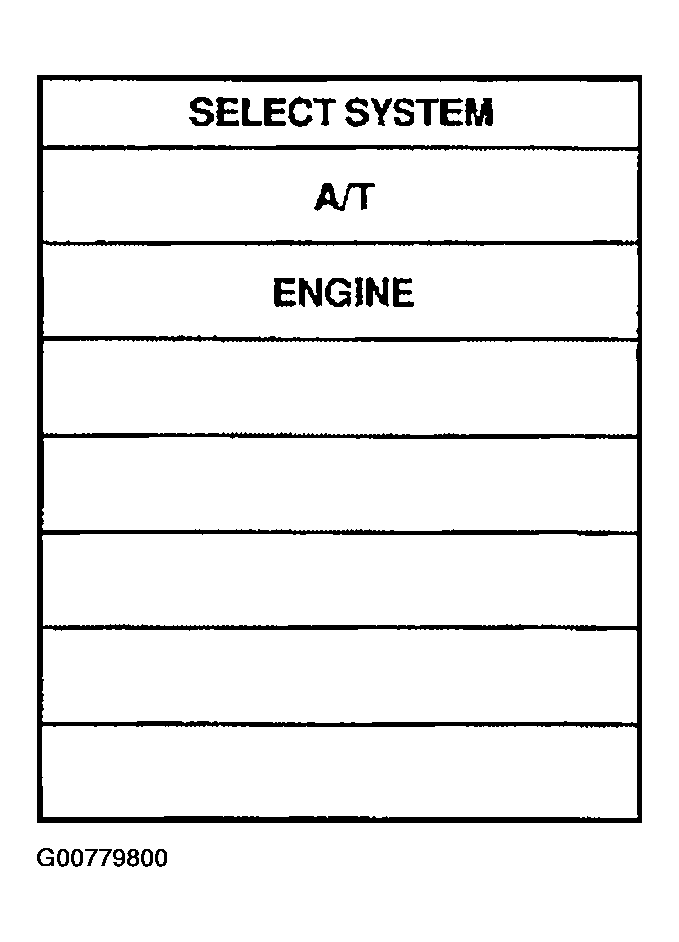

Fig 2: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.
Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" With CONSULT-II.
Touch "SELECTION FROM MENU"
Touch "VHCL SPEED SE" and "THRTL SEN 1".
Touch "START".
Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS 1: Approximately 3V or less

Selector lever: D position

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to following step.

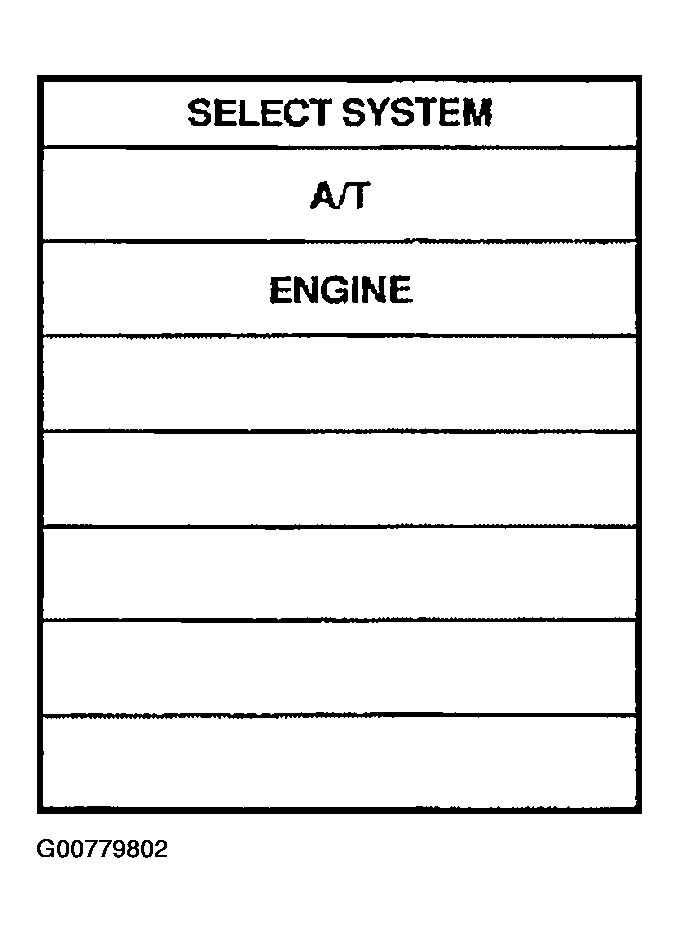

Fig 3: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

Accelerator pedal: Wide open throttle

Selector lever: D position

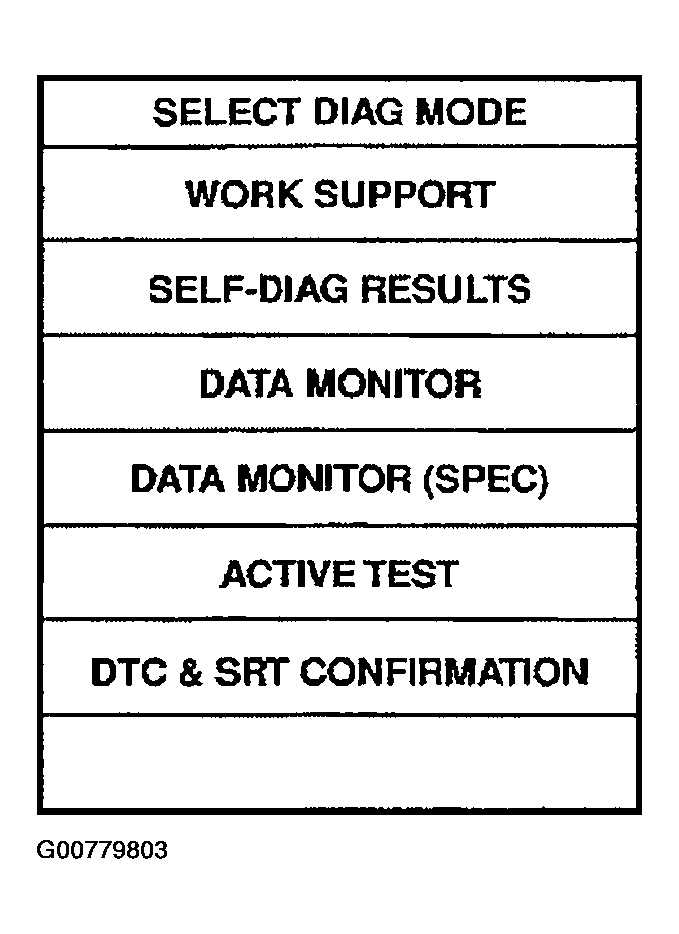

Fig 4: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
