Function Of Control Valves
WARNING:
This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Function Of Control Valves (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

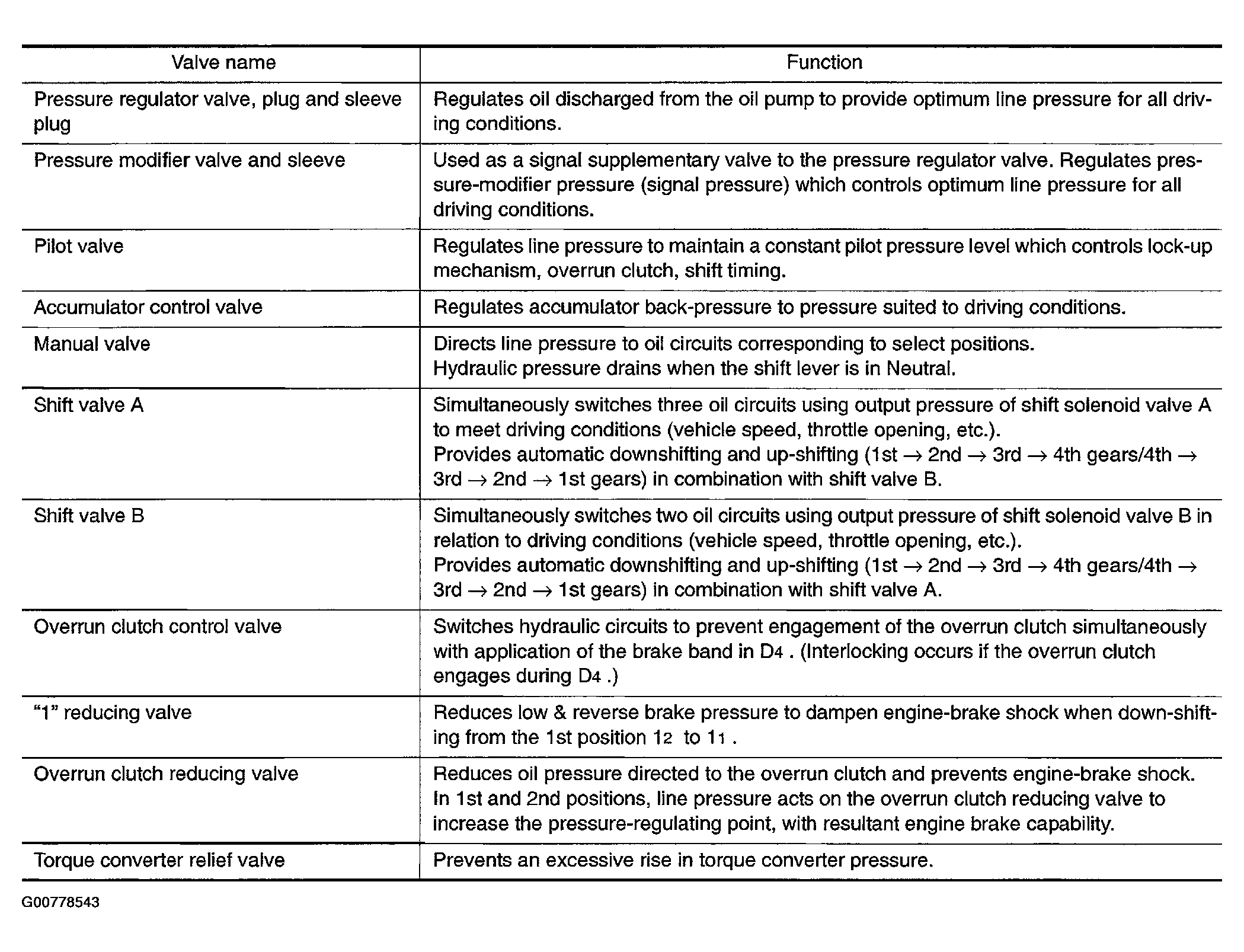

Fig 2: Function Of Control Valves (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
