Control Valve Assembly: Assembly: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install upper, inter and lower body.

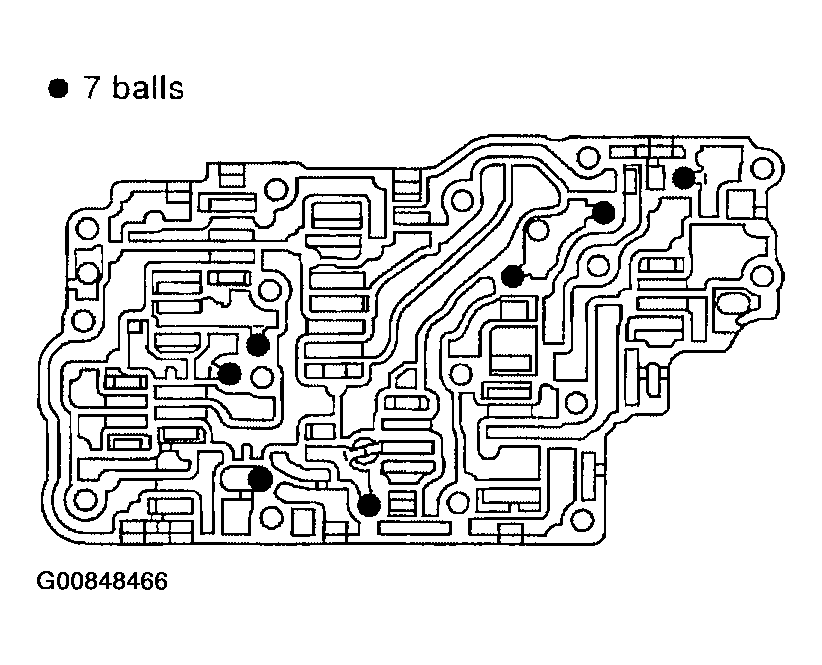

    1. Place oil circuit of upper body face up. Install steel balls in their proper positions.
      Fig 1: Assembly (1 Of 15)
      G00848466Courtesy of NISSAN MOTOR CO., U.S.A.

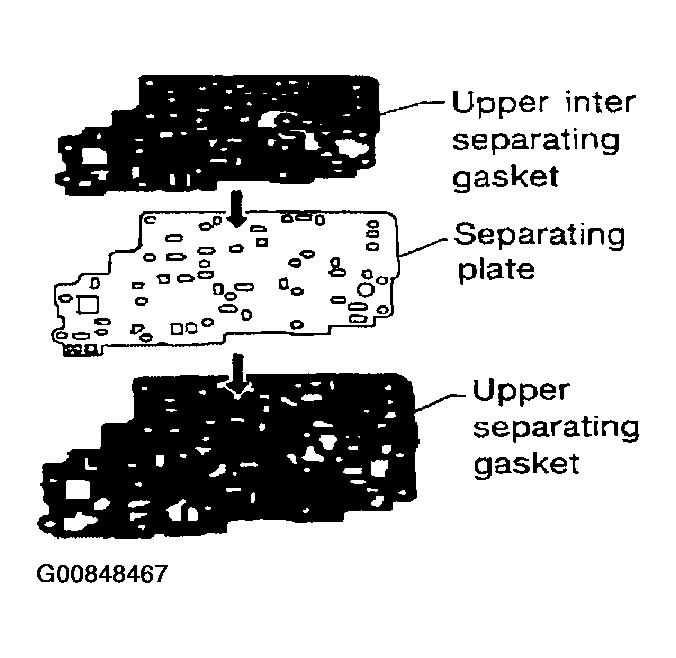

    2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.
      Fig 2: Assembly (2 Of 15)
      G00848467Courtesy of NISSAN MOTOR CO., U.S.A.

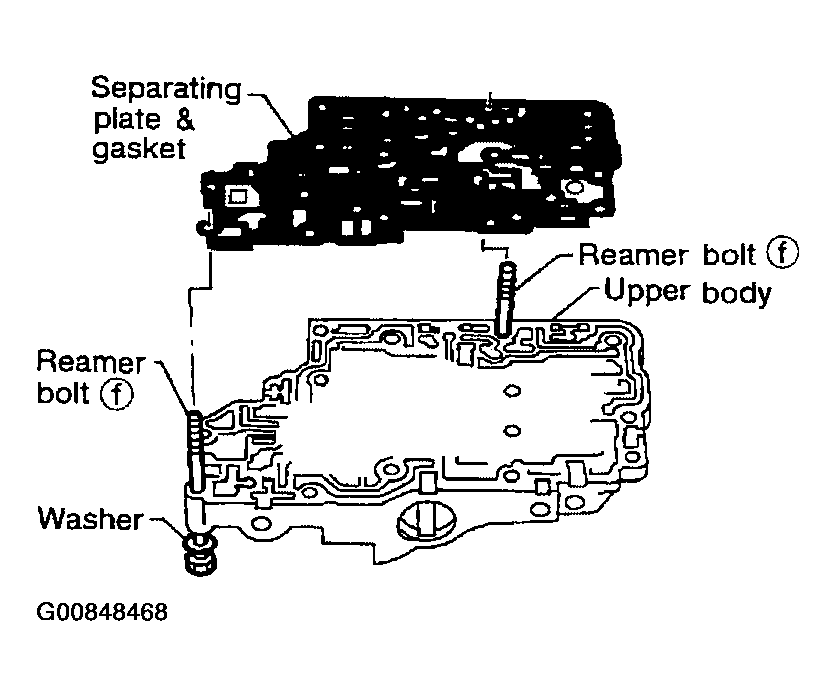

    3. Install reamer bolts from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.
      Fig 3: Assembly (3 Of 15)
      G00848468Courtesy of NISSAN MOTOR CO., U.S.A.

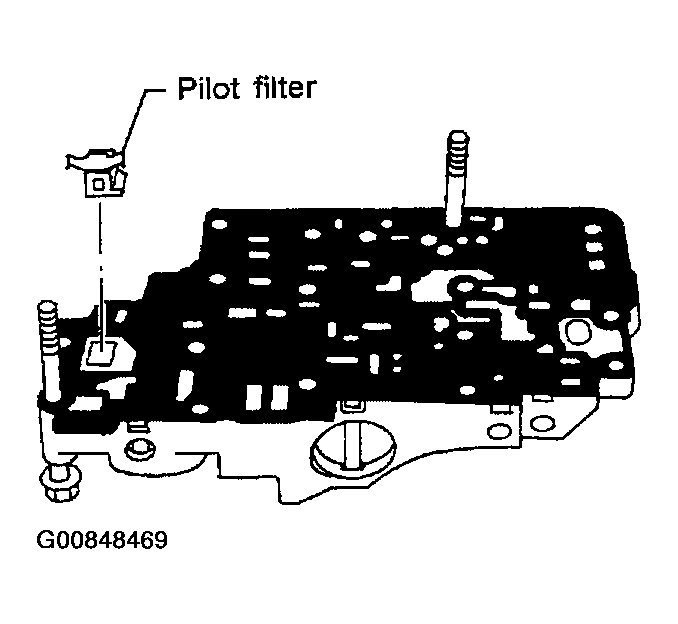

    4. Install pilot filter.
      Fig 4: Assembly (4 Of 15)
      G00848469Courtesy of NISSAN MOTOR CO., U.S.A.

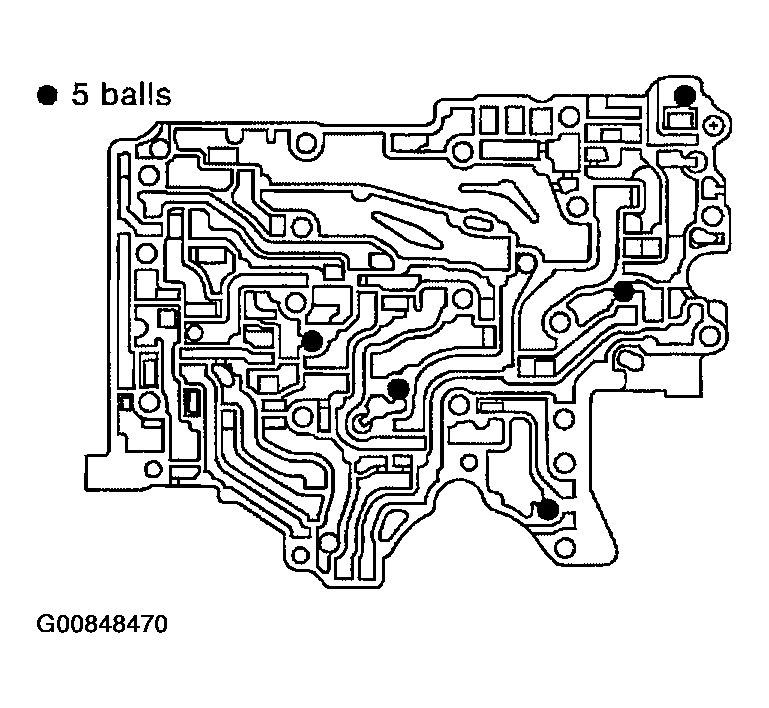

    5. Place lower body as shown in illustration (side of inter body face up). Install steel balls in their proper positions.
      Fig 5: Assembly (5 Of 15)
      G00848470Courtesy of NISSAN MOTOR CO., U.S.A.

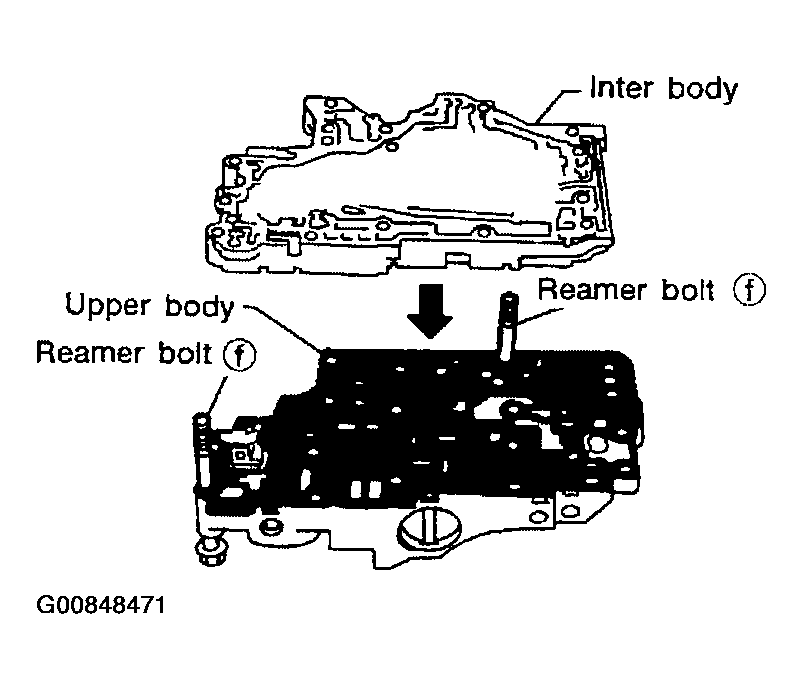

    6. Install inter body on upper body using reamer bolts as guides.
      • Be careful not to dislocate or drop steel balls.
        Fig 6: Assembly (6 Of 15)
        G00848471Courtesy of NISSAN MOTOR CO., U.S.A.

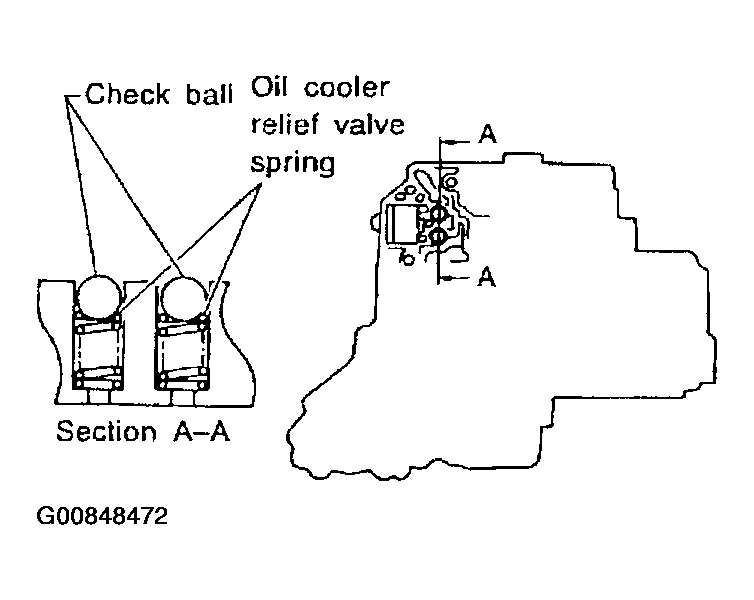

    7. Install check balls and oil cooler relief valve springs in their proper positions in lower body.
      Fig 7: Assembly (7 Of 15)
      G00848472Courtesy of NISSAN MOTOR CO., U.S.A.

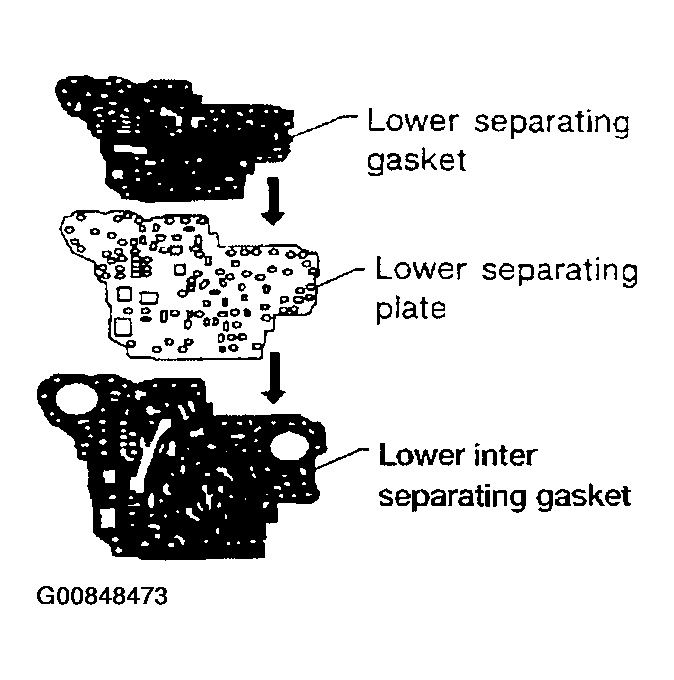

    8. Install lower separating gasket, lower inter separating gasket and lower separating plate in order shown in illustration.
      Fig 8: Assembly (8 Of 15)
      G00848473Courtesy of NISSAN MOTOR CO., U.S.A.

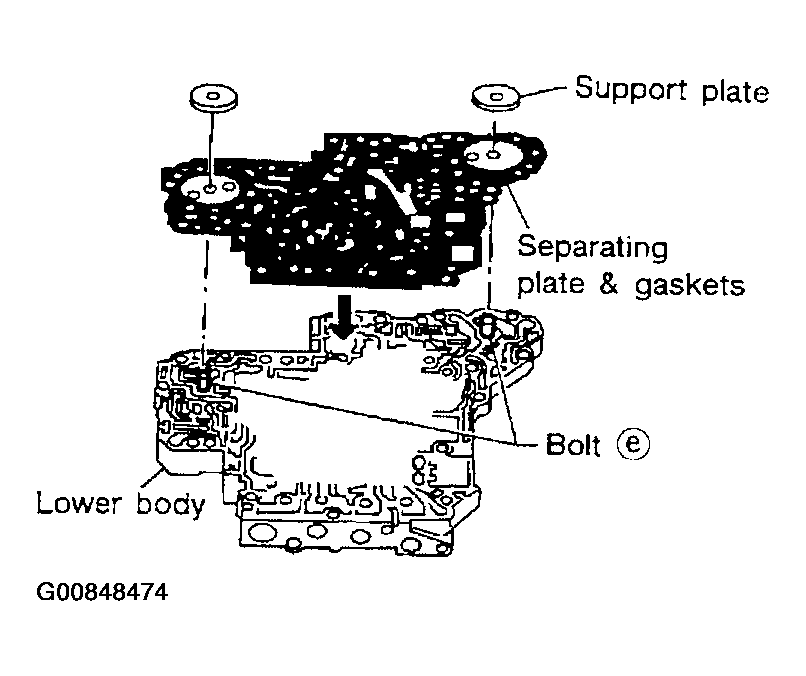

    9. Install bolts from bottom of lower body. Using bolts as guides, install separating plate and gaskets as a set.
      Fig 9: Assembly (9 Of 15)
      G00848474Courtesy of NISSAN MOTOR CO., U.S.A.
    10. Temporarily install support plates on lower body.

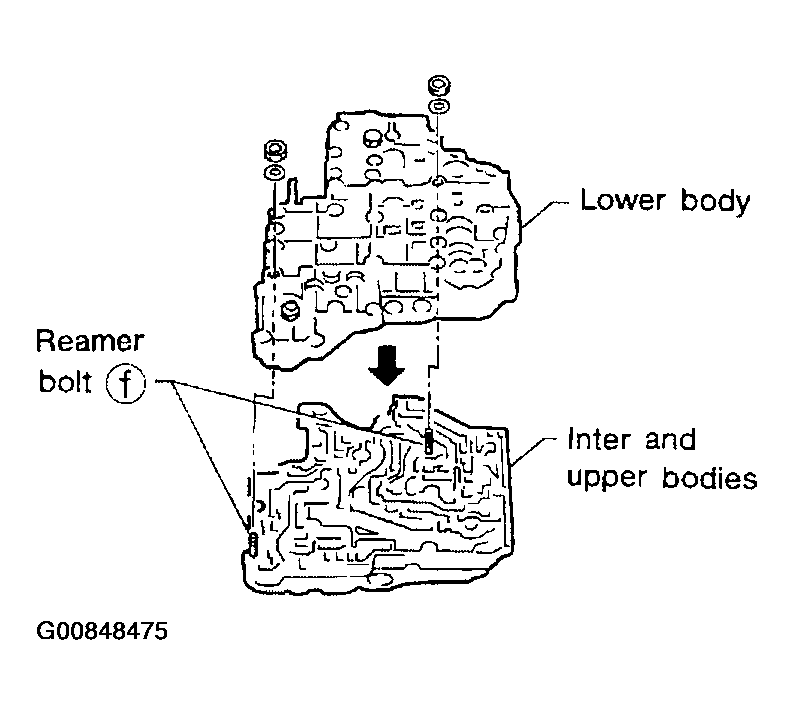

    11. Install lower body on inter body using reamer bolts as guides and tighten reamer bolts slightly.
      Fig 10: Assembly (10 Of 15)
      G00848475Courtesy of NISSAN MOTOR CO., U.S.A.

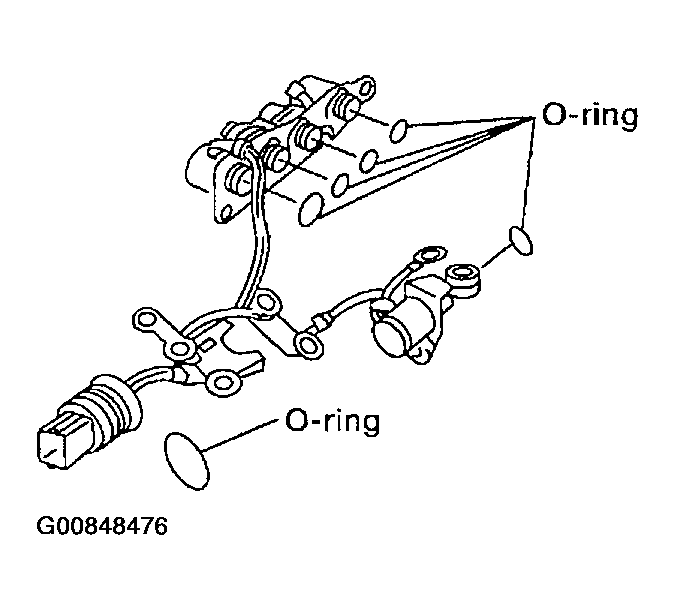

  2. Install O-rings to solenoid valves and terminal body.
    • Apply ATF to O-rings.
      Fig 11: Assembly (11 Of 15)
      G00848476Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install and tighten bolts.
