Control Cable

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

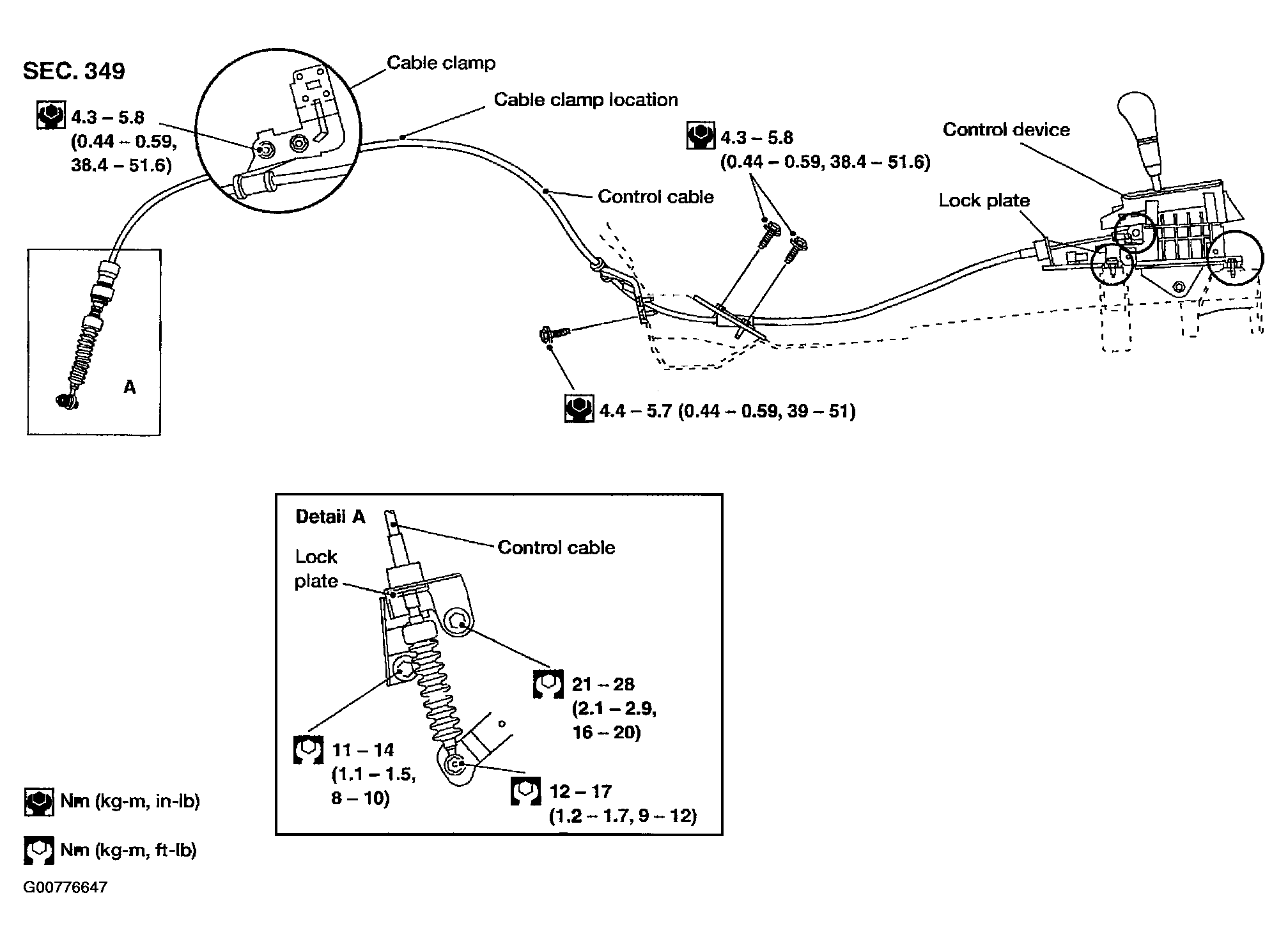

Fig 1: Control Cable
G00776647Courtesy of NISSAN MOTOR CO., U.S.A.
