A/T Model

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to CENTER CONSOLE (A/T) .
  2. Disconnect harness connector.
  3. Remove installation bolts. Remove yaw rate/side G-sensor.
CAUTION:
  • Do not drop or strike yaw rate/side G-sensor, because it has little endurance to impact.
  • Do not use power tool etc., because yaw rate/side G-sensor is weak for the impact.

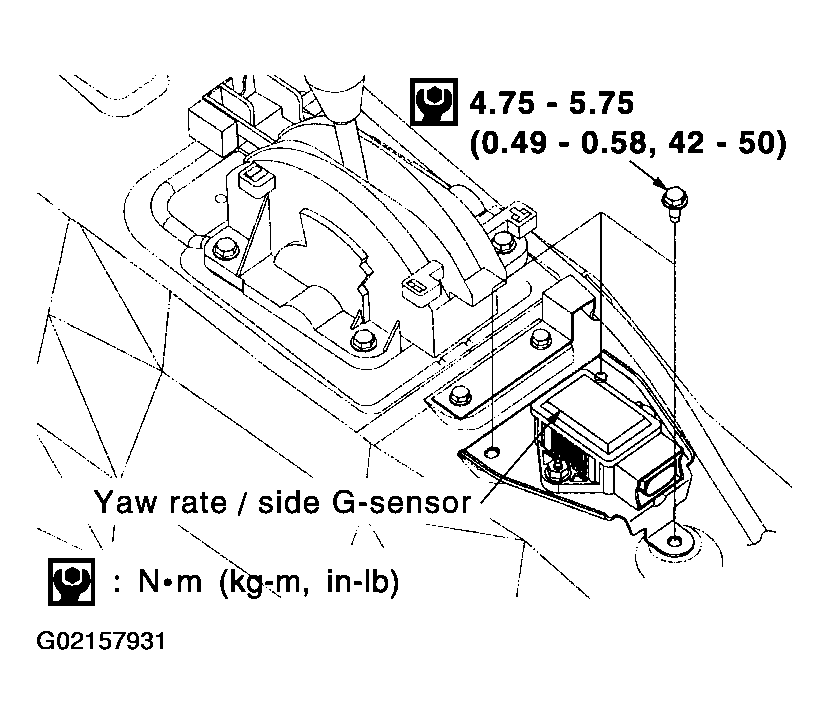

    Fig 1: Removing Yaw Rate/Side G-Sensor - A/T Model
    G02157931Courtesy of NISSAN MOTOR CO., U.S.A.
