Condenser Fan: Disassembly

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE COOLING FAN COMPUTER

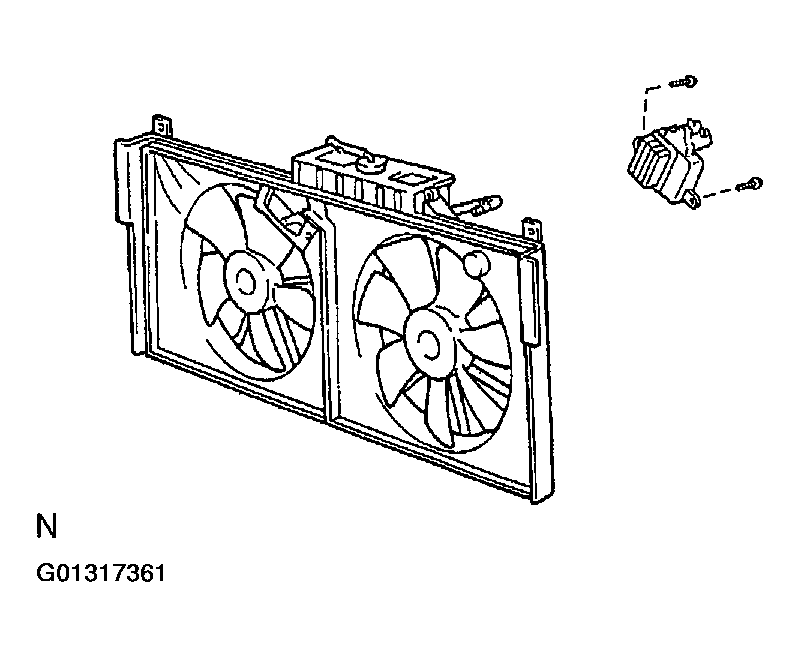

1. Disconnect the connectors.
2. Remove the 3 screws and computer.

  Fig 1: Removing Cooling Fan Computer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

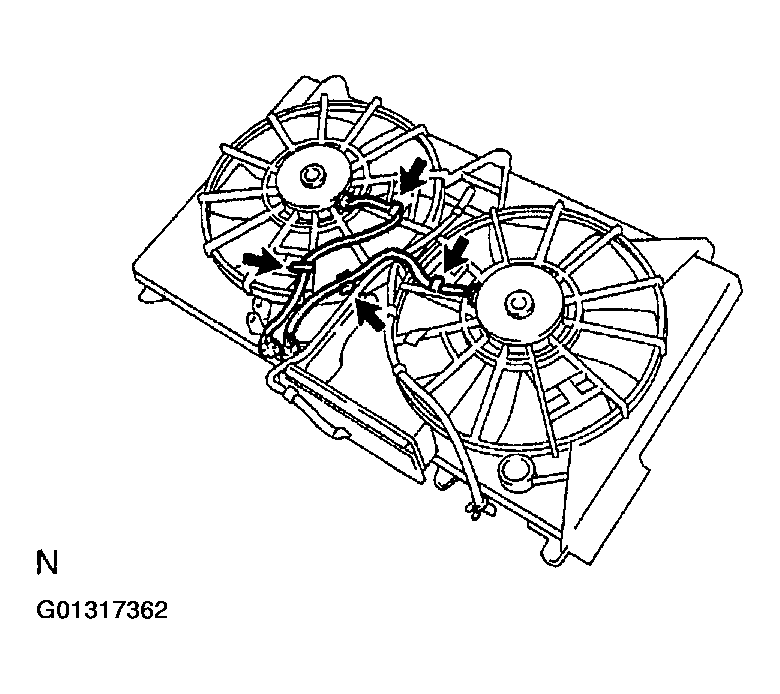

3. Disconnect the connectors.

  Fig 2: Disconnecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

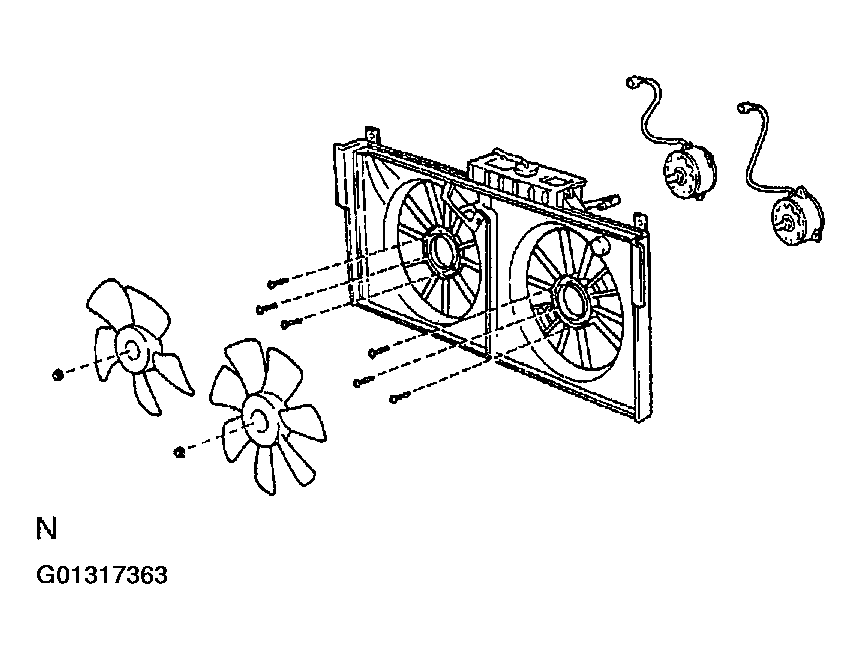

REMOVE FAN AND MOTOR
1. Remove the 2 nuts and 2 fans.
2. Remove the 6 screws and 2 motors.

  Fig 3: Removing Fans & Motors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
