Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

With ignition switch OFF, connect CONSULT-II to data link connector on vehicle, and turn ON ignition switch.
Touch "START".

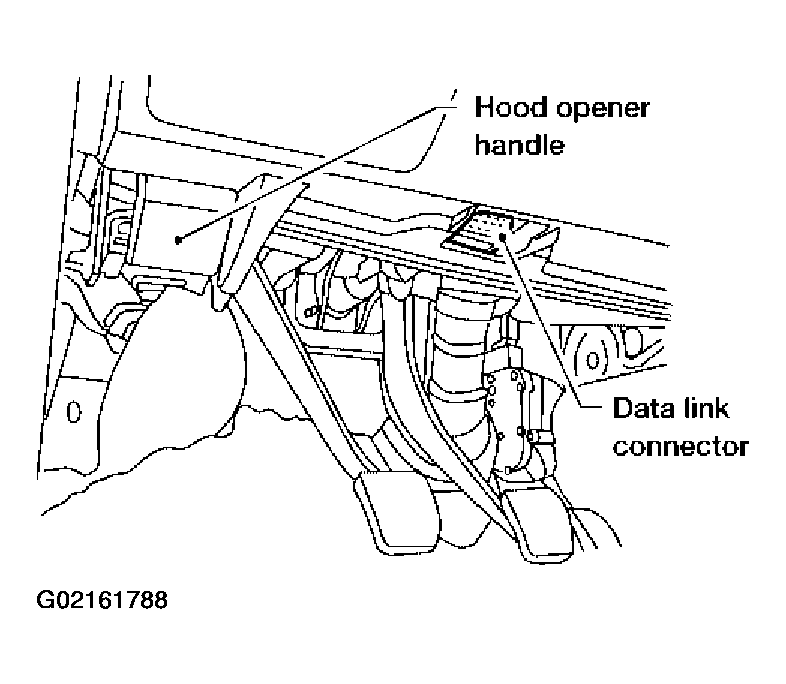

Fig 1: Locating Data Link Connector And Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.

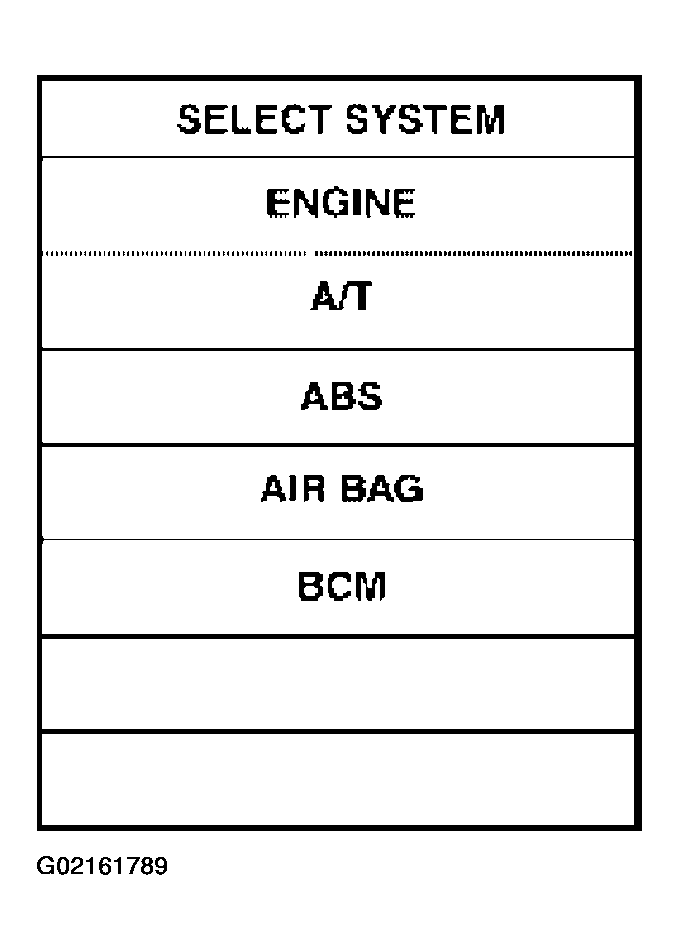

Fig 2: Displaying Select System Mode On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select item to be diagnosed on "SELECT TEST ITEM" screen.

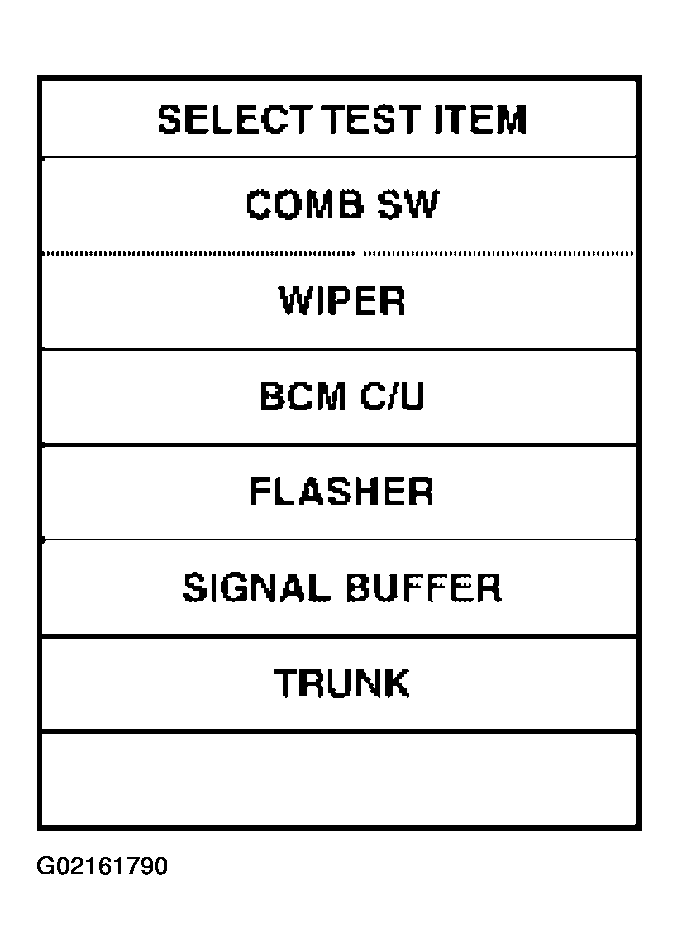

Fig 3: Displaying Select Test Item Mode On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
