Operation procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "DOOR LOCK" on the "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.

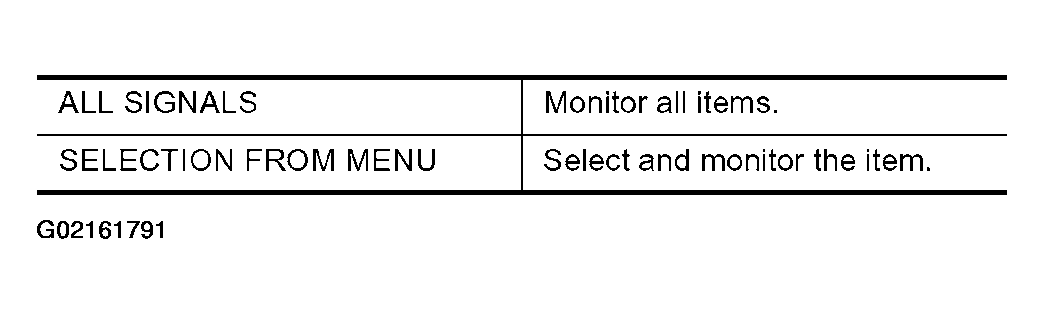

    Fig 1: Displaying Selection From Menu On Data Monitor Screen
    G02161791Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. If "SELECTION FROM MENU" is selected, touch the desired monitor item. If "ALL SIGNALS" is selected, all the items are monitored.
  6. During monitoring, touching "COPY" can start recording the monitor item status.
