Section 770 (Power Door Lock System)
>>
Power Door Lock System
>>
System Description
>>
Key-Trap Preventive Function
>>
Time chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Time chart
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

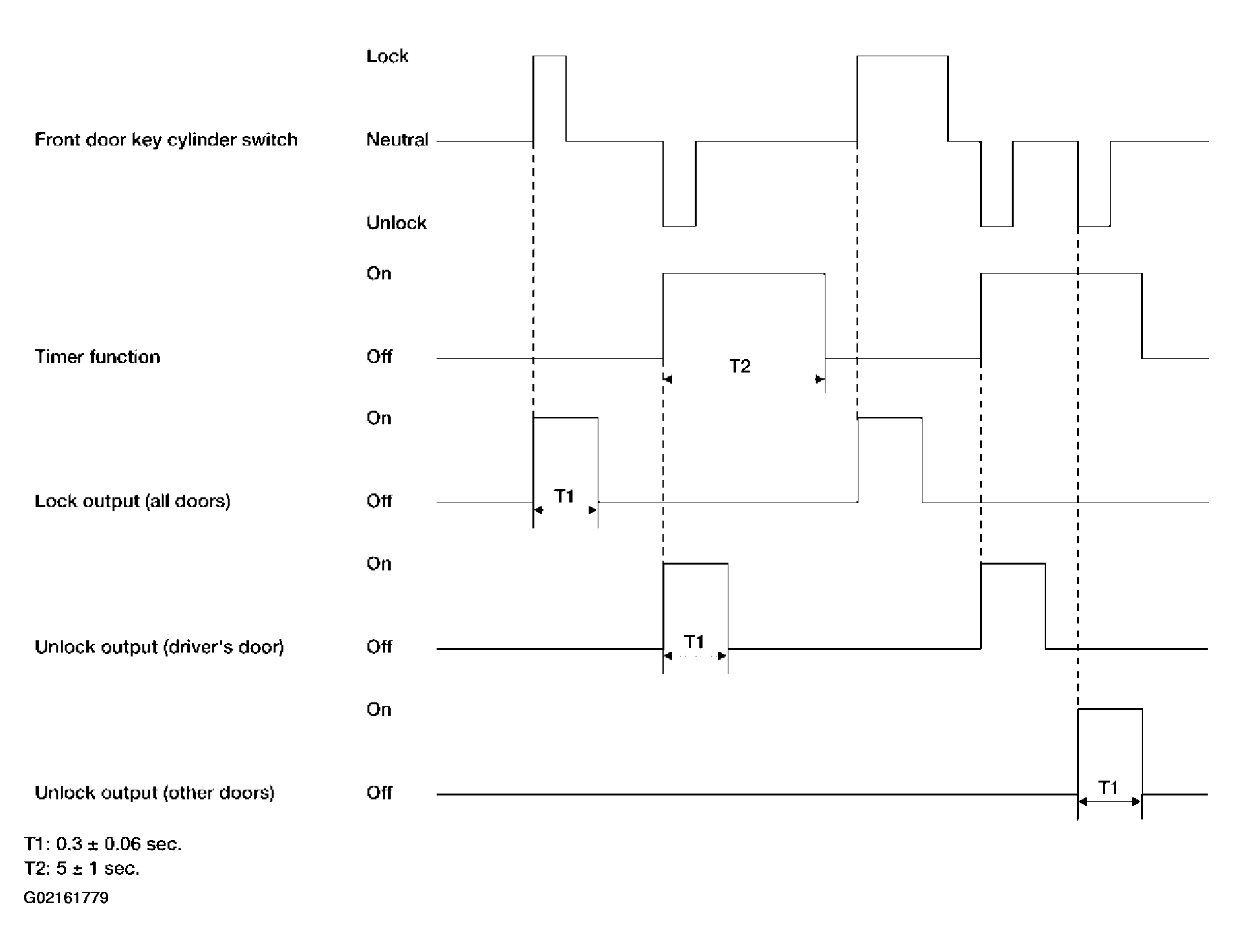

Fig 1: Key-Trap Preventive Function Time Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
