Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

For details, refer to the separate CONSULT- II OPERATION MANUAL.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn the ignition switch to OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle.
Turn ignition switch ON.
Touch START on the display.
Touch ALL MODE 4WD on the display.
CAUTION: "ALL MODE 4WD may not be displayed on the system selection screen in the following case: When START was touched just after engine is started or ignition switch is turned to ON. In this case, repeat procedure from step 2.

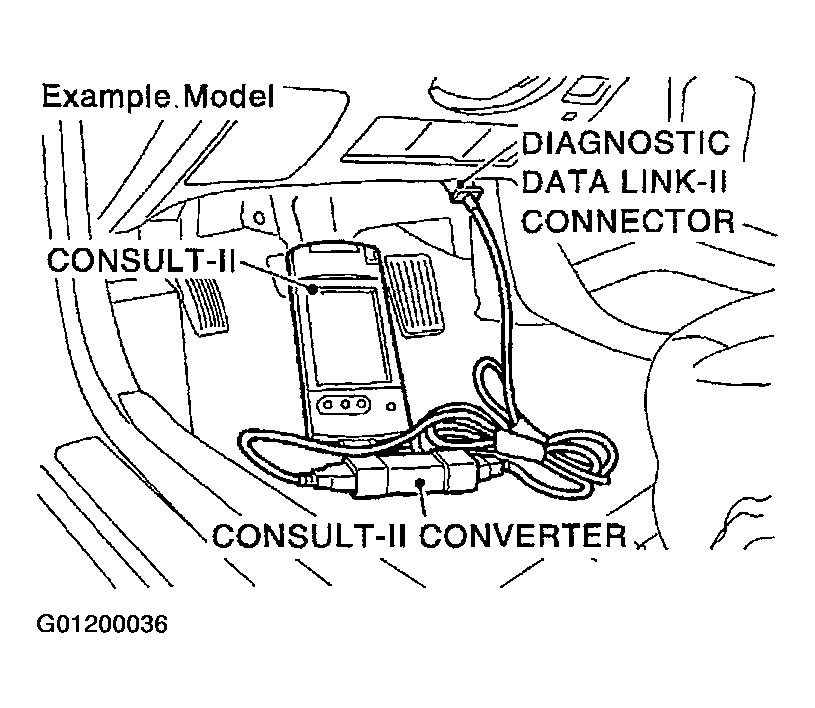

Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector On Vehicle
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch DATA MONITOR.
Return to monitor item selection screen. Touch any of ECU INPUT SIGNALS, MAIN SIGNALS, CAN DIG SUPPORT MONITOR or SELECTION FROM MENU.

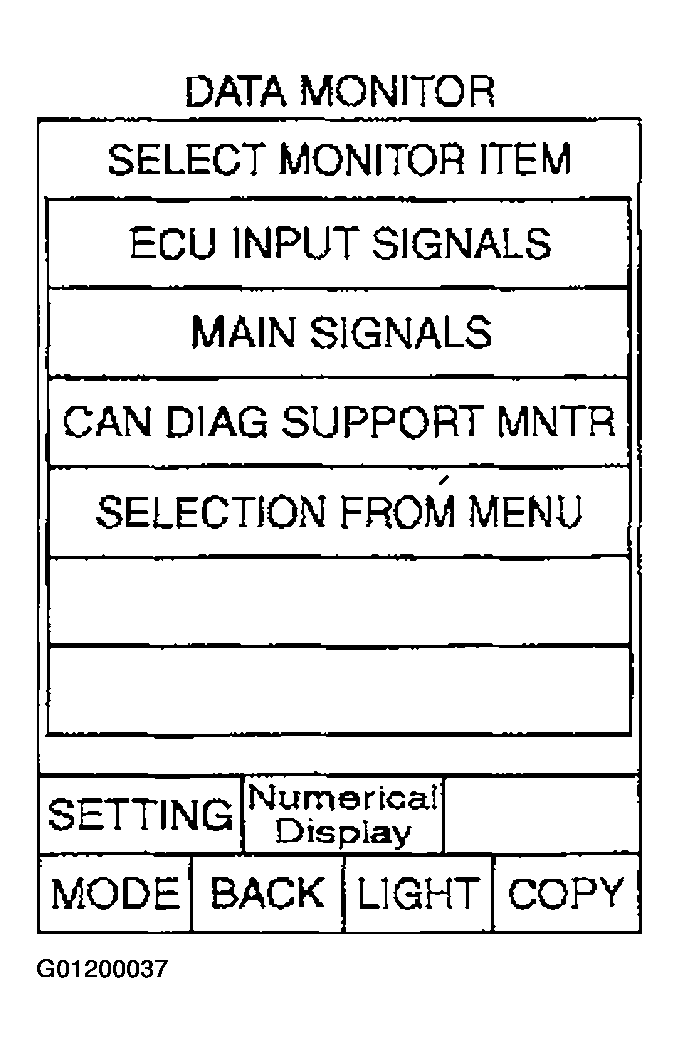

Fig 2: CONSULT-II Select Monitor Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to the following Data monitor item chart.
Touch MONITOR START.
Screen of data monitor is displayed.
