Section 962 (LEXUS Park Assist System): Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT ULTRASONIC SENSOR

CONNECTOR TERMINALS SPECIFIED CONDITION

Tester connection	Condition	Specified condition
1 - 2	Constant	10kΩ +/- 2kΩ

If resistance is not as specified, replace ultrasonic sensor.

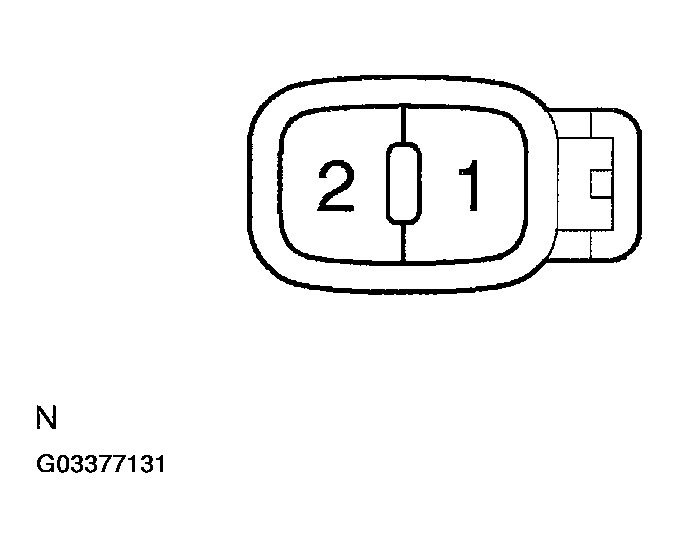

Fig 1: Identifying Ultrasonic Sensor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT ULTRASONIC SENSOR SWITCH CONTINUITY

CONNECTOR TERMINALS SPECIFIED CONDITION

Switch position	Condition	Specified condition
ON	3 - 4	No continuity
OFF	3 - 4	Continuity

If resistance is not as specified, replace the switch.

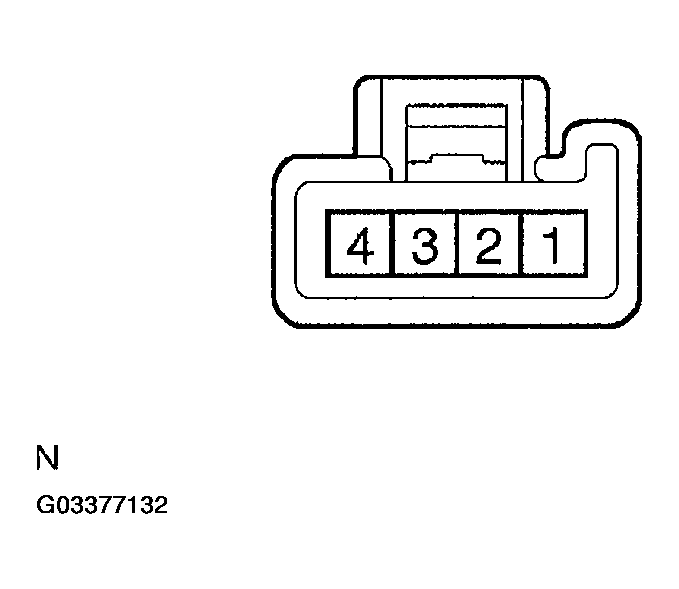

Fig 2: Identifying Ultrasonic Sensor Switch Connector Terminals

INSPECT ULTRASONIC SENSOR

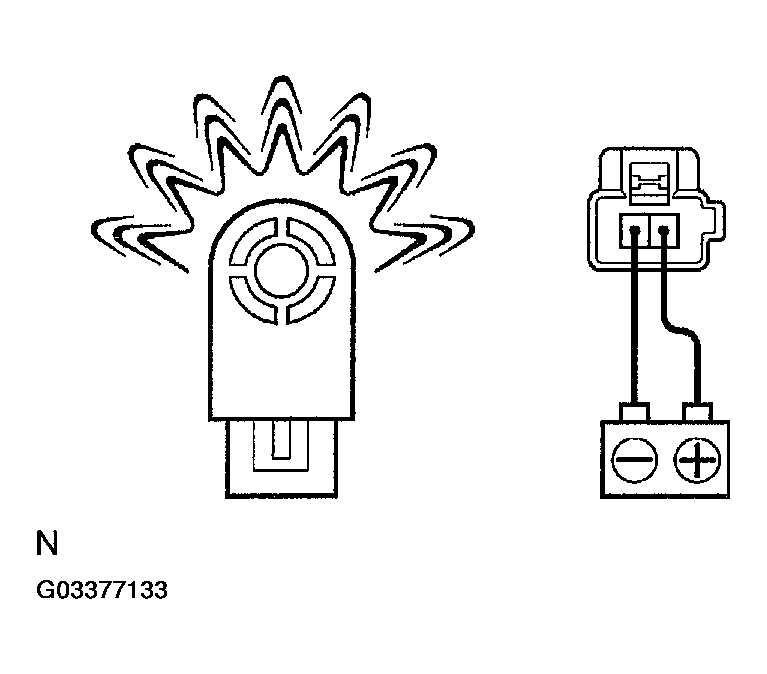

Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the buzzer sounds.

Fig 3: Inspecting Ultrasonic Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
