Sliding Sensor Circuit Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

Check operation with "SLIDE PULSE" on the DATA MONITOR to make sure the pulse changes.

CHECK FUNCTION CHART

Monitor item [OPERATION or UNIT]		Contents
SLIDE PULSE	-	The seat sliding position (pulse) judged from the sliding sensor signal is displayed

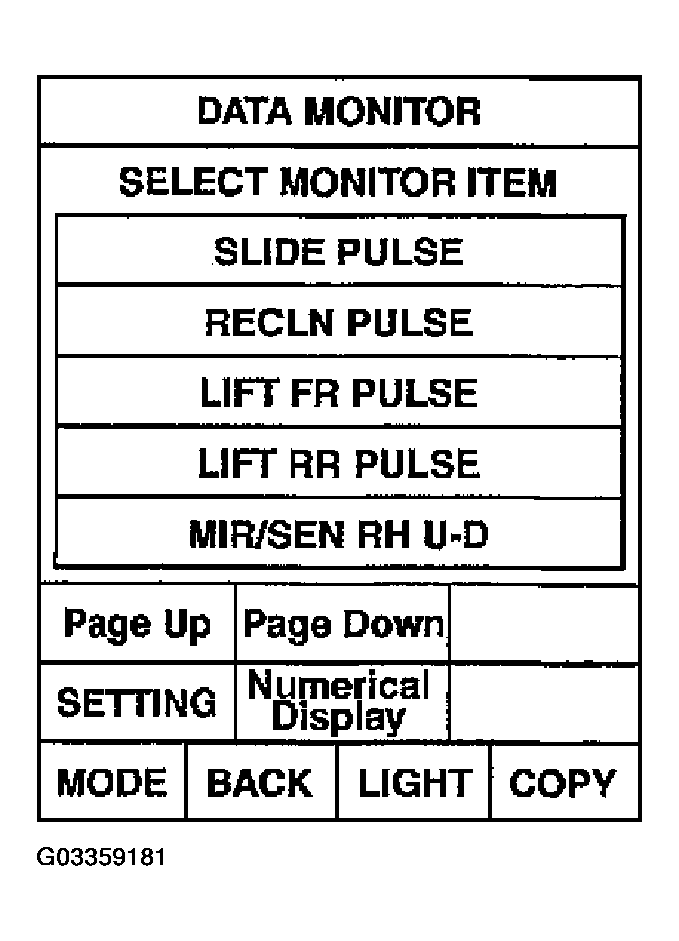

Fig 1: Displaying "SLIDE PULSE" on DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch OFF.
Check signal between driver seat control unit connector and ground, with oscilloscope.

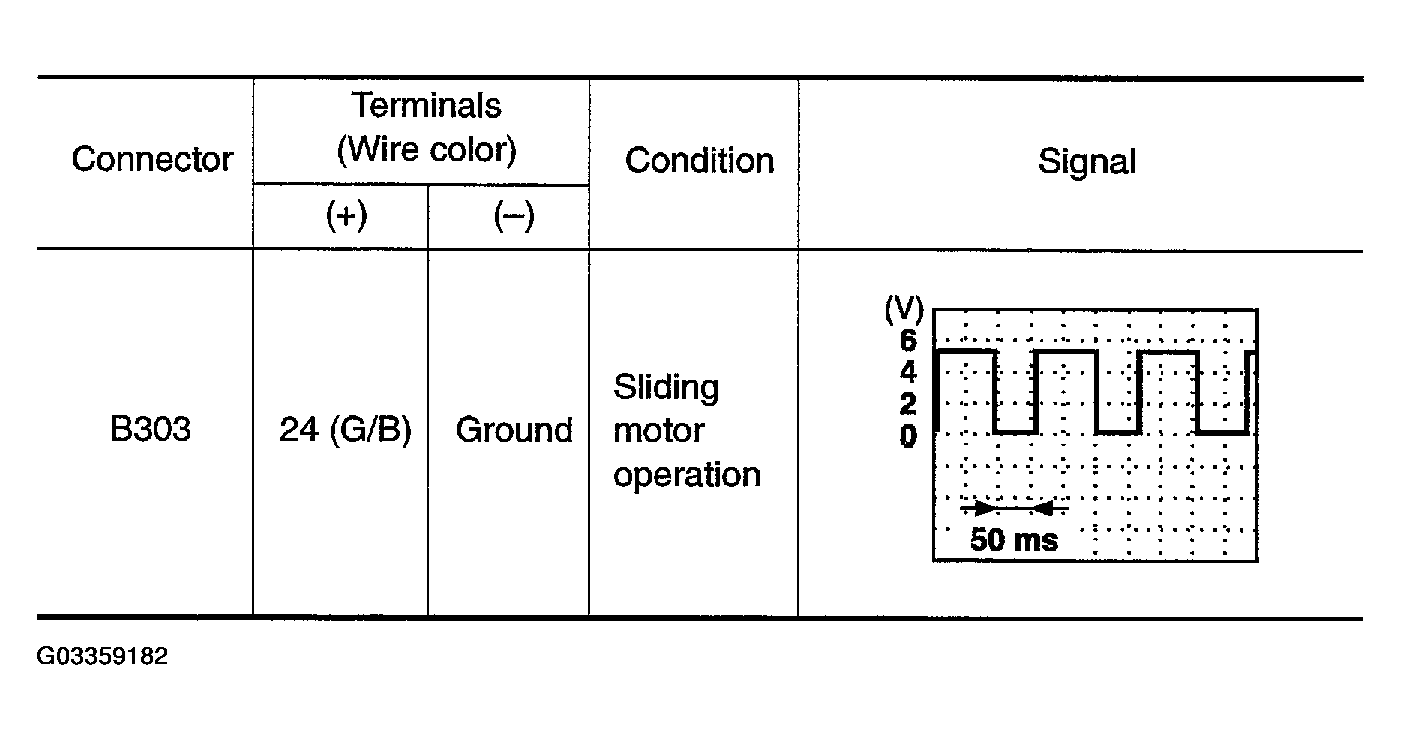

Fig 2: Oscilloscope Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

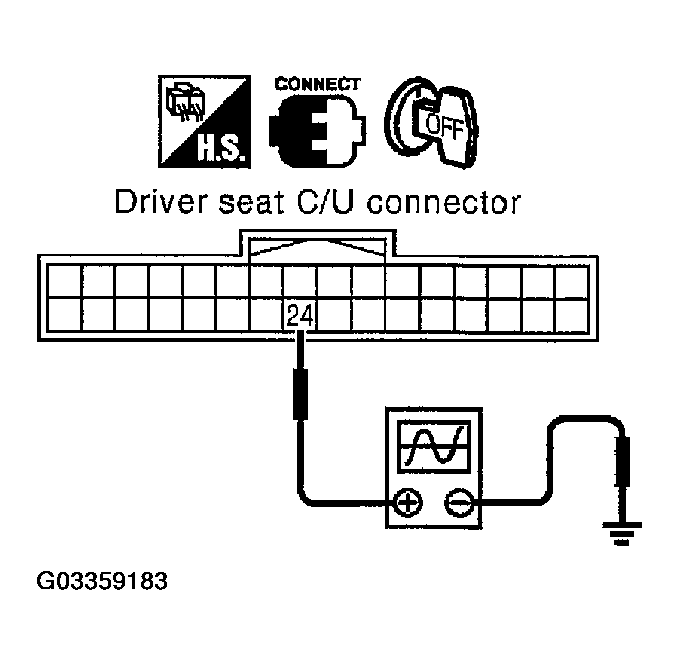

Fig 3: Checking Signal Between Driver Seat Control Unit Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Sliding sensor circuit is OK.
NG : GO TO 2.

CHECK SLIDING SENSOR CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and sliding motor connector.
2. Check continuity between driver seat control unit connector B303 terminals 24 (G/B), 31 (R/W) and sliding motor B307 terminals 24 (G/B), 31A (R/W).
  1. 24 (G/B) - 24 (G/B): Continuity should exist.
  2. 31 (R/W) - 31A (R/W): Continuity should exist.
3. Check continuity between driver seat control unit B303 terminals 24 (G/B), 31 (R/W) and ground.
  1. 24 (G/B) - Ground: Continuity should not exist.
  2. 31 (R/W) - Ground: Continuity should not exist.

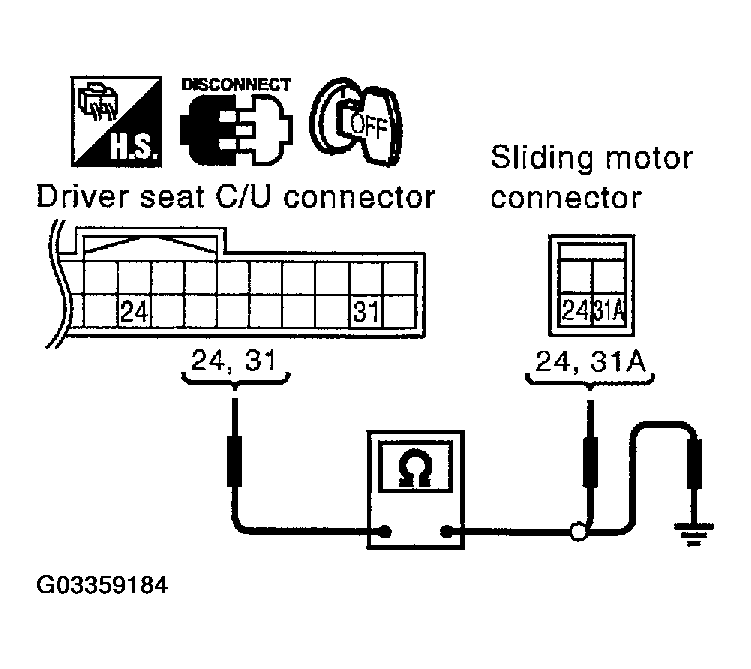

  Fig 4: Checking Continuity Between Driver Seat Control Unit Connector B303 Terminals 24, 31 And Sliding Motor B307 Terminals 24, 31A, And Between Connector B303 Terminals 24, 31 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Replace sliding motor.
2. NG : Repair or replace harness between driver seat control unit and sliding motor.
