Function Of Clutch And Brake

WARNING: This page is about a different variant/trim than selected.
NOTE: For Identification of Components, see Figure.

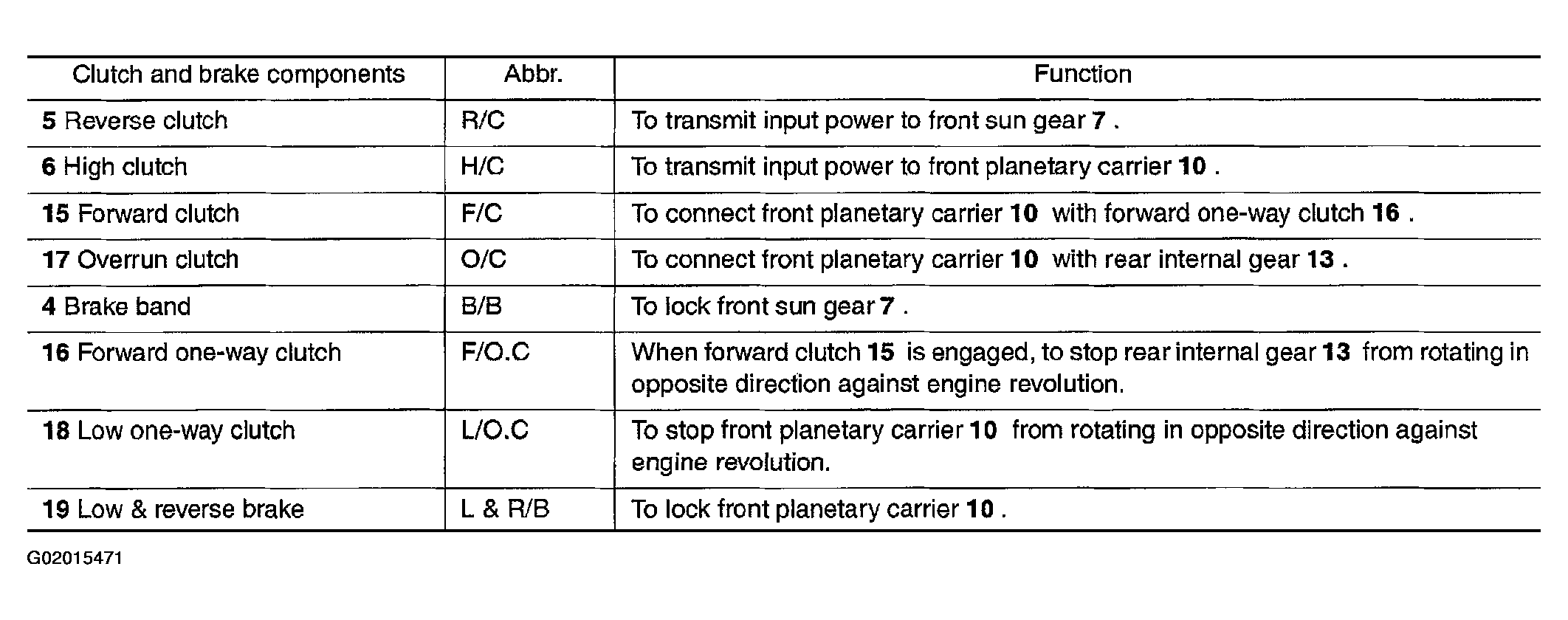

Fig 1: Identifying Clutch & Brake Functions
G02015471Courtesy of NISSAN MOTOR CO., U.S.A.
