Cross-Sectional View: Notes

WARNING: This page is about a different variant/trim than selected.

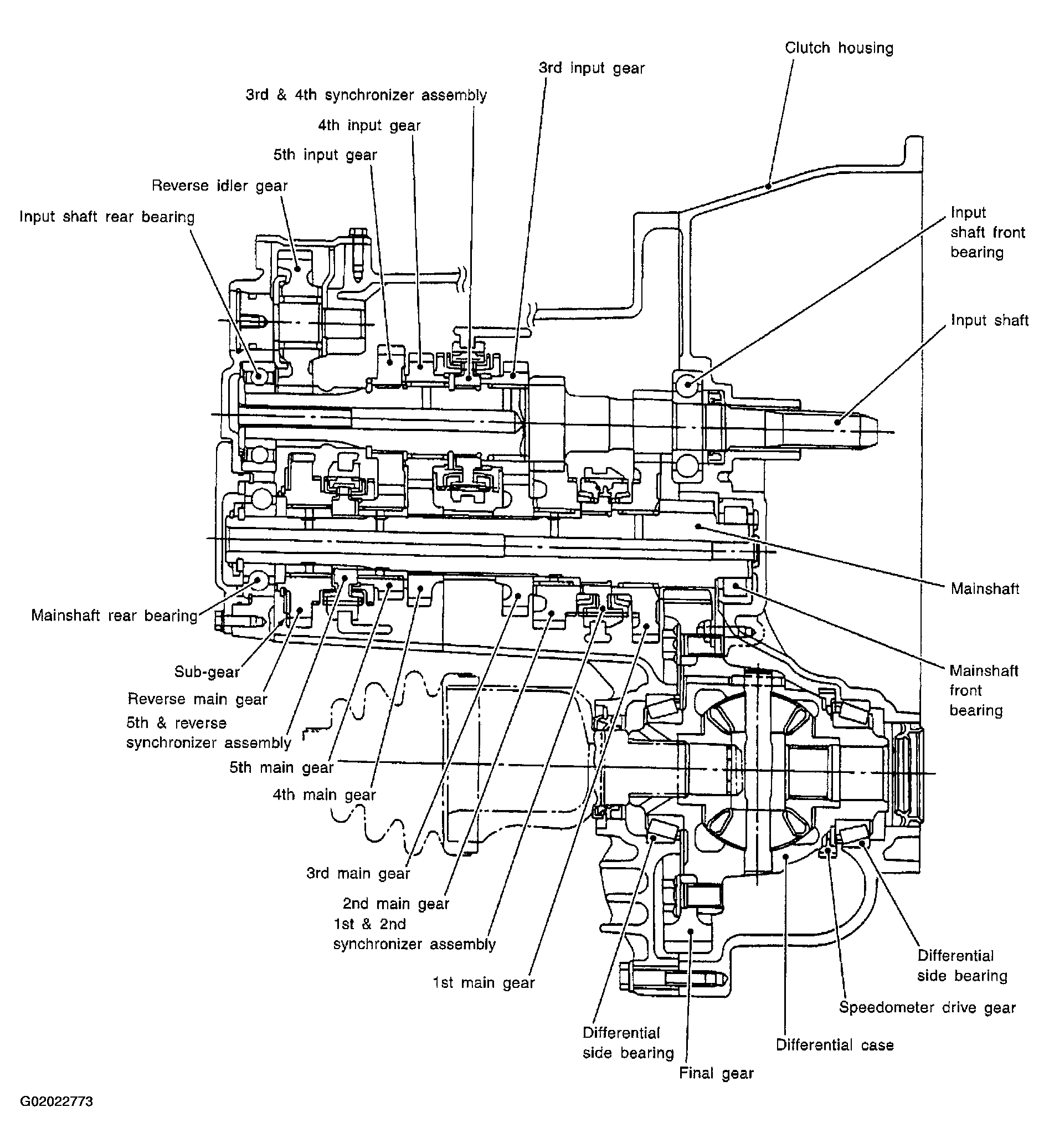

Fig 1: Cross-Sectional View Of RS5F70A Transaxle
G02022773Courtesy of NISSAN MOTOR CO., U.S.A.
