MAINSHAFT Adjusting Shim

WARNING: This page is about a different variant/trim than selected.

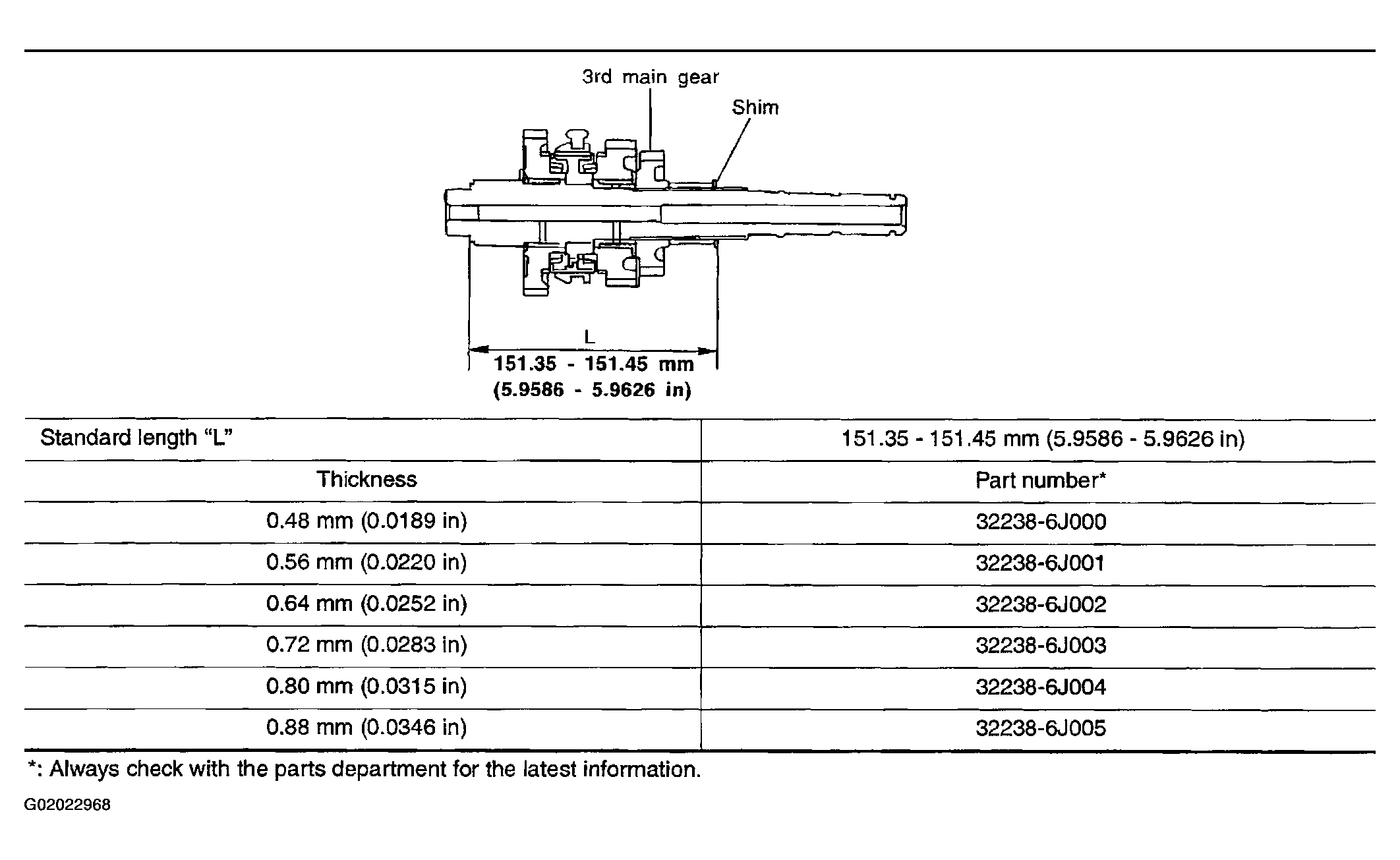

Fig 1: Mainshaft Adjusting Shim Specifications
G02022968Courtesy of NISSAN MOTOR CO., U.S.A.
