Case Components

WARNING: This page is about a different variant/trim than selected.

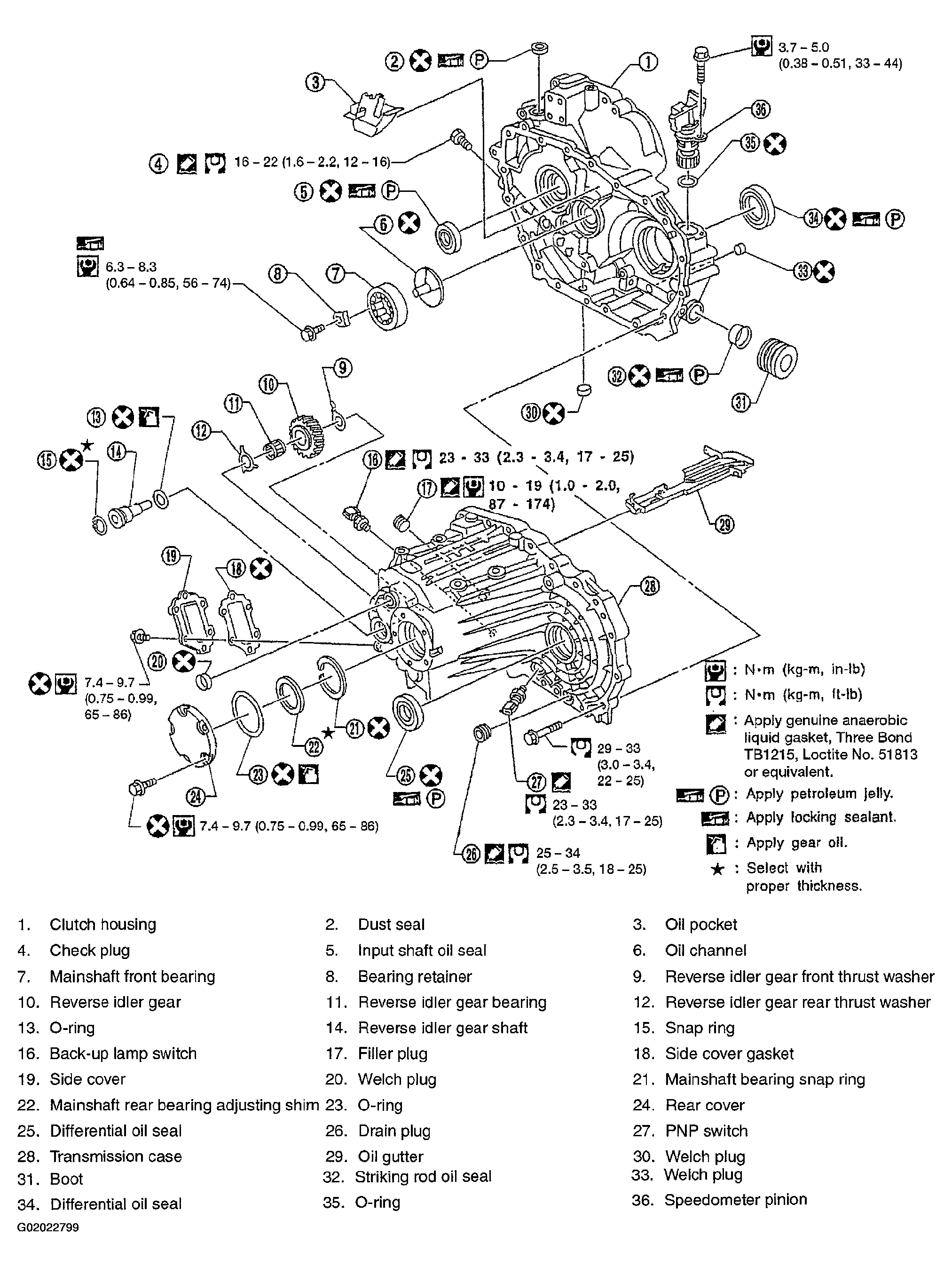

Fig 1: Identifying Of Case Components
G02022799Courtesy of NISSAN MOTOR CO., U.S.A.
