Final Drive Components

WARNING: This page is about a different variant/trim than selected.

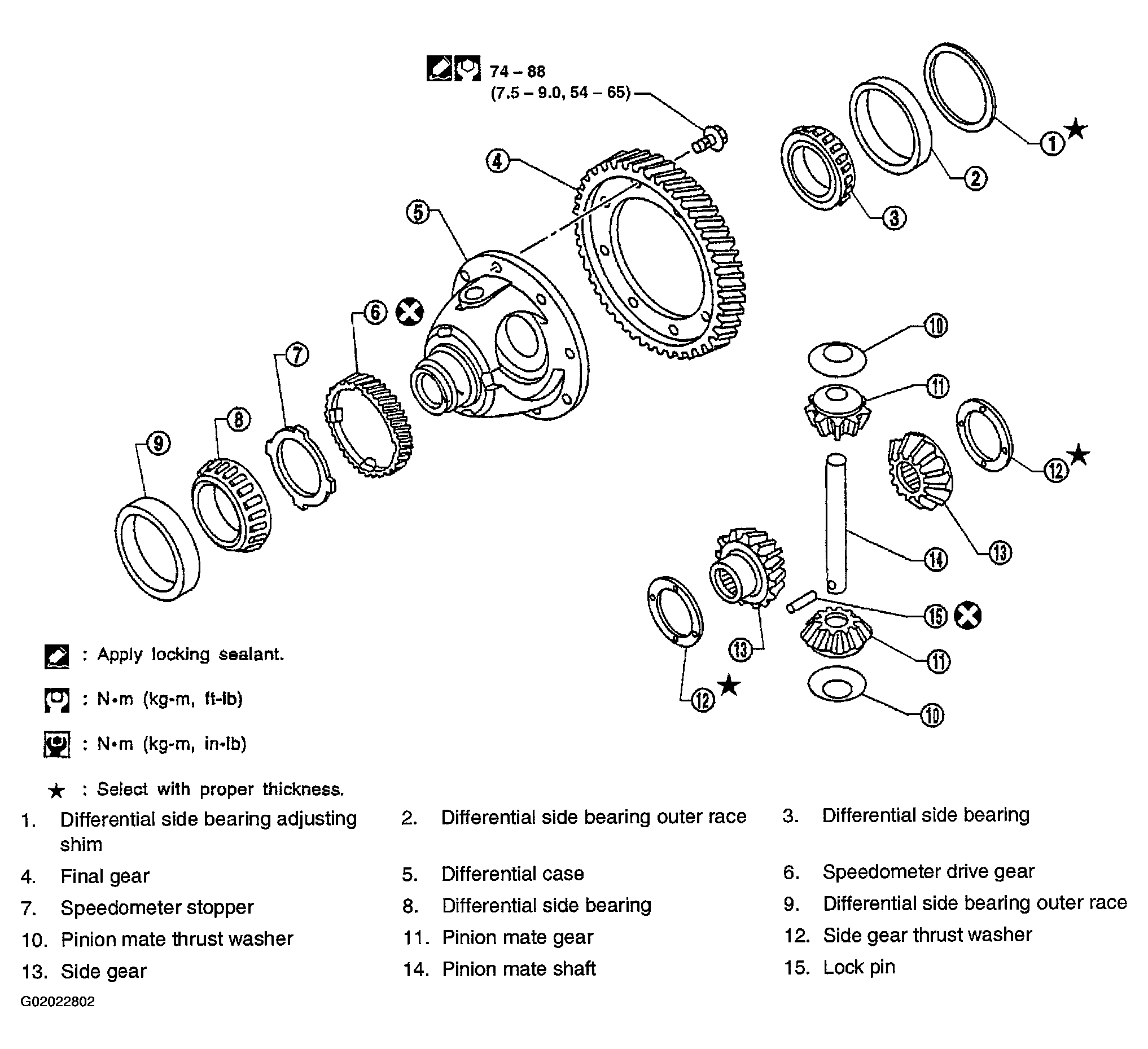

Fig 1: Identifying Of Final Drive Components
G02022802Courtesy of NISSAN MOTOR CO., U.S.A.
