Adjustment (2): Notes

When any parts listed below are replaced, adjust total end play and reverse clutch end play.

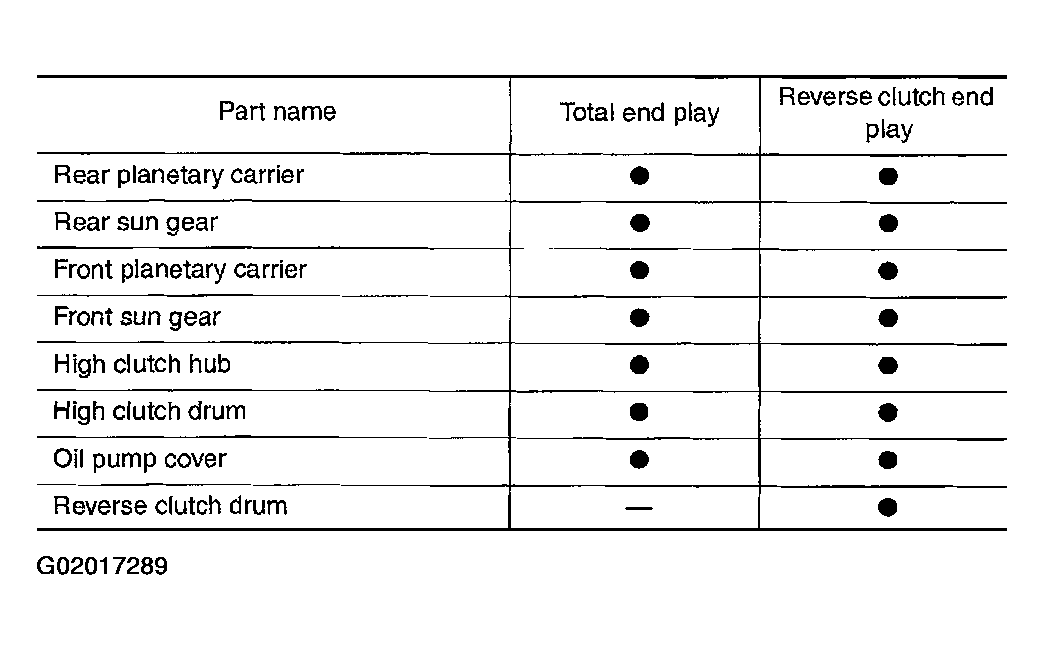

Fig 1: Parts End Play Adjustment Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

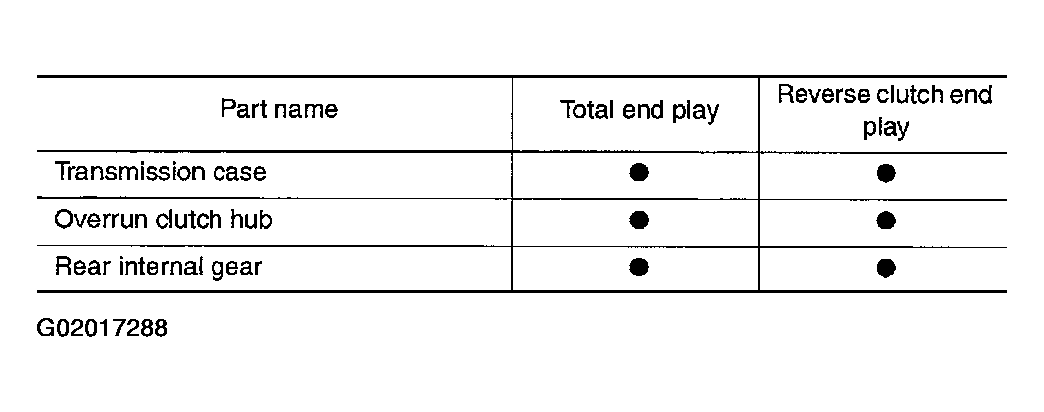

Fig 2: Parts End Play Adjustment Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
