Band Servo Piston Assembly: Components

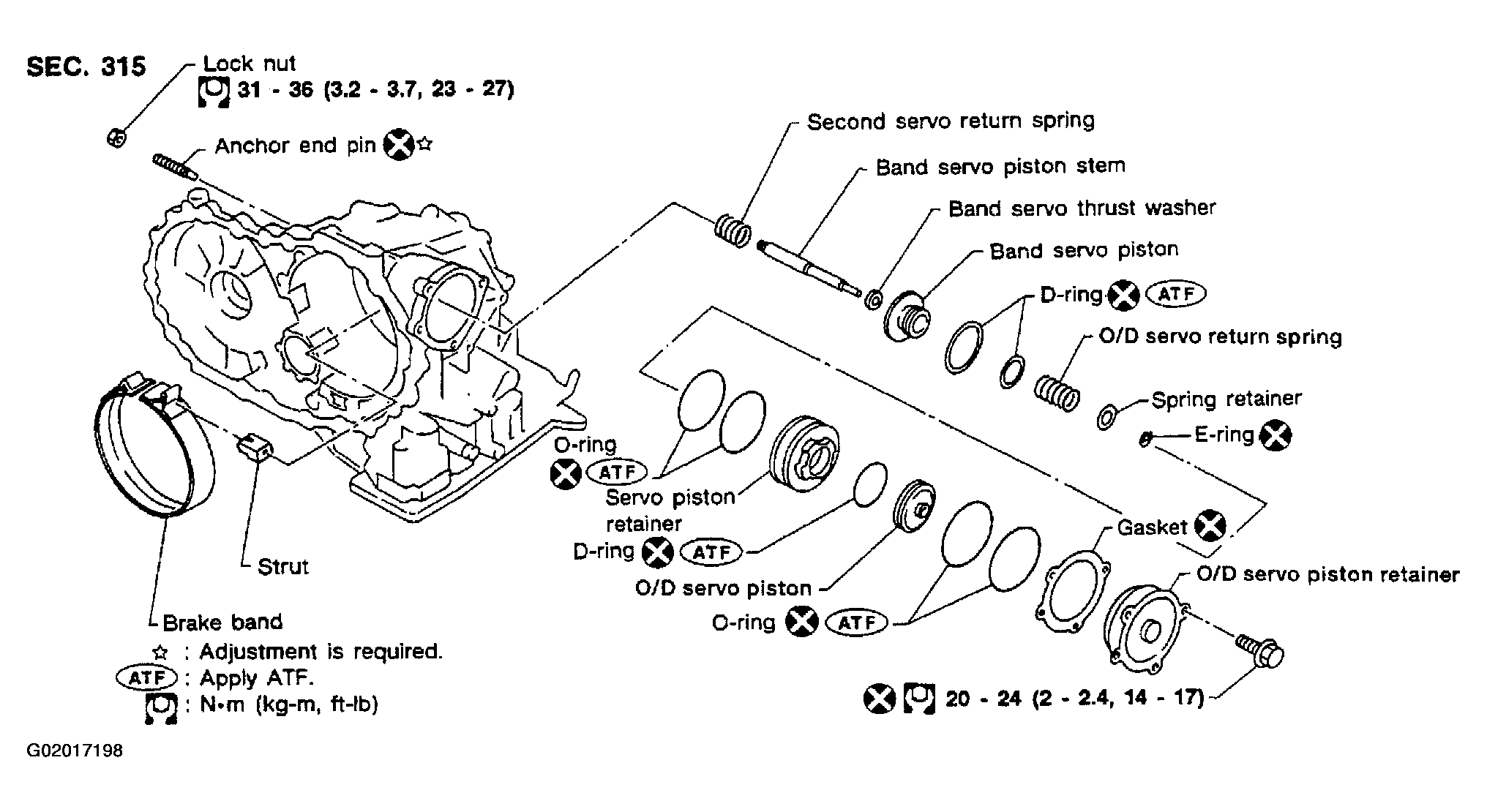

Fig 1: Exploded View Of Band Servo Piston Assembly Components And Torque Specifications
G02017198Courtesy of NISSAN MOTOR CO., U.S.A.
