Terminals and Reference Value for Unified Meter and A/C Amp.
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

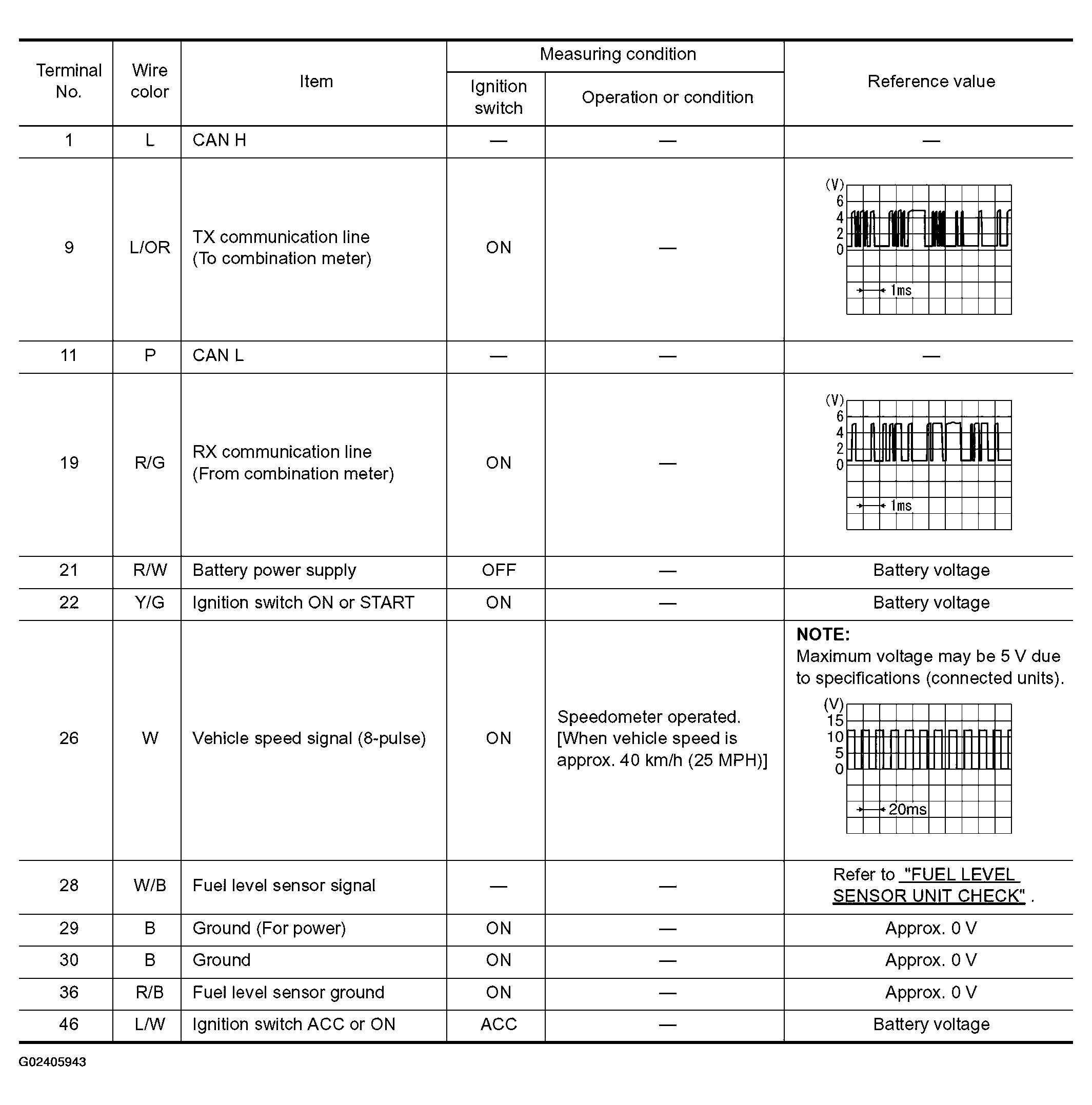

Fig 1: Combination Meter Terminals & Reference Value Chart (2 Of 2)
