Removal and Installation of Daytime Light Control Unit

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the daytime light control unit mounting bolt.
  2. Disconnect connectors and remove from vehicle.

Installation is in the reverse order of removal.

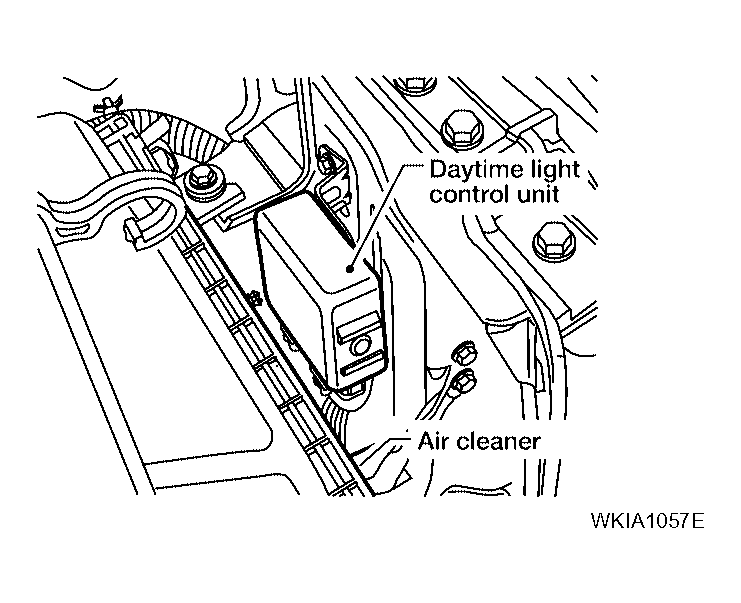

Fig 1: Identifying Daytime Light Control Unit Mounting Bolt
G04200787Courtesy of NISSAN MOTOR CO., U.S.A.
