Consult-II Reference Value In Data Monitor Mode

WARNING: This page is about a different variant/trim than selected.

Remarks: Specification data are reference values.

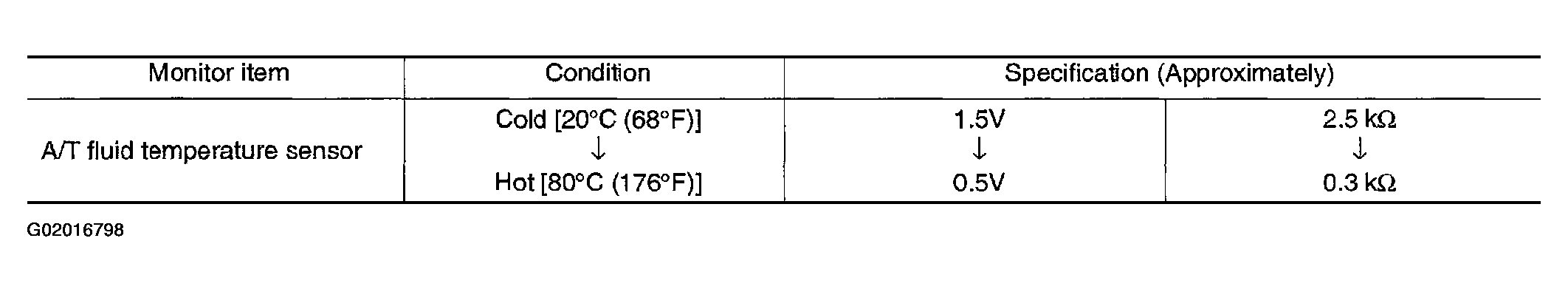

Fig 1: CONSULT-II Reference Value Chart (Data Monitor Mode)
G02016798Courtesy of NISSAN MOTOR CO., U.S.A.
