Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE: If DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

With CONSULT-II

Turn ignition switch ON and select DATA MONITOR mode for A/T with CONSULT-II.

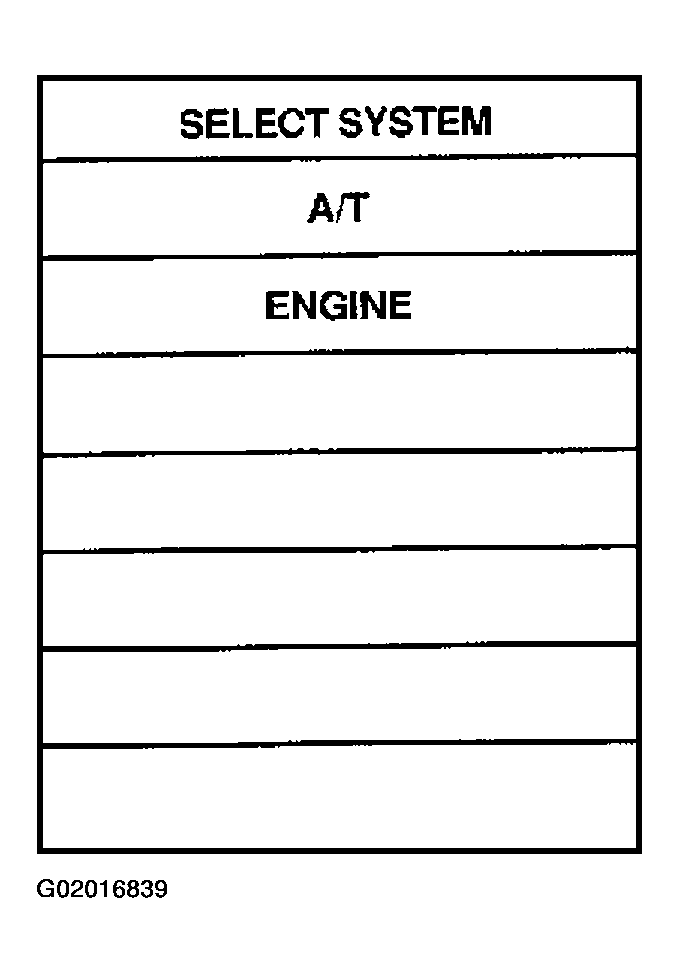

Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

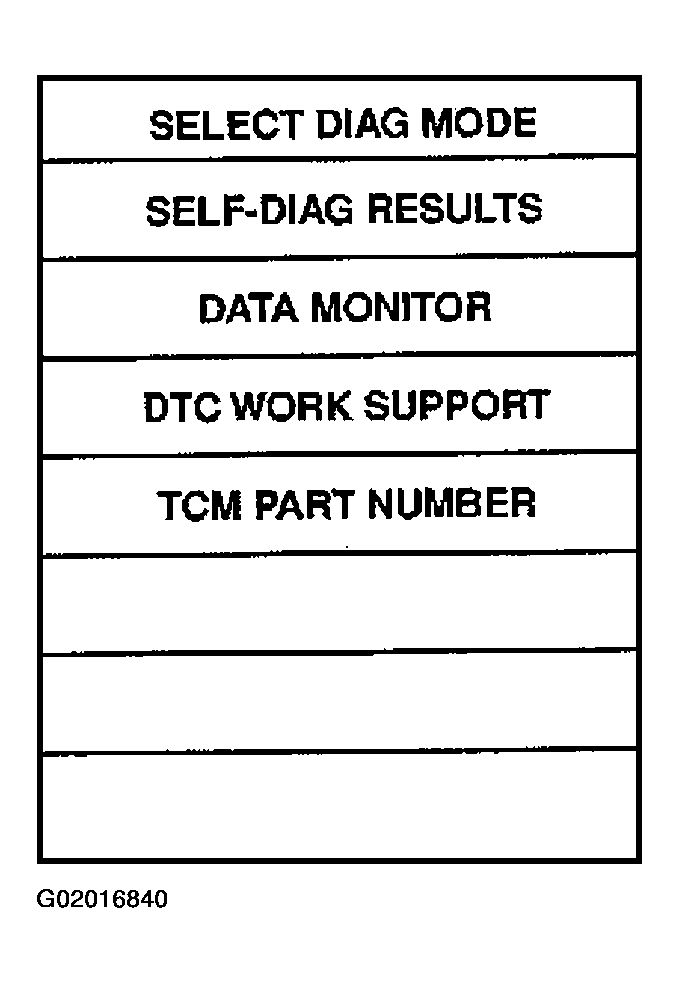

Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Run engine for at least 2 seconds at idle speed.
