With Consult-II

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch ON and select DATA MONITOR mode for A/T with CONSULT-II.

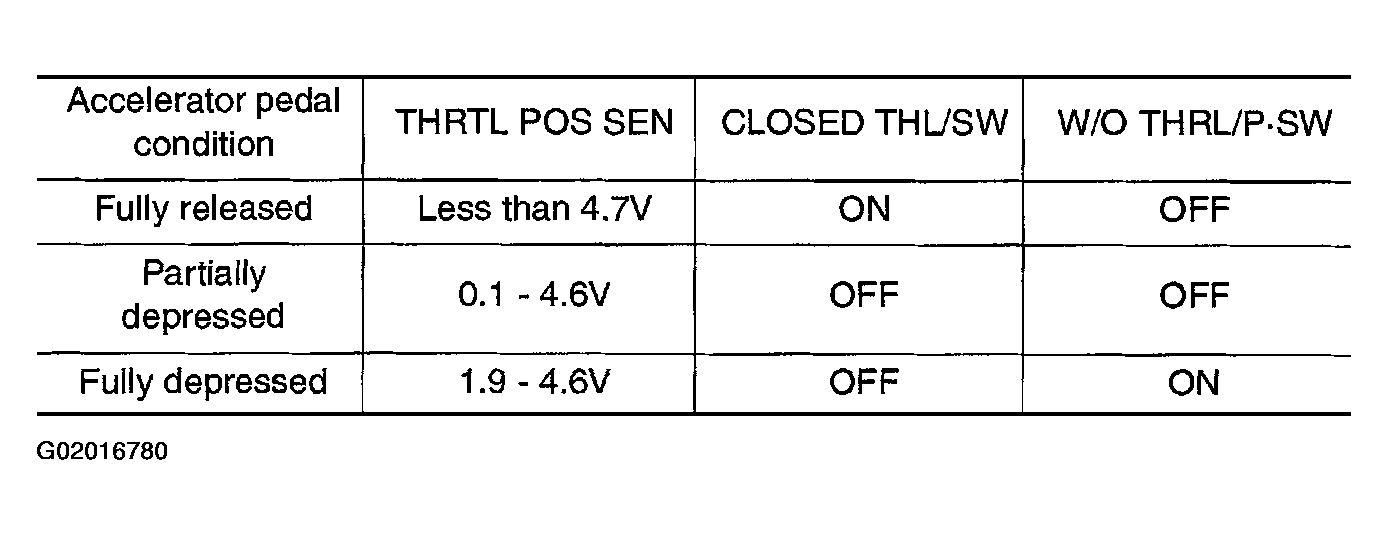

Fig 1: Data Monitor Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

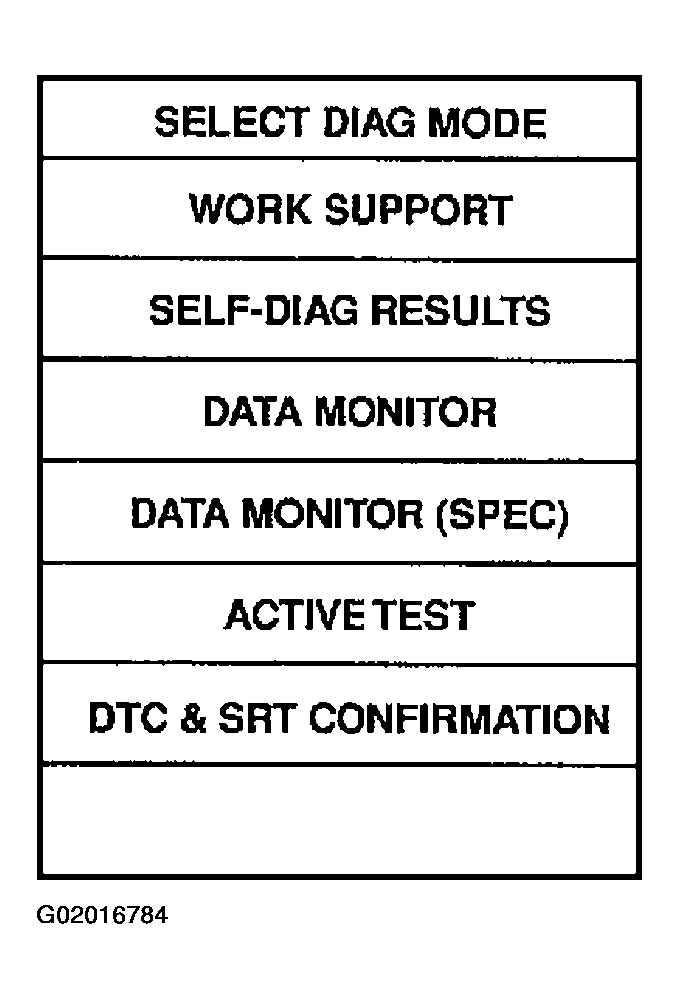

Fig 2: DTC Confirmation Procedure With CONSULT -II (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

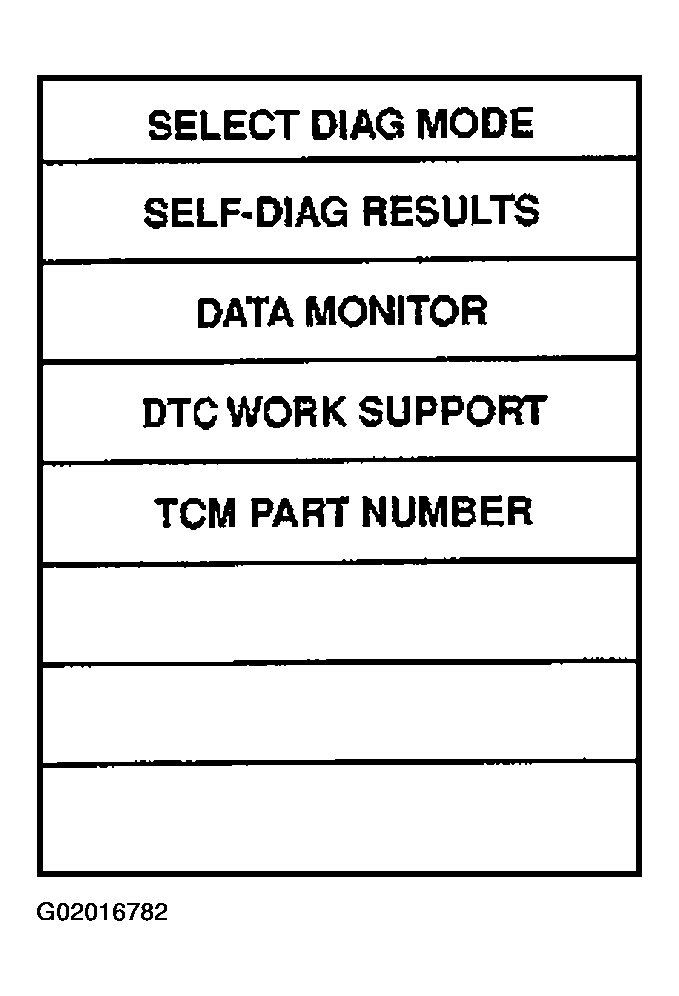

Fig 3: DTC Confirmation Procedure With CONSULT -II (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is NG, go to DIAGNOSTIC PROCEDURE .

If the check result is OK, go to following step.
Turn ignition switch ON and select DATA MONITOR mode for ENGINE with CONSULT-II.

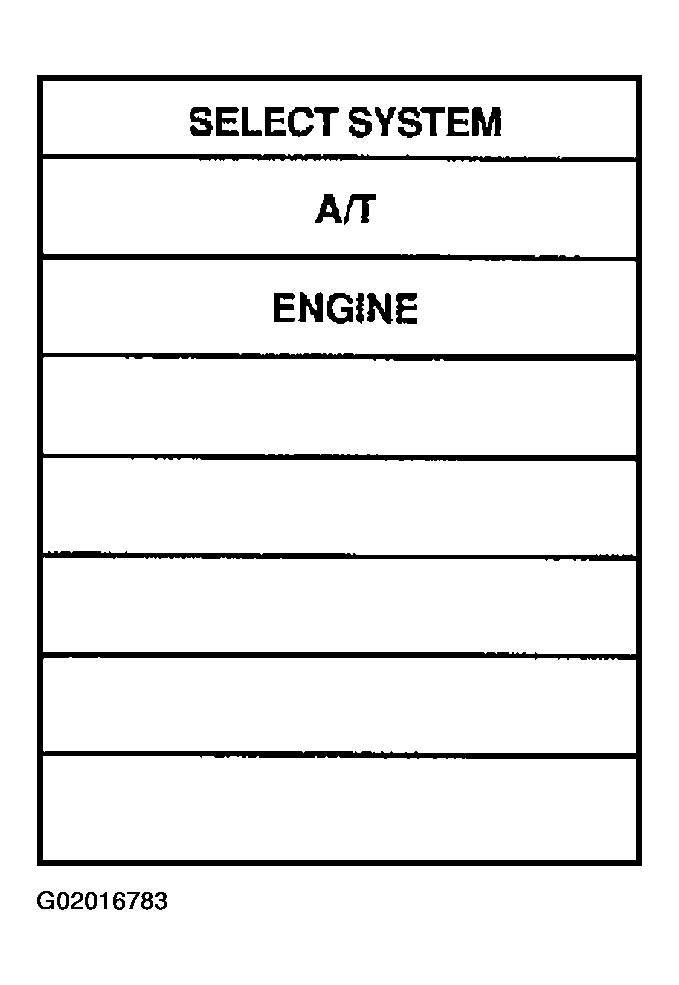

Fig 4: DTC Confirmation Procedure With CONSULT -II (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

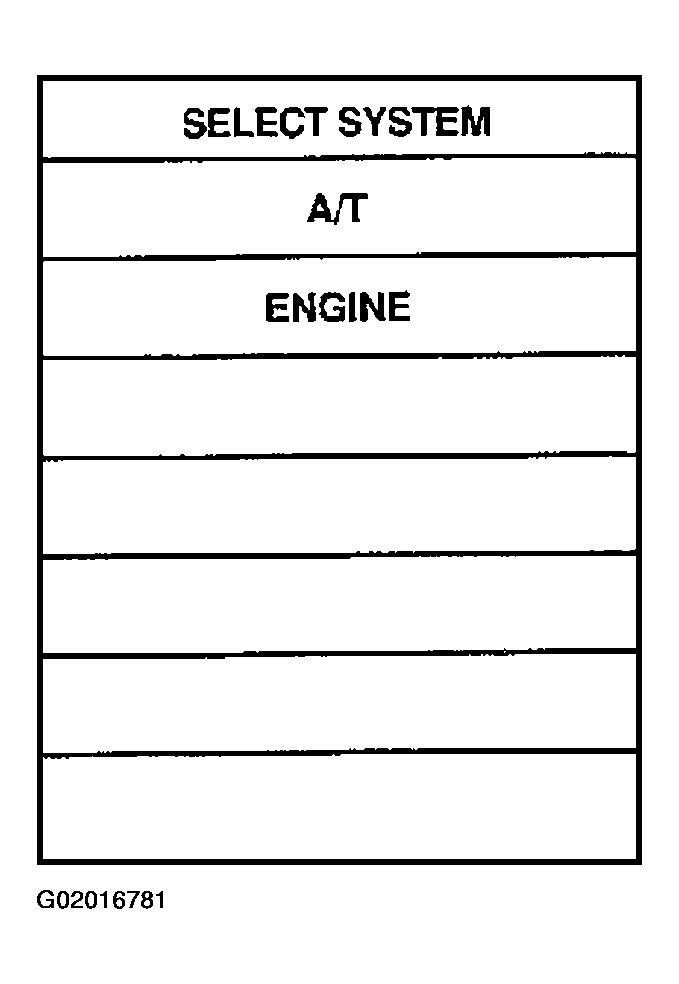

Fig 5: DTC Confirmation Procedure With CONSULT -II (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: Approximately 3V or less

Selector lever: D position (O/D ON)

If the check result is NG, go to DIAGNOSTIC PROCEDURE .

If the check result is OK, go to following step.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more

Accelerator pedal: Wide open throttle

Selector lever: D position (O/D ON)
