Intake Sensor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting intake sensor connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table below.

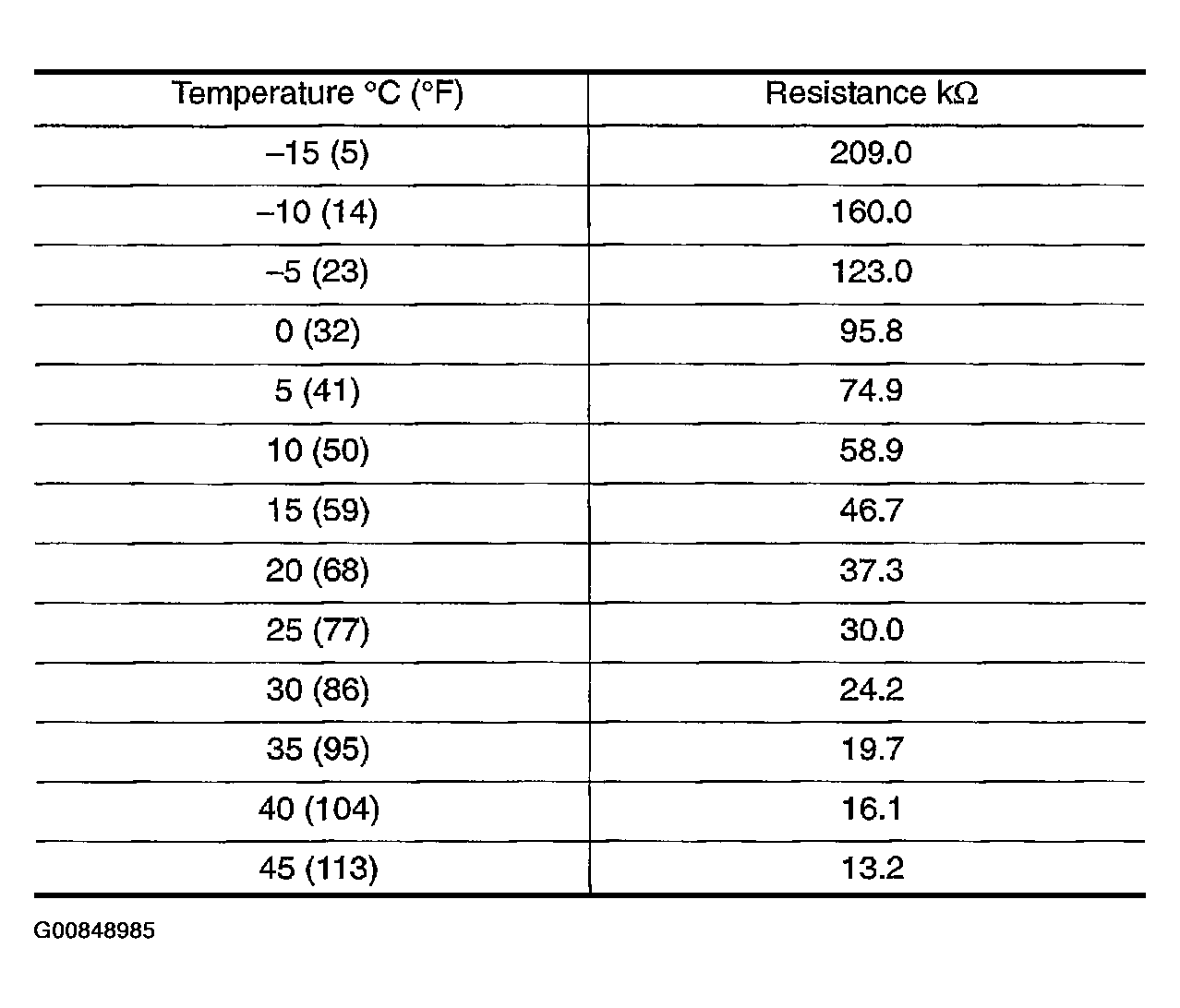

Fig 1: Intake Sensor Temperature & Resistance Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace intake sensor

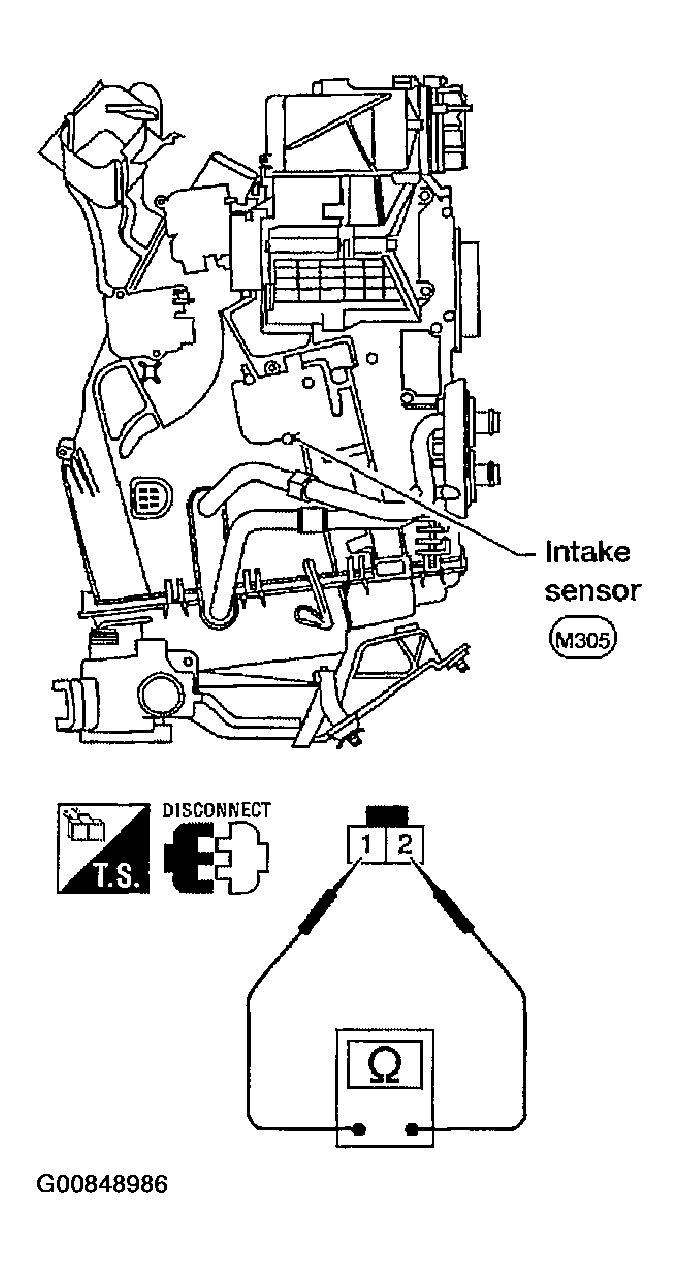

Fig 2: Measuring Resistance Between Intake Sensor Terminals 1 And 2 At Sensor Harness Side

Courtesy of NISSAN MOTOR CO., U.S.A.
