Terminal and Reference Value for Front Power Window Switch (Passenger Side) / With Front Power Window Anti-pinch System

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

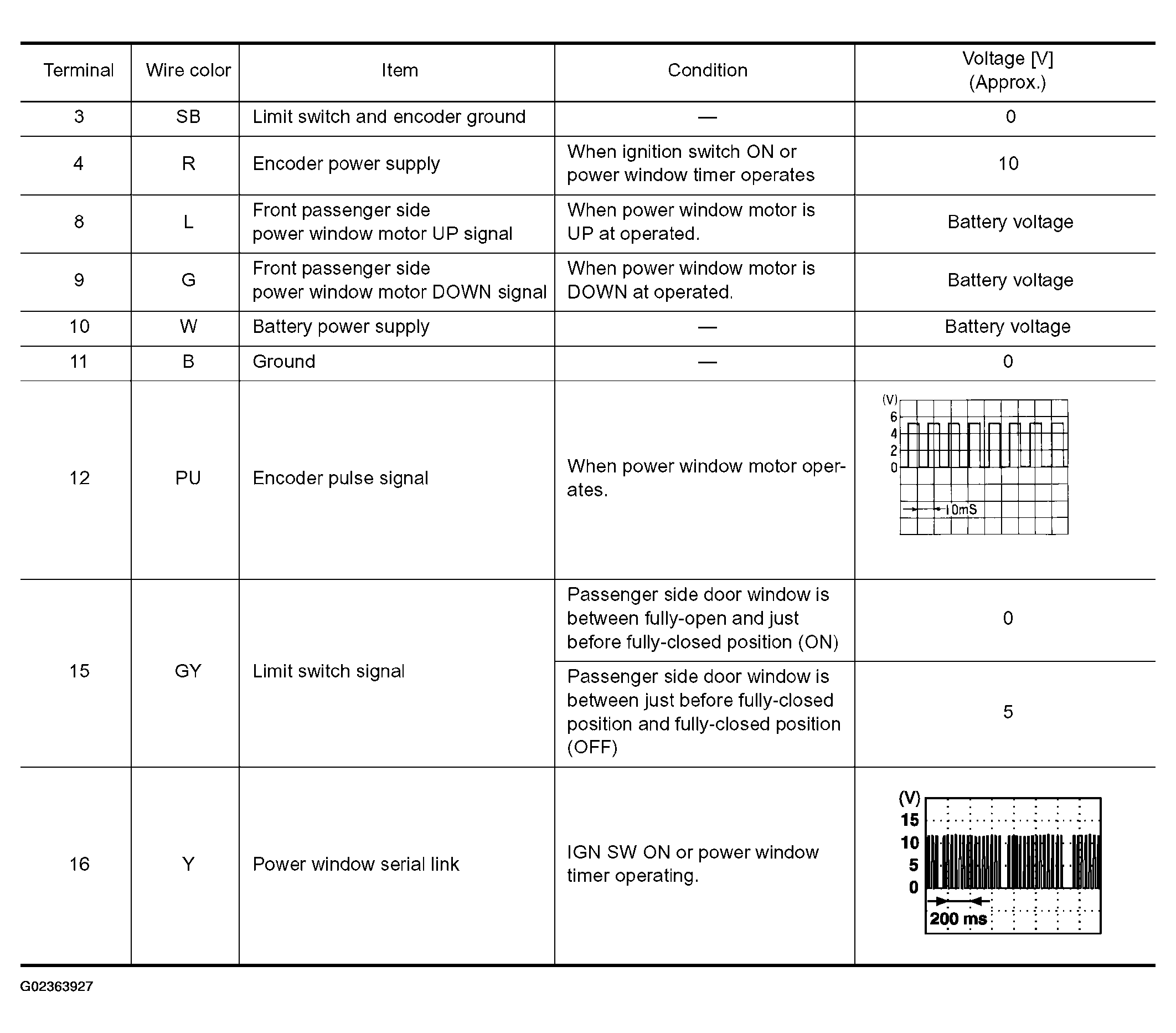

Fig 1: Front Power Window Switch (Passenger Side) / With Front Power Window Anti-pinch System Terminal And Reference Value Chart
G02363927Courtesy of NISSAN MOTOR CO., U.S.A.
