Terminal and Reference Value for Power Window Main Switch / With Front Power Window Anti-pinch System

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

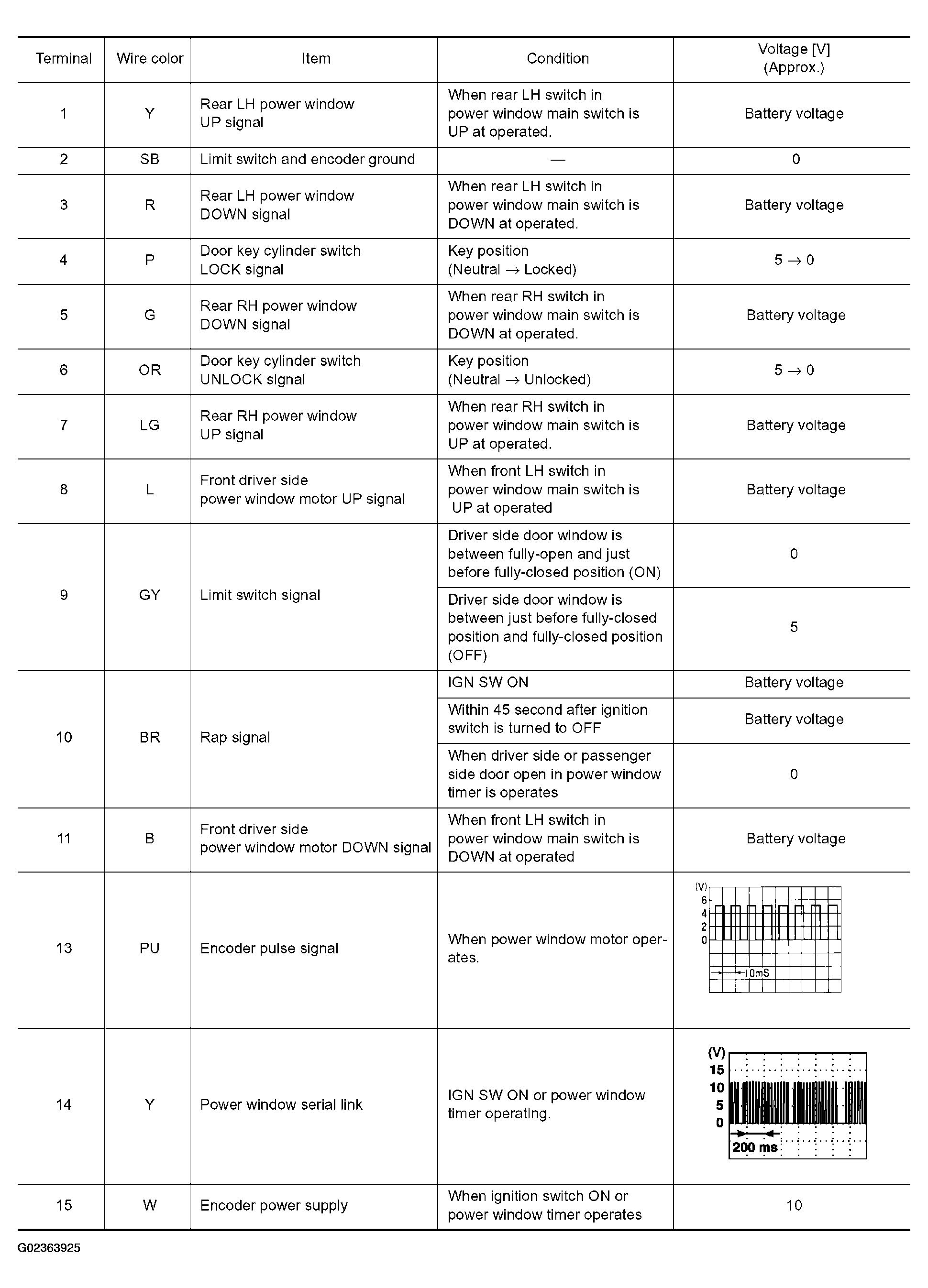

Fig 1: Power Window Main Switch / With Front Power Window Anti-Pinch System Terminal And Reference Value Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

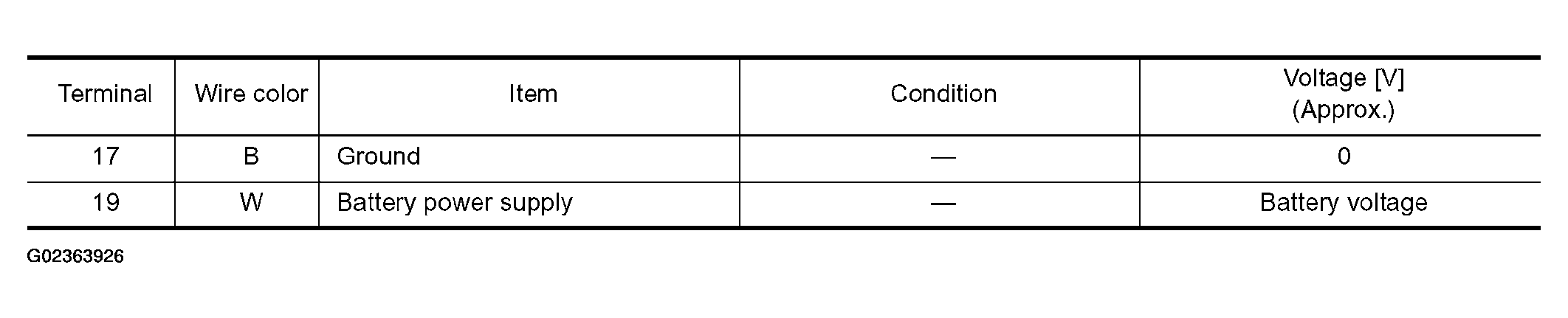

Fig 2: Power Window Main Switch / With Front Power Window Anti-Pinch System Terminal And Reference Value Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
