Work Step

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

When removing instrument panel, combination meter, audio and console assembly, take steps in the order shown by the numbers below.

CAUTION:

Disconnect both battery cables in advance.
Disconnect air bag system line in advance.
Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
Be careful not to scratch pad and other parts.

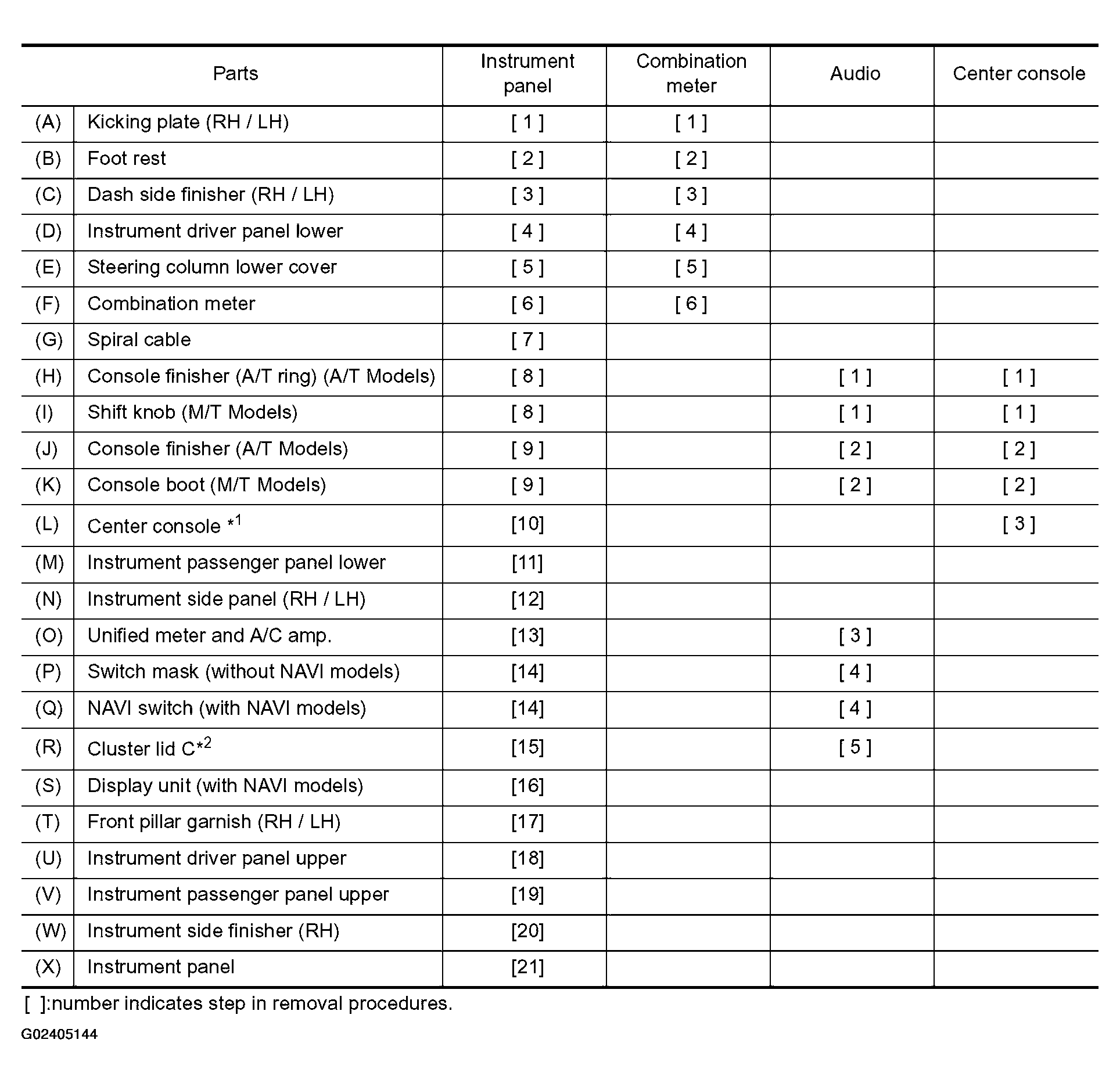

Fig 1: Removal Work Step Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: *1: Console rear pocket and coin holder bracket assembly. Refer to "CENTER CONSOLE ".
*2: Audio, Instrument upper box, and triple meter assembly. Refer to "CLUSTER LID C ".
