Front Power Window RH Circuit Check (Main Power Window and Door Lock/Unlock Switch Operation)
WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
- Turn ignition switch ON.

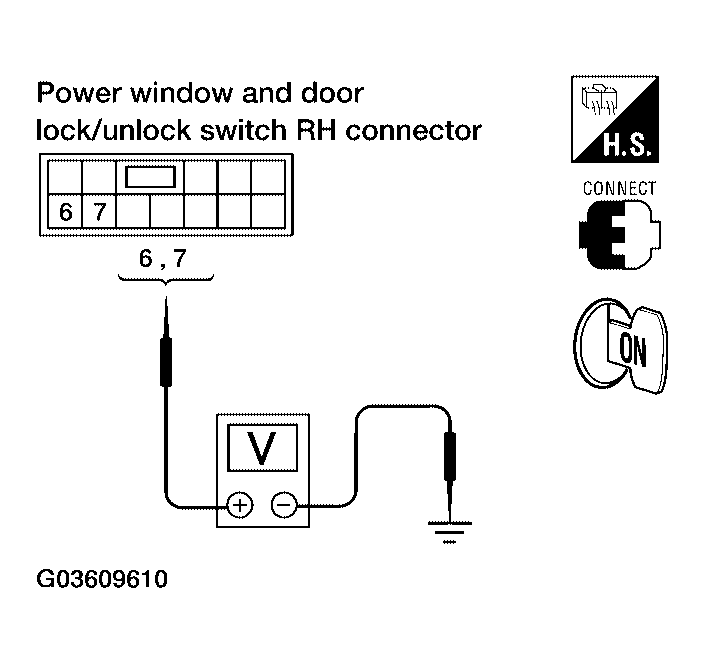

- Check voltage between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.CONNECTOR TERMINAL WIRE COLOR SPECIFICATION
Connector Terminals Condition Voltage (V) (Approx.) (+) (-) D105 7 Ground UP Battery voltage DOWN 0 6 UP 0 DOWN Battery voltage
OK or NG
- OK: GO TO 2.
- NG: GO TO 3.
- CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
- Turn ignition switch OFF.
- Disconnect front power window motor RH and power window and door lock/unlock switch RH.

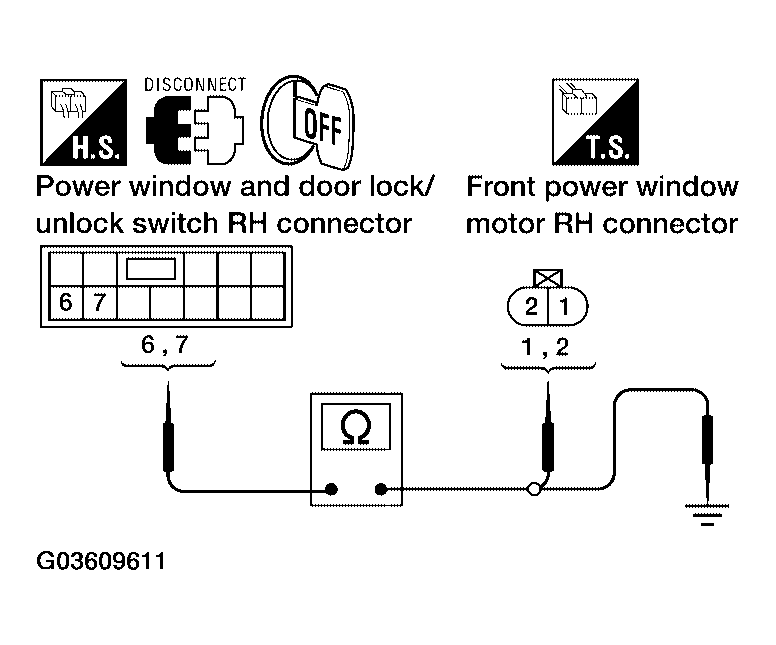

- Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and front power window motor RH connector D104 terminals 1, 2.
7 - 2: Continuity should exist.
6 - 1: Continuity should exist.
- Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.
6 - Ground: Continuity should not exist.
7 - Ground: Continuity should not exist.
OK or NG
- OK: Replace front power window motor RH. Refer to "FRONT DOOR GLASS AND REGULATOR ".
- NG: Repair or replace harness.
- CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

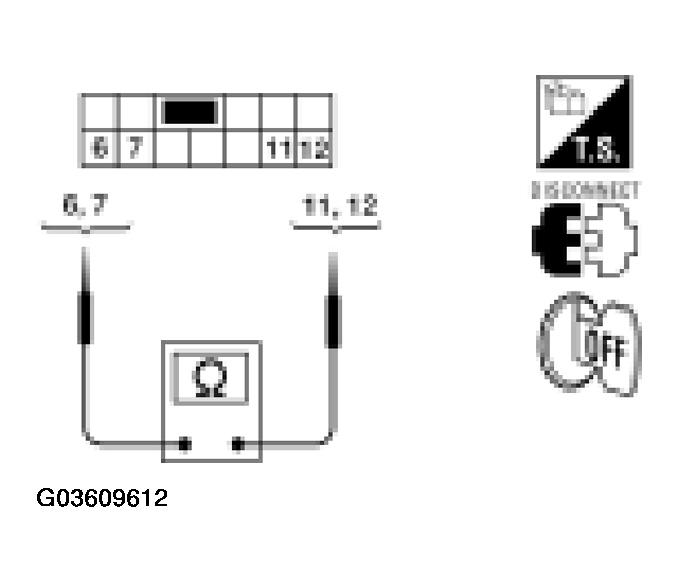

Check continuity between power window and door lock/unlock switch RH terminals.
CONNECTOR TERMINAL CONTINUITY CHARTPower window and door lock/unlock switch Terminals Continuity 6 11 Yes 7 12 Yes OK or NG
- OK: GO TO 4.
- NG: Replace power window and door lock/unlock switch RH.
- CHECK GROUND SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
- Check continuity between main power window and door lock/unlock switch and power window and door lock/unlock switch RH.CONNECTOR TERMINAL CONTINUITY CHART
A B Continuity Connector Terminal Connector Terminal Main power window and door lock/ unlock switch: D7 2 Power window and door lock/ unlock switch RH: D105 11 Yes 3 12 Yes - Check continuity between main power window and door lock/unlock switch and ground.CONNECTOR TERMINAL CONTINUITY CHART
A Ground Continuity Connector Terminal Main power window and door lock/unlock switch: D7 2 No 3 No
OK or NG
- OK: GO TO 5.
- NG: Repair or replace harness.
- CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH SIGNAL
- Connect main power window and door lock/unlock switch.
- Turn ignition switch ON.
- Check voltage between main power window and door lock/unlock switch and ground.CONNECTOR TERMINAL WIRE COLOR SPECIFICATION
Connector Terminals Condition Voltage (V) (Approx.) (+) (-) Main power window and door lock/unlock switch: D7 3 Ground UP Battery voltage DOWN 0 2 UP 0 DOWN Battery voltage
OK or NG
- OK: Repair or replace harness.
- NG: Replace main power window and door lock/unlock switch.
