Front Power Window RH Circuit Check (Power Window and Door Lock/Unlock Switch RH Operation)

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.
      CONNECTOR TERMINAL WIRE COLOR SPECIFICATION

      Connector Terminals Condition Voltage (V) (Approx.)
      (+) (-)
      D105 7 Ground UP Battery voltage
      DOWN 0
      6 UP 0
      DOWN Battery voltage

    OK or NG

    • OK: GO TO 2.
    • NG: GO TO  3.

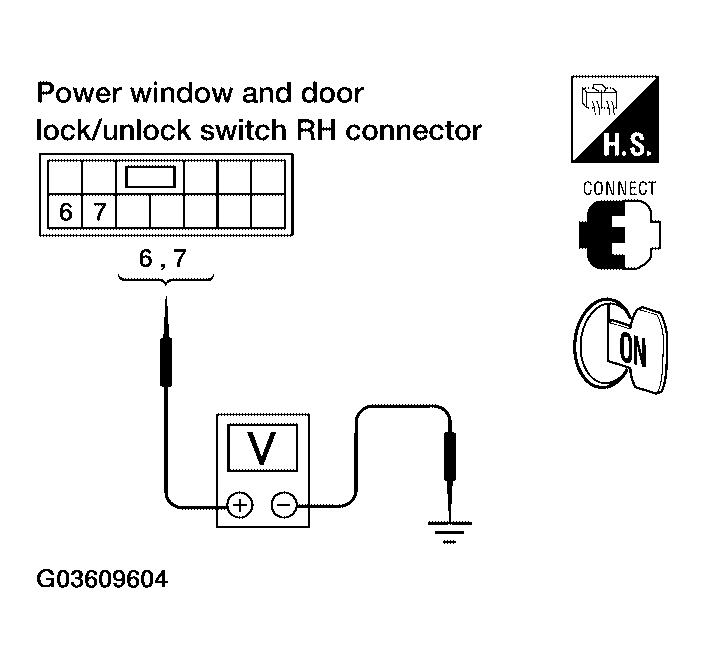

      Fig 1: Checking Voltage Between Power Window And Door Lock/Unlock Switch Rh Connector D105 Terminals 6, 7 And Ground
      G03609604Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
    3. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and front power window motor RH connector D104 terminals 1, 2.

      7 - 2: Continuity should exist.

      6 - 1: Continuity should exist.

    4. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.

      6 - Ground: Continuity should not exist.

      7 - Ground: Continuity should not exist.

    OK or NG

    • OK: Replace front power window motor RH. Refer to "FRONT DOOR GLASS AND REGULATOR ".
    • NG: Repair or replace harness.

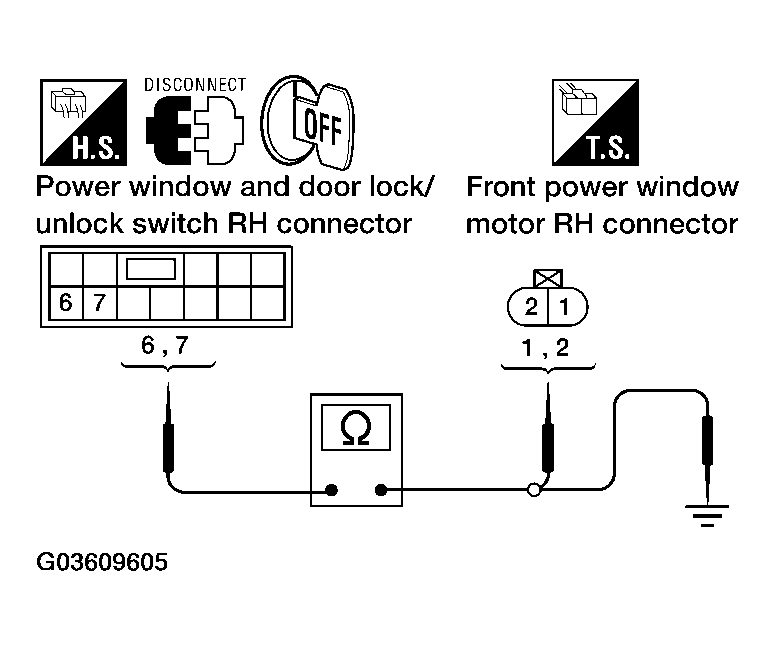

      Fig 2: Checking Front Power Window Motor RH Circuit
      G03609605Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

    Check continuity between power window and door lock/unlock switch RH terminals.

    CONNECTOR TERMINAL CONTINUITY CHART

    Power window and door lock/unlock switch RH Terminals Condition Continuity
    6 8 DOWN Yes
    NEUTRAL or UP No
    11 NEUTRAL or UP Yes
    DOWN No
    7 8 UP Yes
    NEUTRAL or DOWN No
    12 NEUTRAL or DOWN Yes
    UP No
    Fig 3: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Terminals
    G04205660Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 4.
    • NG: Replace power window and door lock/unlock switch RH.
  4. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH GROUND SUPPLY

    Check continuity between power window and door lock/unlock switch RH and ground.

    CONNECTOR TERMINAL CONTINUITY CHART

    Connector Terminals Continuity
    Power window and door lock/unlock switch: D105 11 Ground Yes
    12 Yes

    OK or NG

    • OK: Check the condition of the harness and the connector.
    • NG: GO TO 5.
      Fig 4: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH And Ground
      G04205661Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK GROUND SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
    3. Check continuity between main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
      CONNECTOR TERMINAL CONTINUITY CHART

      A B Continuity
      Connector Terminal Connector Terminal
      Main power window and door lock/ unlock switch: D7 2 Power window and door lock/unlock switch RH: D105 11 Yes
      3 12 Yes
    4. Check continuity between main power window and door lock/unlock switch and ground.
      CONNECTOR TERMINAL CONTINUITY CHART

      A Ground Continuity
      Connector Terminal
      Main power window and door lock/unlock switch: D7 2 No
      3 No

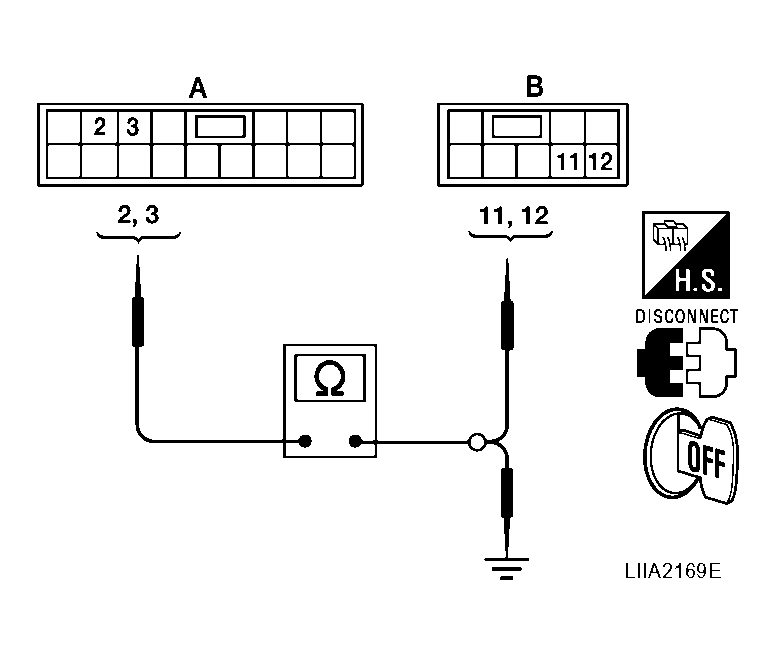

      Fig 5: Checking Continuity Between Main Power Window And Door Lock/Unlock Switch And Ground
      G04205662Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 6.
    • NG: Repair or replace harness.
  6. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

    Check continuity between main power window and door lock/unlock switch terminals.

    CONNECTOR TERMINAL CONTINUITY CHART

    Main power window and door lock/unlock switch Terminals Condition Continuity
    14 2 Lock switch UNLOCK Yes
    Lock switch LOCK No
    3 Lock switch UNLOCK Yes
    Lock switch LOCK No

    OK or NG

    • OK: Repair or replace harness.
    • NG: Replace main power window and door lock/unlock switch.

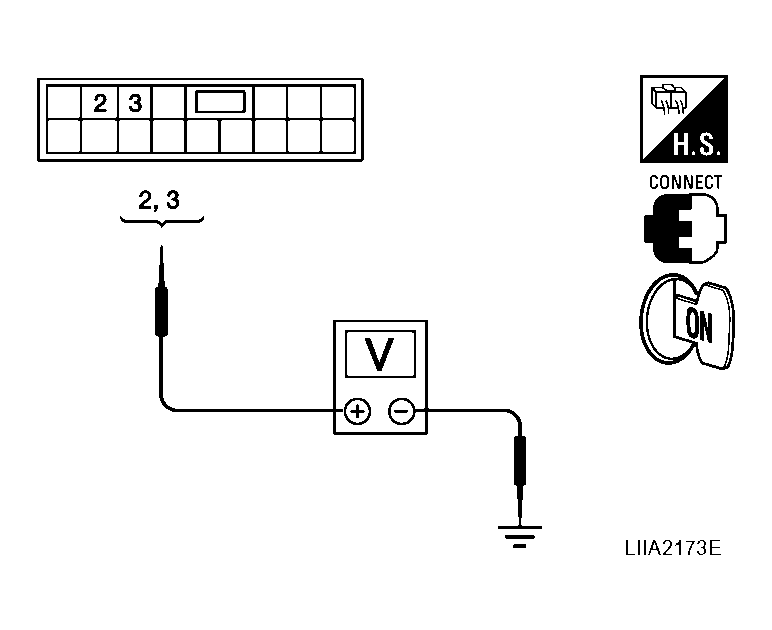

      Fig 6: Checking Voltage Between Main Power Window And Door Lock/ Unlock Switch And Ground
      G04205668Courtesy of NISSAN MOTOR CO., U.S.A.
