Front Power Window RH Circuit Check (Main Power Window and Door Lock/Unlock Switch Operation)

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.
      POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH TERMINALS 6 & 7 VOLTAGE SPECIFICATION

      Connector Terminals Condition Voltage (V) (Approx.)
      (+) (-)
      D105 7 Ground UP Battery voltage
      DOWN 0
      6 UP 0
      DOWN Battery voltage

    OK or NG

    • OK : GO TO 2.
    • NG : GO TO  3.

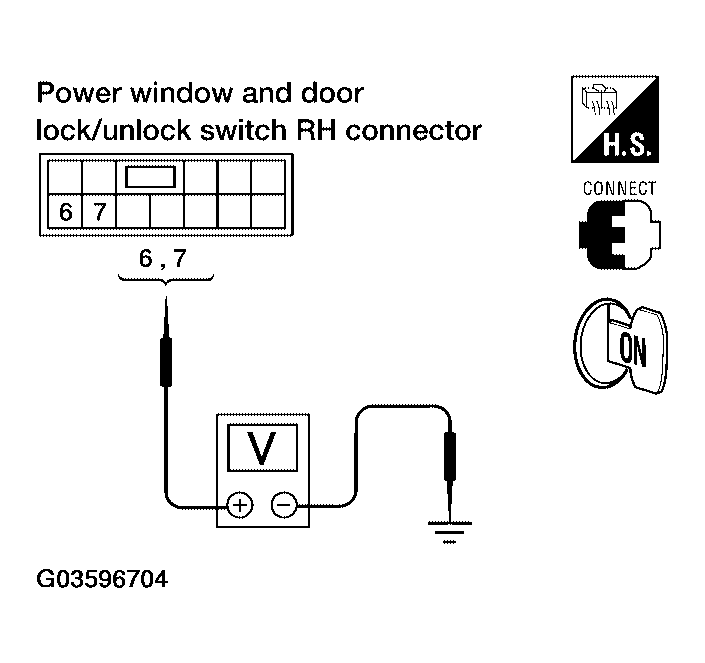

      Fig 1: Checking Voltage Between Switch RH Connector D105 Terminals 6, 7 And Ground
      G03596704Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
    3. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and front power window motor RH connector D104 terminals 1, 2.

      7 - 2 : Continuity should exist.

      6 - 1 : Continuity should exist.

    4. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.

      6 - Ground : Continuity should not exist.

      7 - Ground : Continuity should not exist.

    OK or NG

    • OK : Replace front power window motor RH. Refer to "FRONT DOOR GLASS AND REGULATOR ".
    • NG : Repair or replace harness.

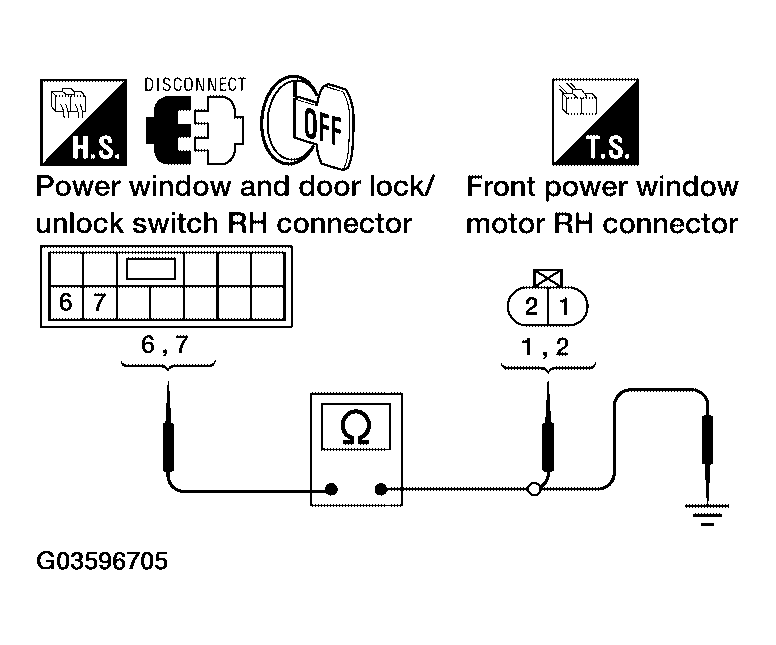

      Fig 2: Checking Continuity Between Switch RH Connector D105 Terminals 6, 7 And Ground
      G03596705Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

    Check continuity between power window and door lock/unlock switch RH terminals.

    POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH TERMINALS CONTINUITY SPECIFICATION

      Terminals Continuity
    Power window and door lock/unlock switch 6 11 Yes
    7 12 Yes

    OK or NG

    • OK : GO TO 4.
    • NG : Replace power window and door lock/unlock switch RH.

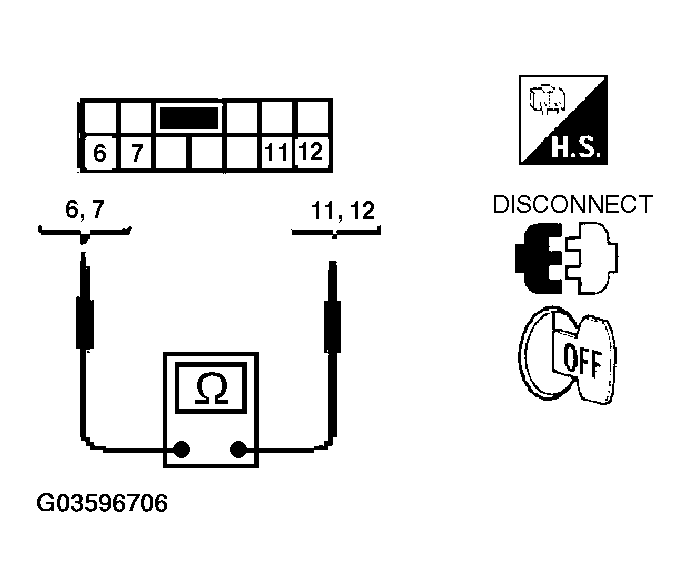

      Fig 3: Checking Continuity Between Power Window And Switch RH Terminals
      G03596706Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK GROUND SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
    3. Check continuity between main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
      POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH CONTINUITY SPECIFICATION

      A B Continuity
      Connector Terminal Connector Terminal
      Main power window and door lock/ unlock switch: D7 2 Power window and door lock/ unlock switch RH: D105 12 Yes
      3 11 Yes
    4. Check continuity between main power window and door lock/unlock switch and ground.
      MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH TERMINALS 2 & 3 CONTINUITY SPECIFICATION

      A Ground Continuity
      Connector Terminal
      Main power window and door lock/unlock switch: D7 2 No
      3 No

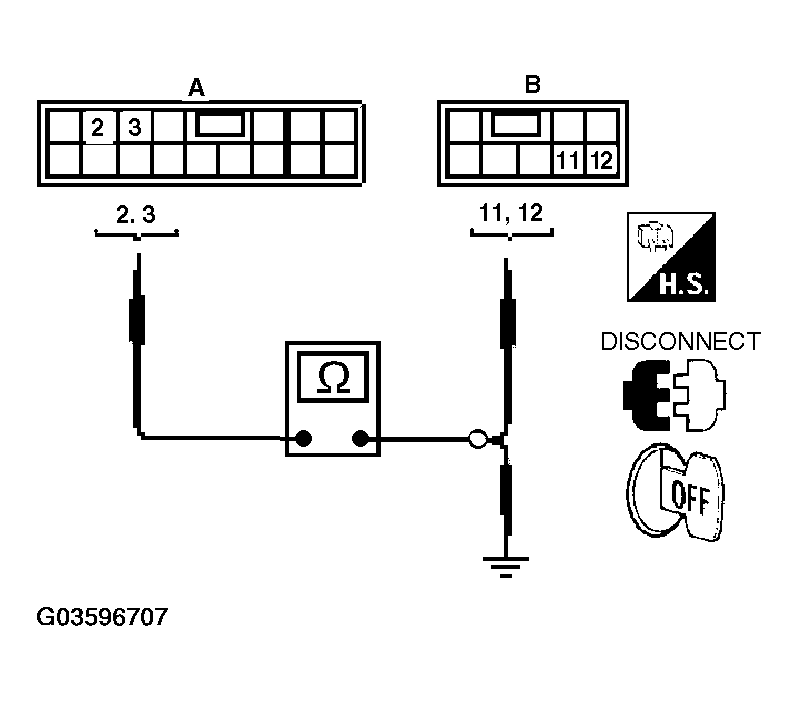

      Fig 4: Checking Continuity Between Main Power Window Switch And Ground
      G03596707Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO 5.
    • NG : Repair or replace harness.
  5. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH SIGNAL
    1. Connect main power window and door lock/unlock switch.
    2. Turn ignition switch ON.
    3. Check voltage between main power window and door lock/unlock switch and ground.
      CONNECTOR TERMINAL VOLTAGE SPECIFICATION

      Connector Terminals Condition Voltage (V) (Approx.)
      (+) (-)
      Main power window and door lock/unlock switch: D7 3 Ground UP Battery voltage
      DOWN 0
      2 UP 0
      DOWN Battery voltage

    OK or NG

    • OK : Repair or replace harness.
    • NG : Replace main power window and door lock/unlock switch.

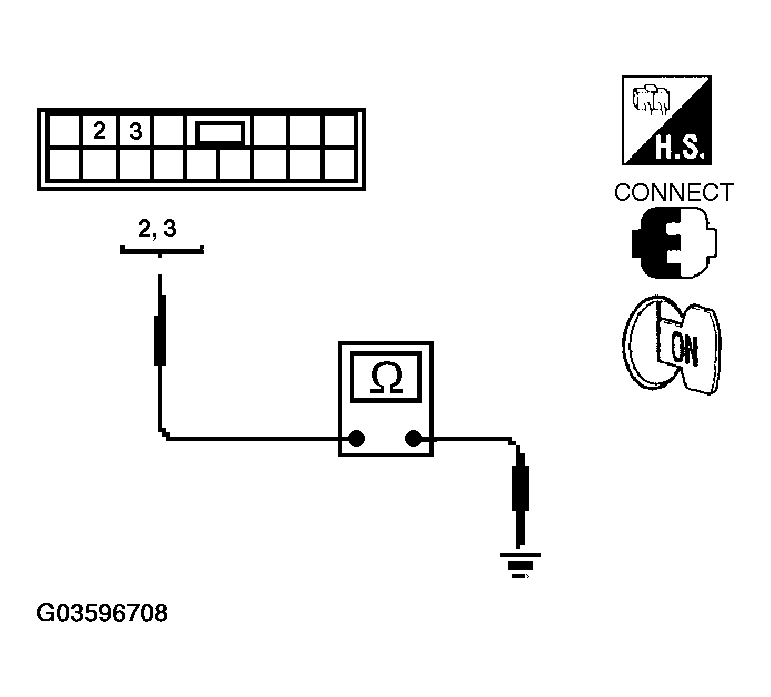

      Fig 5: Checking Voltage Between Main Power Window And Door Lock/Unlock Switch And Ground
      G03596708Courtesy of NISSAN MOTOR CO., U.S.A.
