Front Power Window RH Circuit Check (Power Window and Door Lock/Unlock Switch RH Operation)

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.
      POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH CONNECTOR D105 TERMINALS 6, 7 VOLTAGE SPECIFICATION

      Connector Terminals Condition Voltage (V) (Approx.)
      (+) (-)
      D105 7 Ground UP Battery voltage
      DOWN 0
      6 UP 0
      DOWN Battery voltage

    OK or NG

    • OK : GO TO 2.
    • NG : GO TO  3.

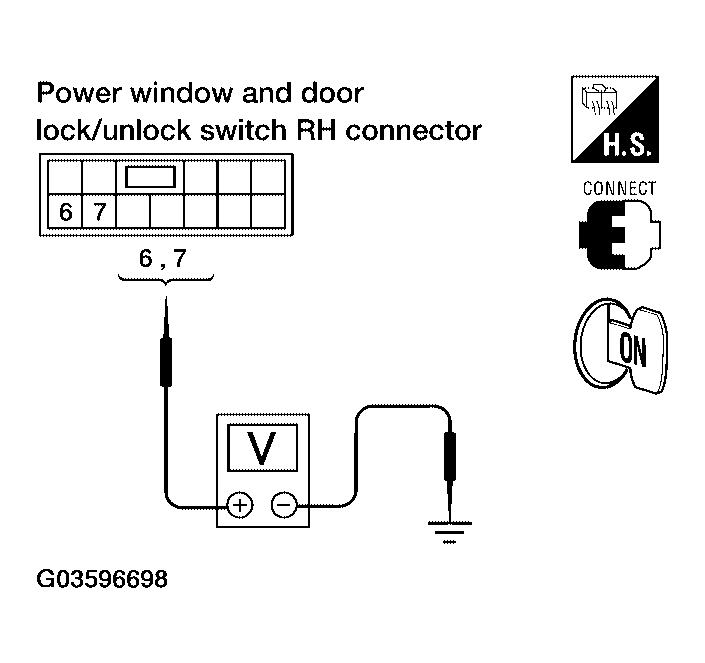

      Fig 1: Checking Voltage Between Switch RH Connector D105 Terminals 6, 7 And Ground
      G03596698Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
    3. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and front power window motor RH connector D104 terminals 1, 2.

      7 - 2 : Continuity should exist.

      6 - 1 : Continuity should exist.

    4. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.

      6 - Ground : Continuity should not exist.

      7 - Ground : Continuity should not exist.

    OK or NG

    • OK : Replace front power window motor RH. Refer to "FRONT DOOR GLASS AND REGULATOR ".
    • NG : Repair or replace harness.

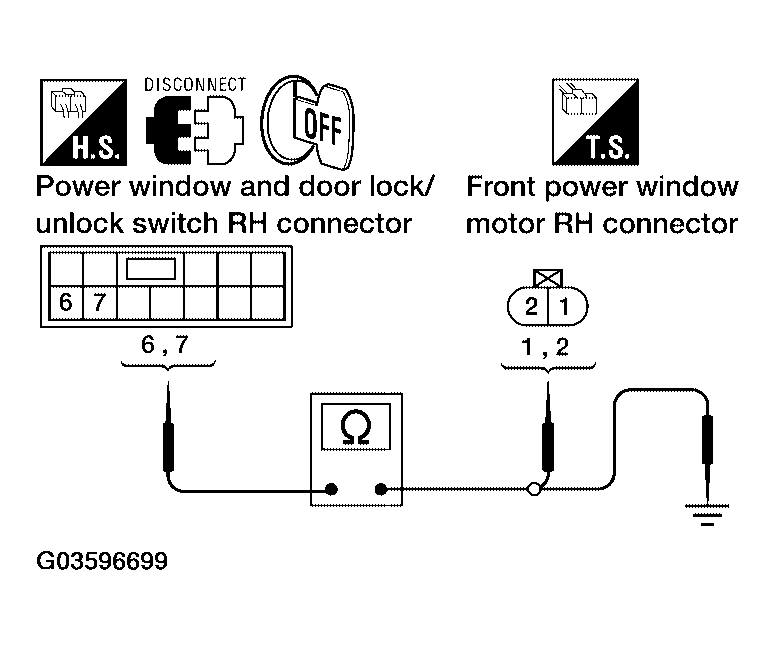

      Fig 2: Checking Continuity Between Switch RH Connector D105 Terminals 6, 7 And Ground
      G03596699Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

    Check continuity between power window and door lock/unlock switch RH terminals.

    POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH TERMINALS 6, 7, 8, 11 & 12 CONTINUITY SPECIFICATION

    Power window and door lock/unlock switch RH Terminals Condition Continuity
    6 8 DOWN Yes
    NEUTRAL or UP No
    11 NEUTRAL or UP Yes
    DOWN No
    7 8 UP Yes
    NEUTRAL or DOWN No
    12 NEUTRAL or DOWN Yes
    UP No

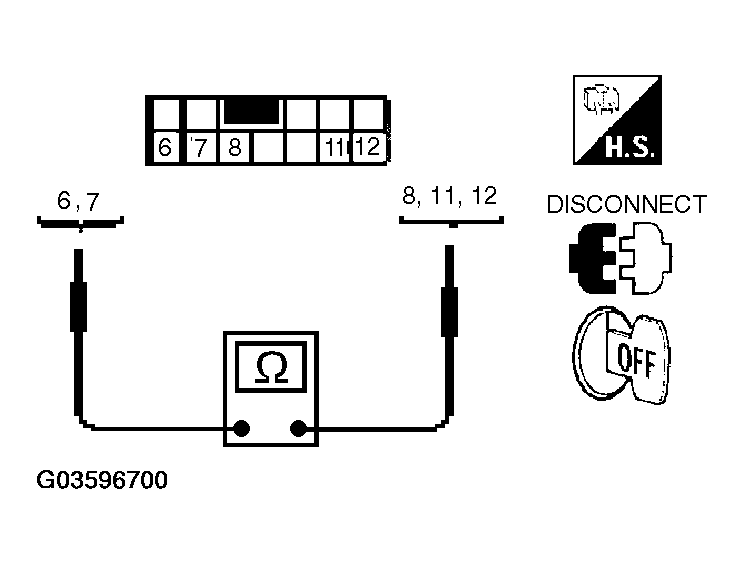

    Fig 3: Checking Continuity Between Power Window And Switch RH Terminals
    G03596700Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO 4.
    • NG : Replace power window and door lock/unlock switch RH.
  4. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH GROUND SUPPLY

    Check continuity between power window and door lock/unlock switch RH and ground.

    POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH TERMINALS 11 & 12 CONTINUITY SPECIFICATION

    Connector Terminals Continuity
    Power window and door lock/unlock switch: D105 11 Ground Yes
    12 Yes

    OK or NG

    • OK : Check the condition of the harness and the connector.
    • NG : GO TO 5.

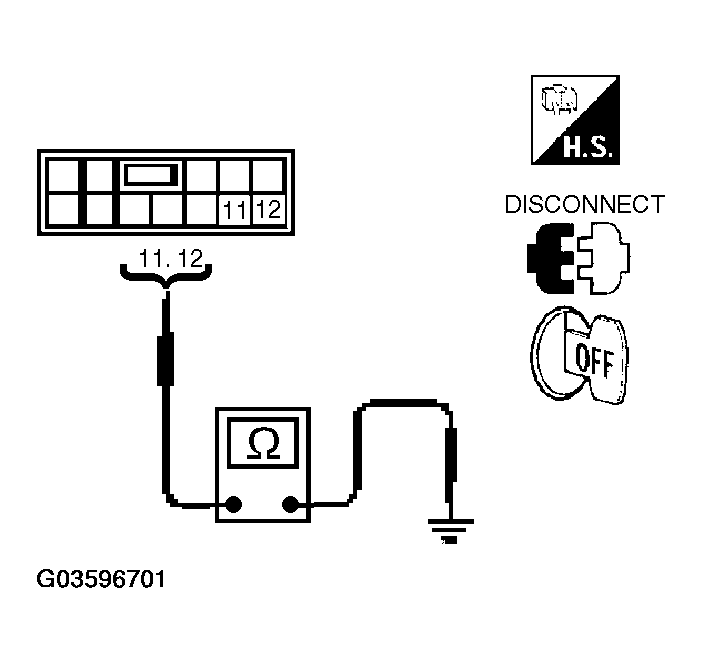

      Fig 4: Checking Continuity Between Power Window And Switch RH And Ground
      G03596701Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK GROUND SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
    3. Check continuity between main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
      MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH TERMINALS 2, 3, 11 & 12 CONTINUITY SPECIFICATION

      A B Continuity
      Connector Terminal Connector Terminal
      Main power window and door lock/ unlock switch: D7 2 Power window and door lock/unlock switch RH: D105 12 Yes
      3 11 Yes
    4. Check continuity between main power window and door lock/unlock switch and ground.

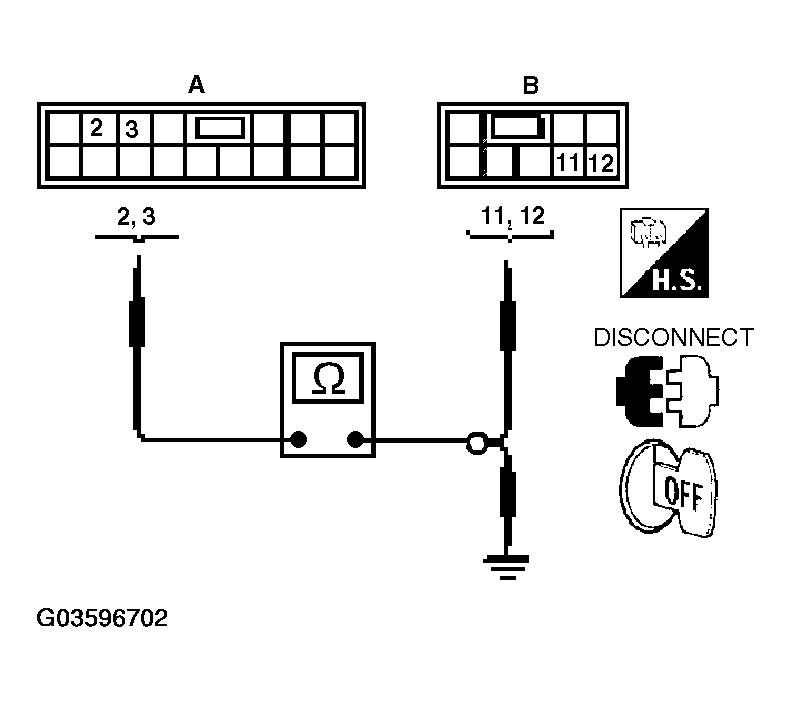

      Fig 5: Checking Continuity Between Main Power Window And Door Lock/Unlock Switch And Ground
      G03596702Courtesy of NISSAN MOTOR CO., U.S.A.
      MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH TERMINALS 2 & 3 CONTINUITY SPECIFICATION

      A Ground Continuity
      Connector Terminal
      Main power window and door lock/unlock switch: D7 2 No
      3 No

    OK or NG

    • OK : GO TO 6.
    • NG : Repair or replace harness.
  6. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

    Check continuity between main power window and door lock/unlock switch terminals.

    MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH TERMINALS 2, 3 & 14 CONTINUITY SPECIFICATION

      Terminals Condition Continuity
    Main power window and door lock/unlock switch 14 2 Lock switch UNLOCK Yes
    Lock switch LOCK No
    3 Lock switch UNLOCK Yes
    Lock switch LOCK No

    OK or NG

    • OK : Repair or replace harness.
    • NG : Replace main power window and door lock/unlock switch.

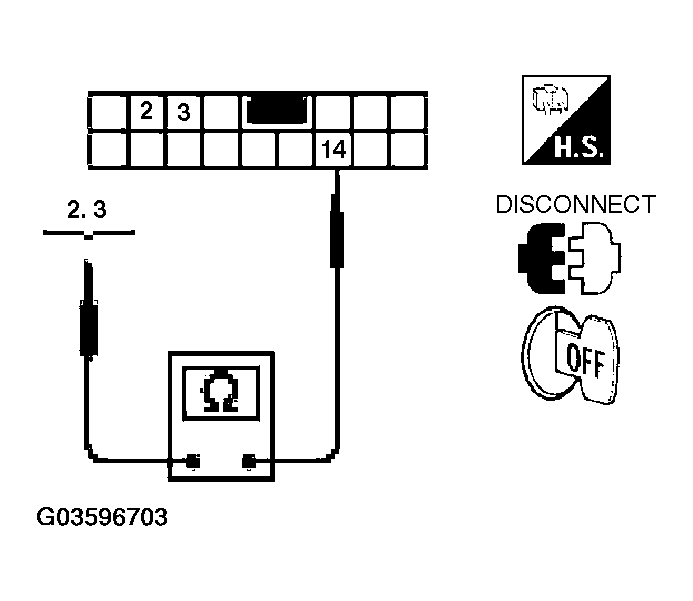

      Fig 6: Checking Continuity Between Main Power Window And Door Lock/Unlock Switch Terminals
      G03596703Courtesy of NISSAN MOTOR CO., U.S.A.
