CAN Communication Unit: Notes

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Go to CAN system, when selecting your CAN system type from the following table.

CAN COMMUNICATION DESCRIPTION

Body type	Coupe
Axle	2WD
Engine	VQ35DE
Transmission	M/T				A/T
Brake control	VDC
Intelligent Key system						X		X
Rear active steer			X	X			X	X
Automatic drive positioner		X		X		X		X
CAN system type	1	2	3	4	5	6	7	8
CAN system trouble diagnosis	CAN SYSTEM (TYPE 1)	CAN SYSTEM (TYPE 2)	CAN SYSTEM (TYPE 3)	CAN SYSTEM (TYPE 4)	CAN SYSTEM (TYPE 5)	CAN SYSTEM (TYPE 6)	CAN SYSTEM (TYPE 7)	CAN SYSTEM (TYPE 8)
X: Applicable

NOTE: Confirming the presence of the following items helps to identify CAN system type.

Model with Intelligent Key system

Fig 1: Identifying Intelligent Key System
Courtesy of NISSAN MOTOR CO., U.S.A.
Model with rear active steer

Fig 2: Identifying Rear Active Steer
Courtesy of NISSAN MOTOR CO., U.S.A.
Model with automatic drive positioner

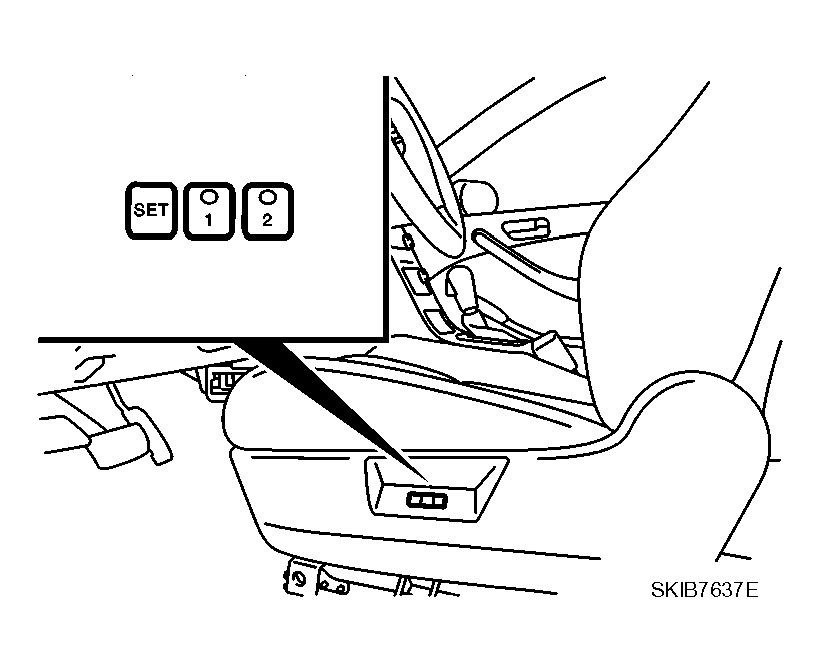

Fig 3: Identifying Automatic Drive Positioner
Courtesy of NISSAN MOTOR CO., U.S.A.
