Lower Instrument Panel: Disassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUSE BOX OPENING COVER
  2. REMOVE OUTER MIRROR SWITCH ASSEMBLY WITH BEZEL
  3. REMOVE TIRE PRESSURE WARNING RESET SWITCH
  4. REMOVE INDICATOR LIGHT ASSEMBLY
  5. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER
  6. REMOVE STEREO JACK ADAPTER ASSEMBLY
    1. Detach the 2 claws and remove the stereo jack adapter assembly.
    2. Disconnect the connectors.

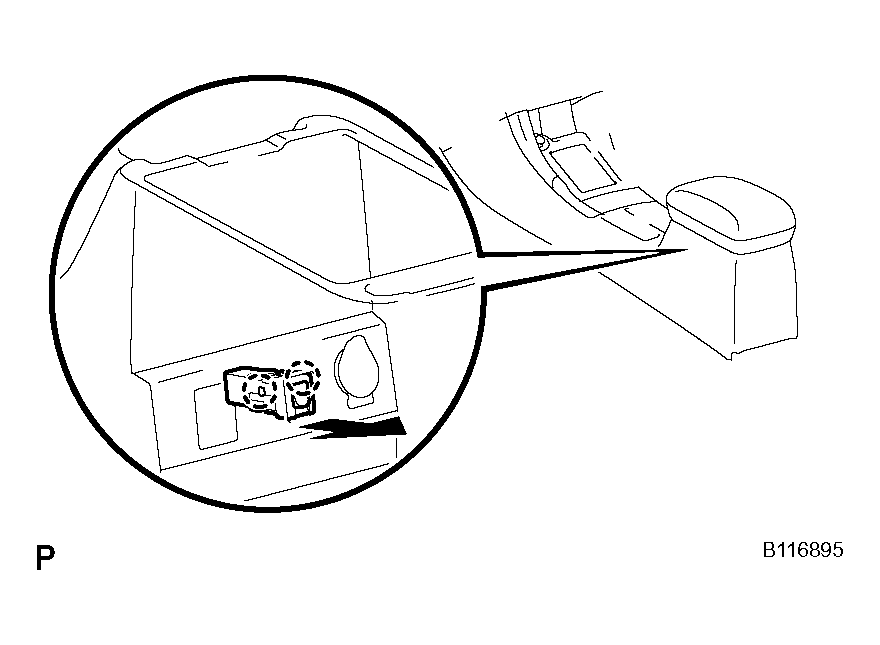

    Fig 1: Removing Stereo Jack Adapter Assembly
    G04224549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
