ASCD Steering Switch

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect combination switch (spiral cable).
Check continuity between combination switch (spiral cable) terminals 17 and 18 with pushing each switch.

ASCD STEERING SWITCH RESISTANCE

Switch	Condition	Resistance [Ω]
MAIN switch	Pressed	Approx. 0
MAIN switch	Released	Approx. 4, 000
CANCEL switch	Pressed	Approx. 250
CANCEL switch	Released	Approx. 4, 000
RESUME/ACCELERATE switch	Pressed	Approx. 1, 480
RESUME/ACCELERATE switch	Released	Approx. 4, 000
SET/COAST switch	Pressed	Approx. 660
SET/COAST switch	Released	Approx. 4, 000

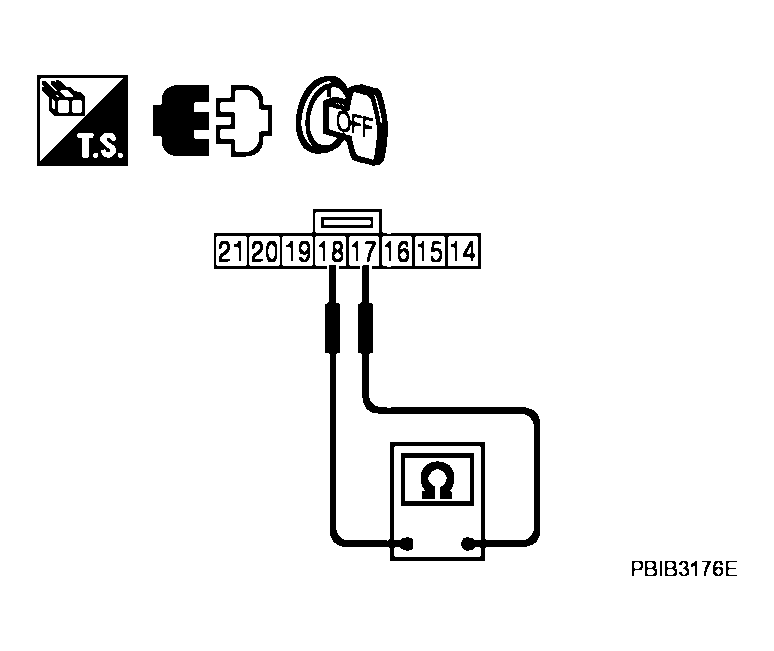

Fig 1: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 17 And 18

Courtesy of NISSAN MOTOR CO., U.S.A.
