With GST

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the coolant level in the reservoir tank and radiator.

    Allow engine to cool before checking coolant level.

    If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to "DIAGNOSTIC PROCEDURE ".

  2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to "DIAGNOSTIC PROCEDURE ".
  3. Disconnect engine coolant temperature sensor harness connector.
  4. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
    Fig 1: Checking Coolant Level
    G04074236Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Start engine and make sure that cooling fan operates.
    CAUTION: Be careful not to overheat engine.
  6. If NG, go to "DIAGNOSTIC PROCEDURE ".

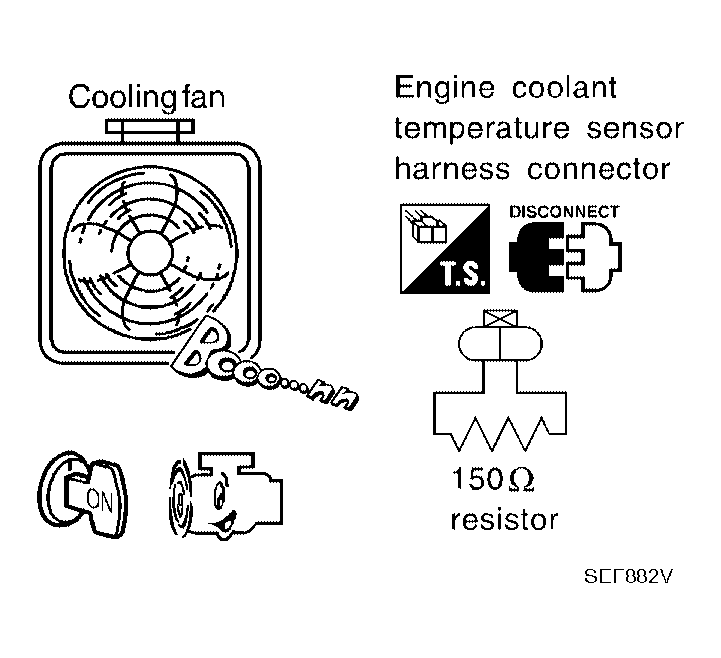

    Fig 2: Connecting 150 Ohms Resister To Engine Coolant Temperature Sensor Harness Connector
    G04185466Courtesy of NISSAN MOTOR CO., U.S.A.
