Circuit Protection Devices
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

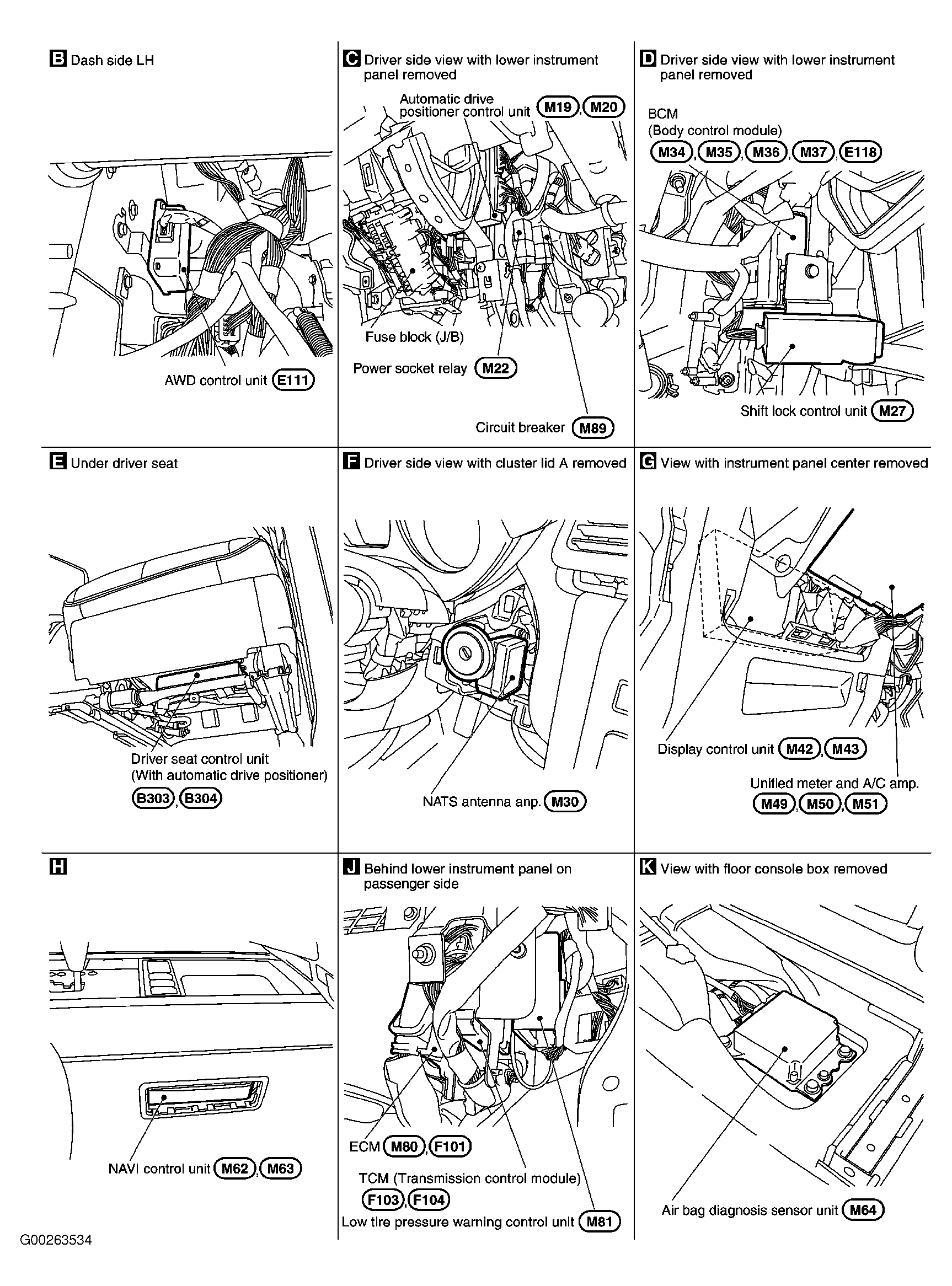

| Circuit Breaker | Left side of dash, near fuse block (J/B). See Figure . |

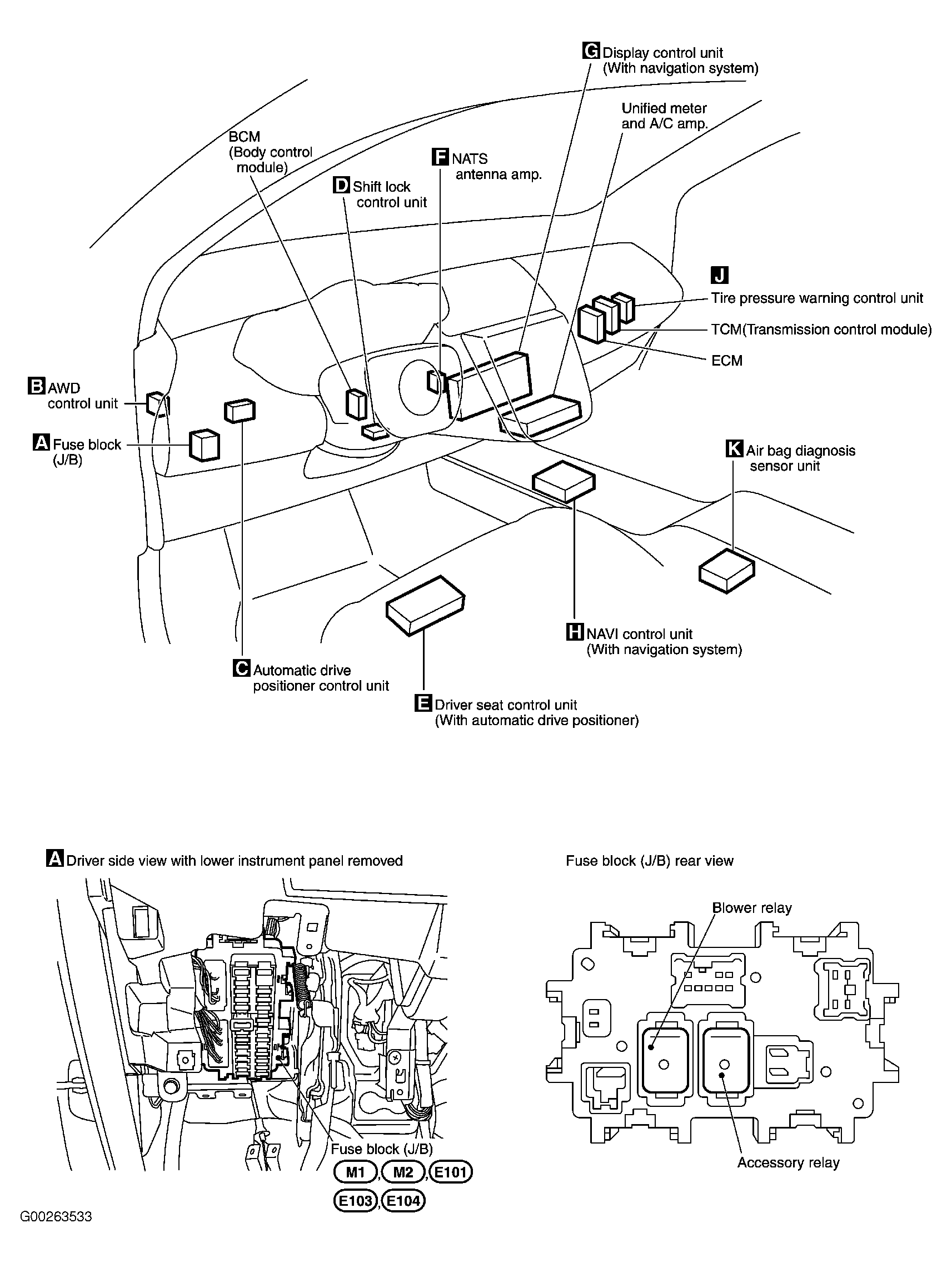

| Fuse Block (J/B) | Left side of dash. See Figure . |

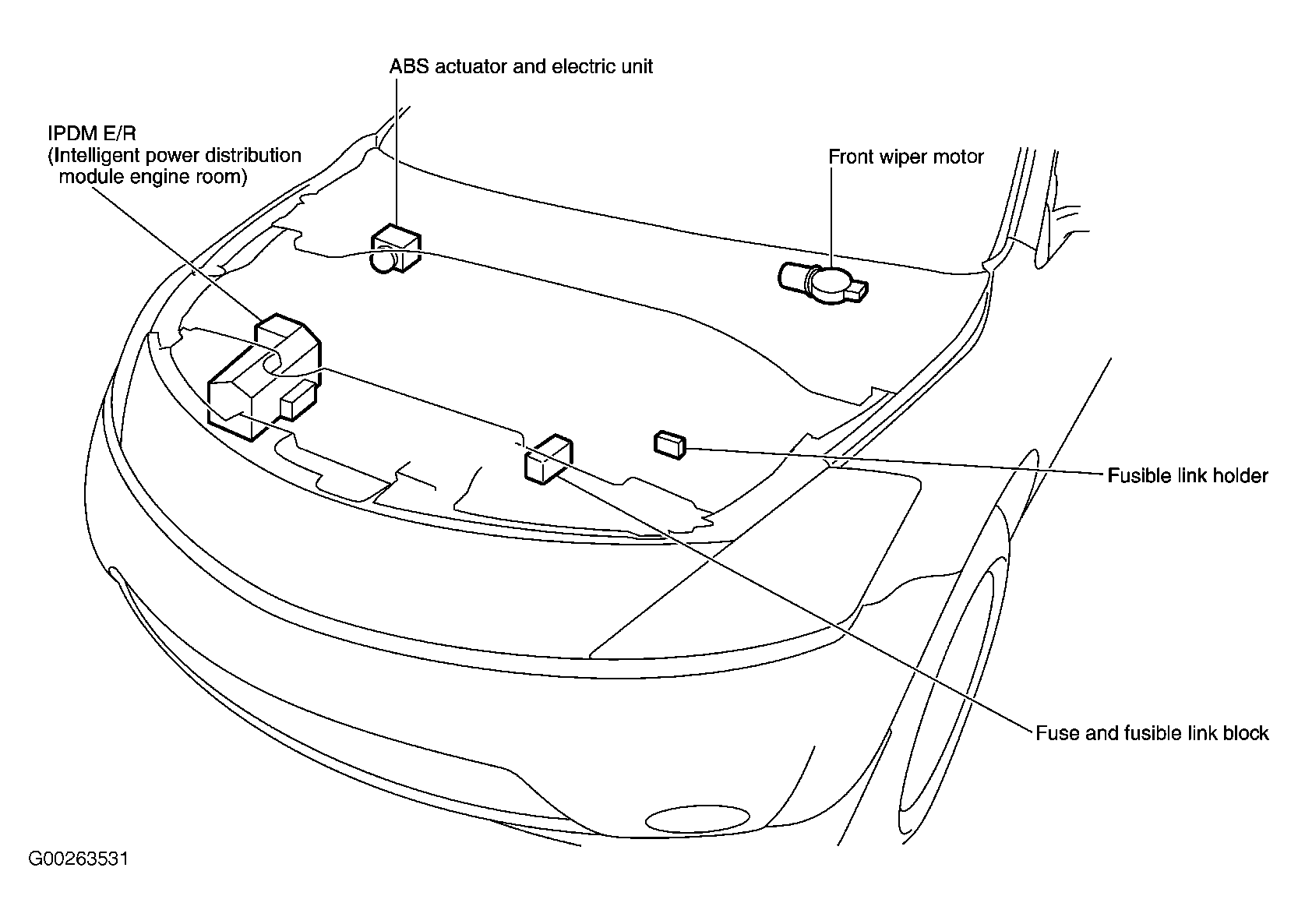

| Fuse & Fusible Link Block | Left front of engine compartment, near battery. See Figure . |

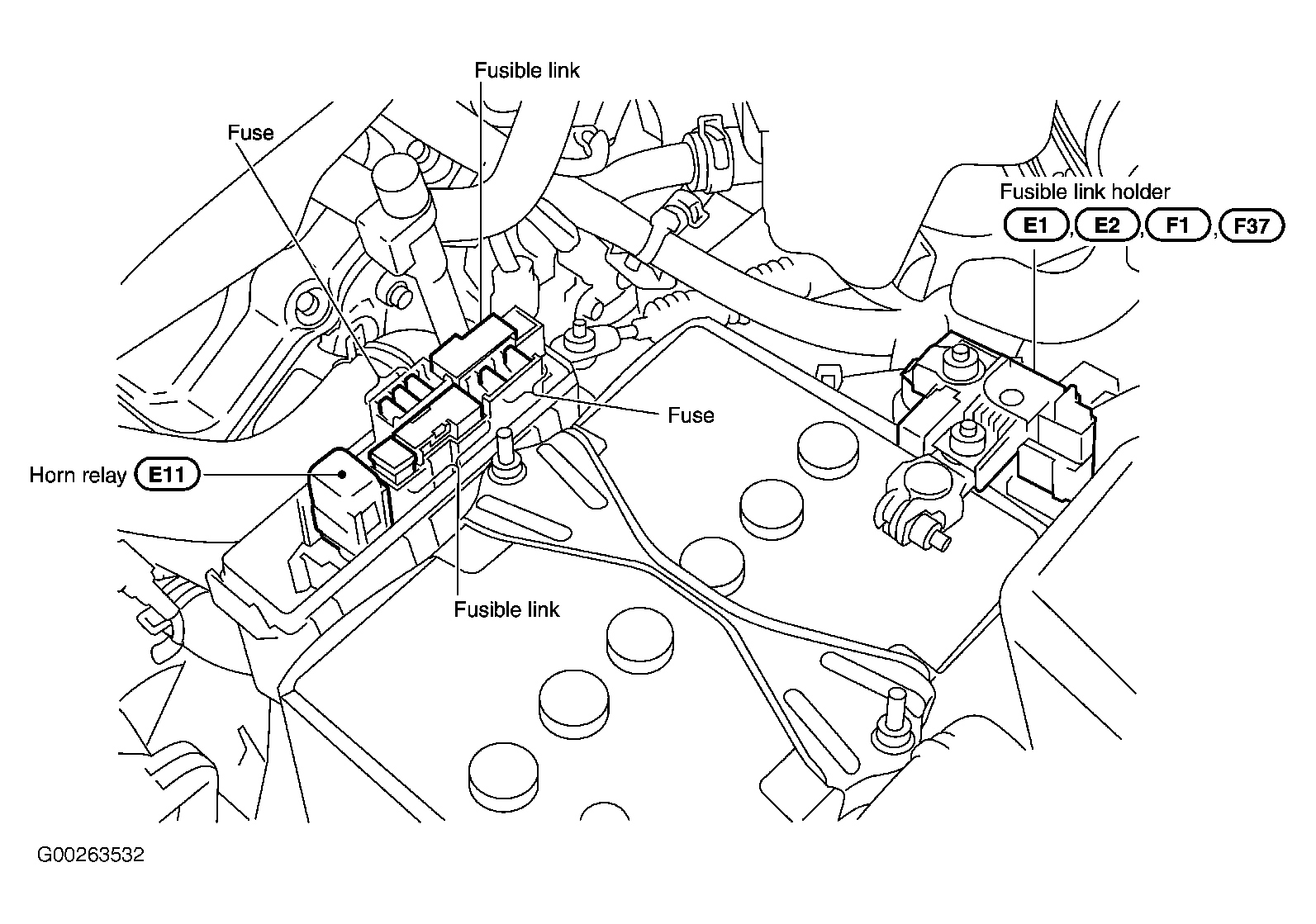

| Fusible Link Holder | Left front of engine compartment, at positive battery terminal. See Figure . |
| Intelligent Power Distribution Module (Engine Room) (IPDM E/R) | Right front of engine compartment, behind headlight. See Figure . |
