Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove snap ring.
  2. Remove sun gear assembly from planetary carrier assembly.

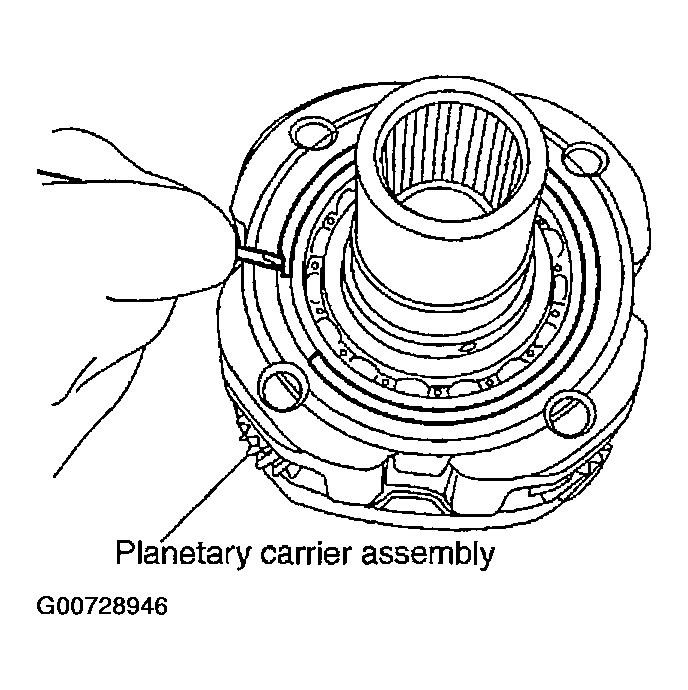

    Fig 1: Removing Snap Ring
    G00728946Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove snap ring from sun gear assembly.

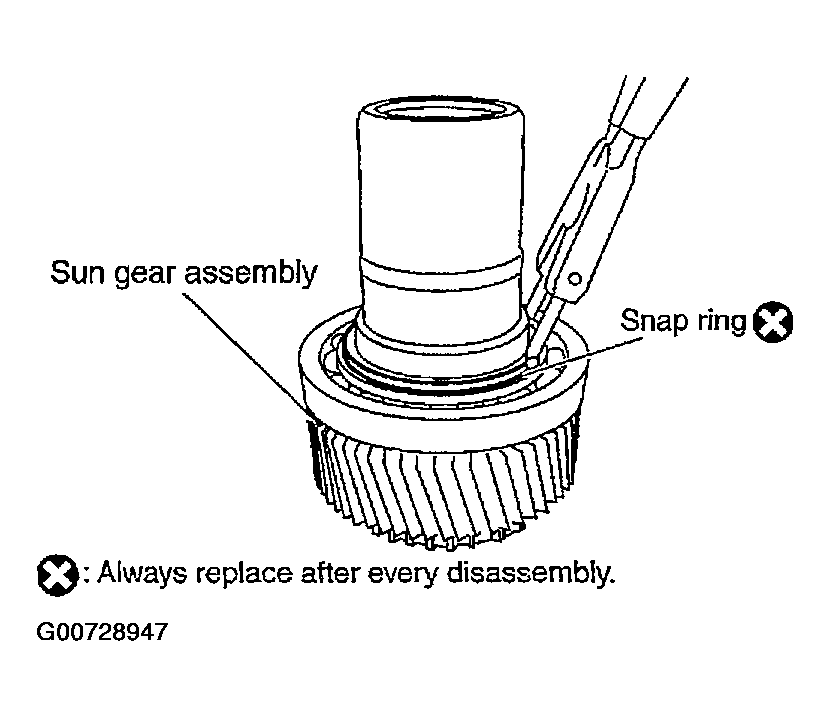

    Fig 2: Removing Snap Ring
    G00728947Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the carrier bearing from sun gear with a press, using drift and puller.
    1. Tool number A: ST35300000 (-)
    2. B: ST30021000 (J22912-01)

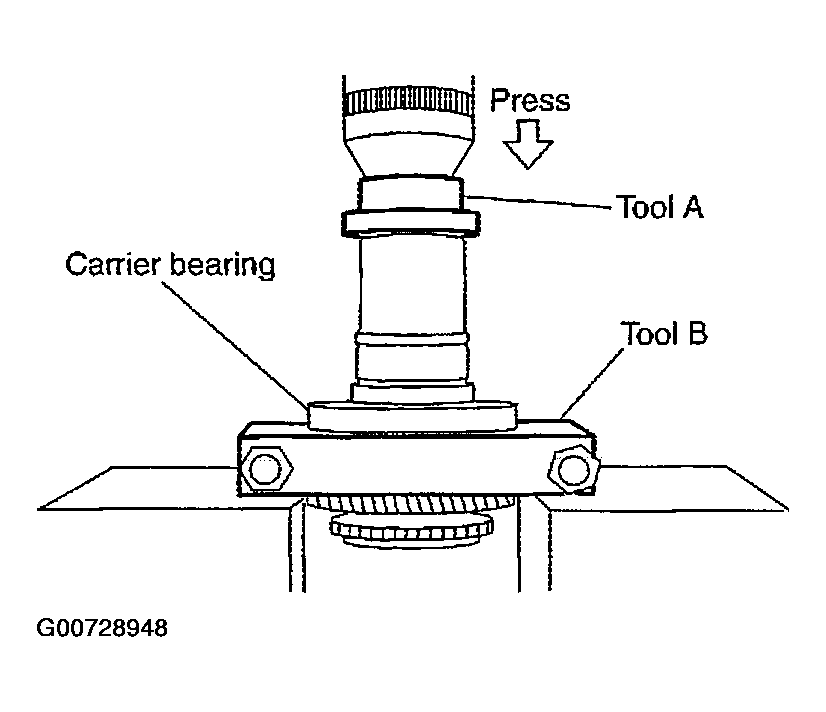

    Fig 3: Removing Carrier Bearing
    G00728948Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the needle bearing from sun gear with a press, using drift.
    1. Tool number : ST33710000 (-)

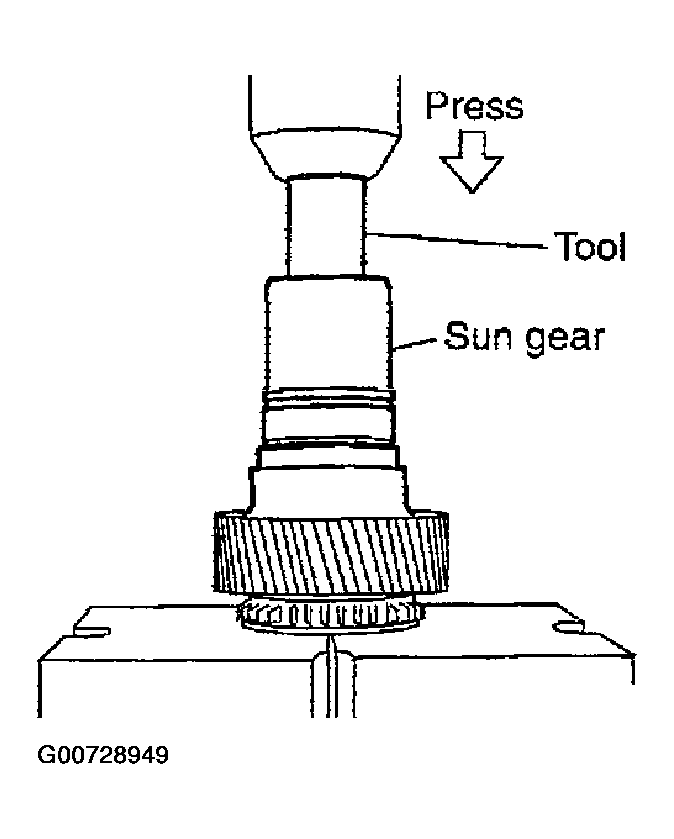

    Fig 4: Removing Needle Bearing
    G00728949Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove the metal bushing from sun gear with a press, using drift, drift bar and puller.
    1. Tool number A: ST33710000 (-)
    2. B: ST35325000 (-)
    3. C: ST33290001 (J34286)

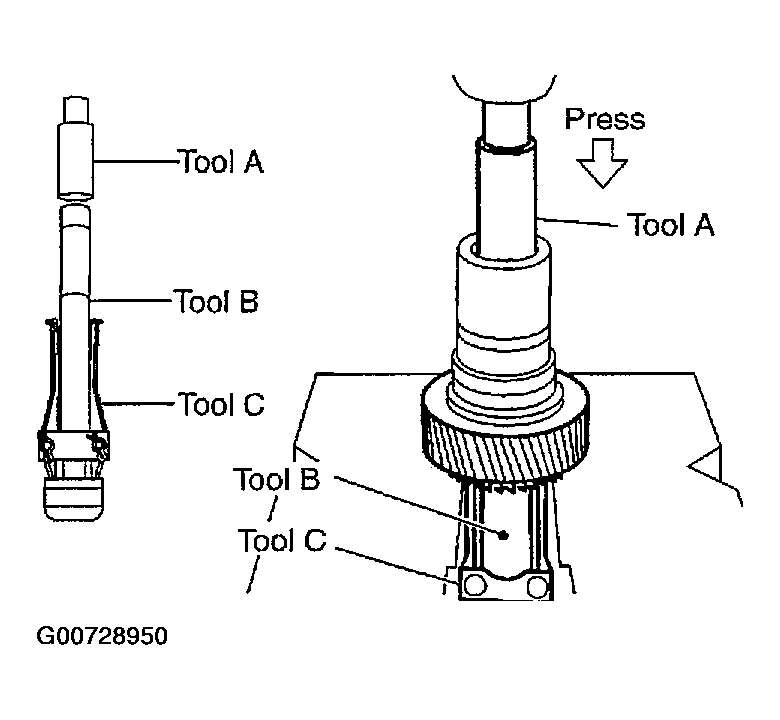

Fig 5: Removing Metal Bushing
G00728950Courtesy of NISSAN MOTOR CO., U.S.A.
