Check Acc Switch

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check ACC switch .
With CONSULT-II

Check ACC switch (ACC ON SW ) in DATA MONITOR mode with CONSULT-II.

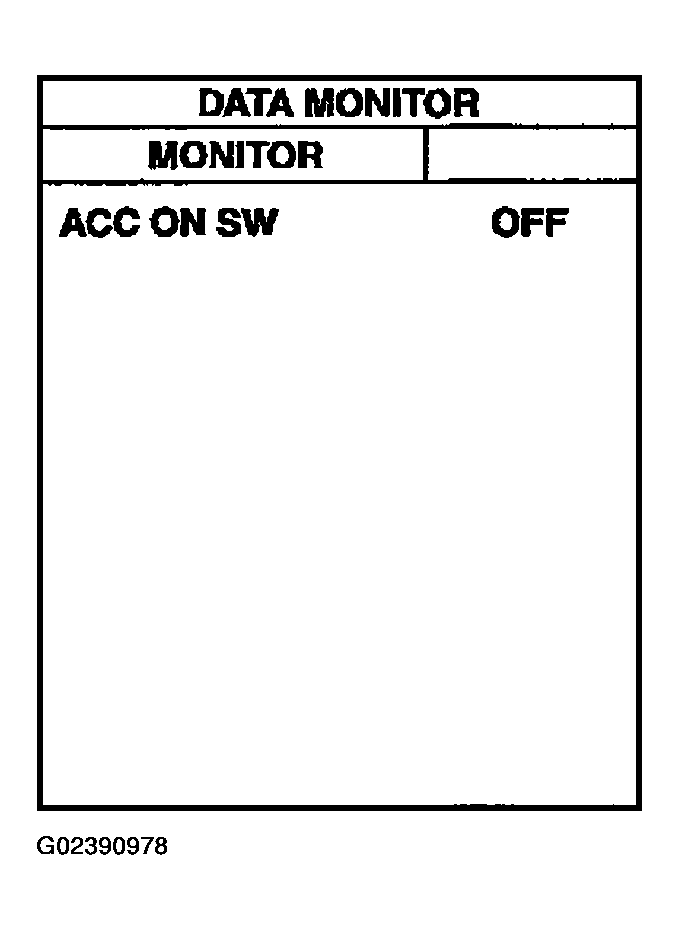

Fig 1: Displaying DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

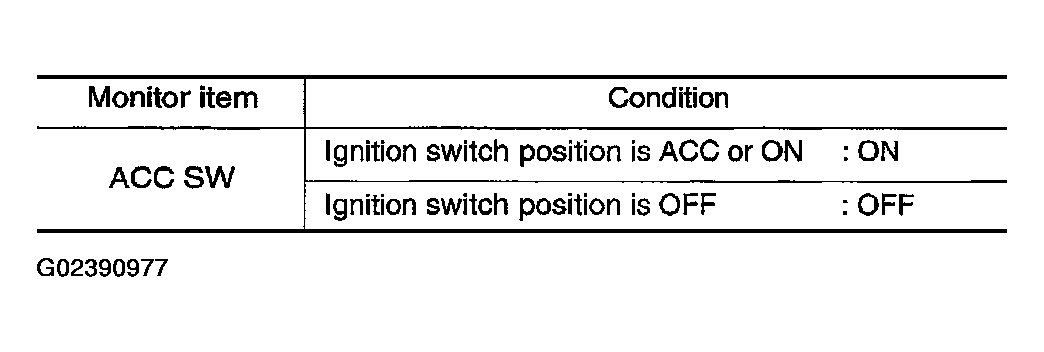

Fig 2: Displaying ACC SW Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

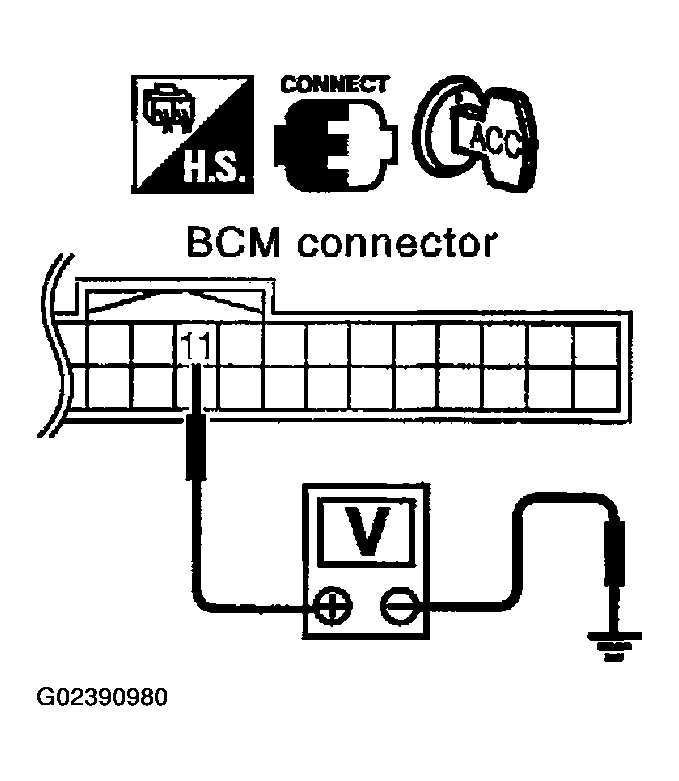

Fig 3: Checking Voltage Between BCM Connector & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

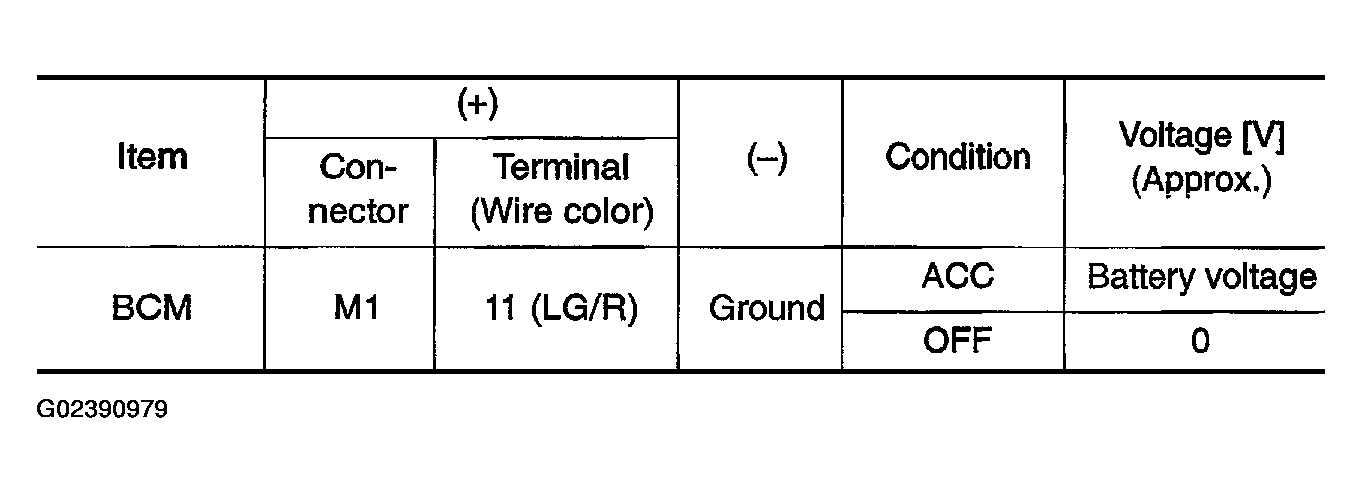

Fig 4: Displaying BCM Voltage Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: ACC switch is OK.
2. NG: Check the following.
  - 10A fuse [No. 6, located in fuse block (J/B)]
  - Harness for open or short between BCM and fuse.
