Check Door Switch

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check door switch input signal  .

    With CONSULT-II

    Check door switches (DOOR SW-DR, DOOR SW-AS, DOOR SW-RL and DOOR SW-RR) in DATA MONITOR mode with CONSULT-II.

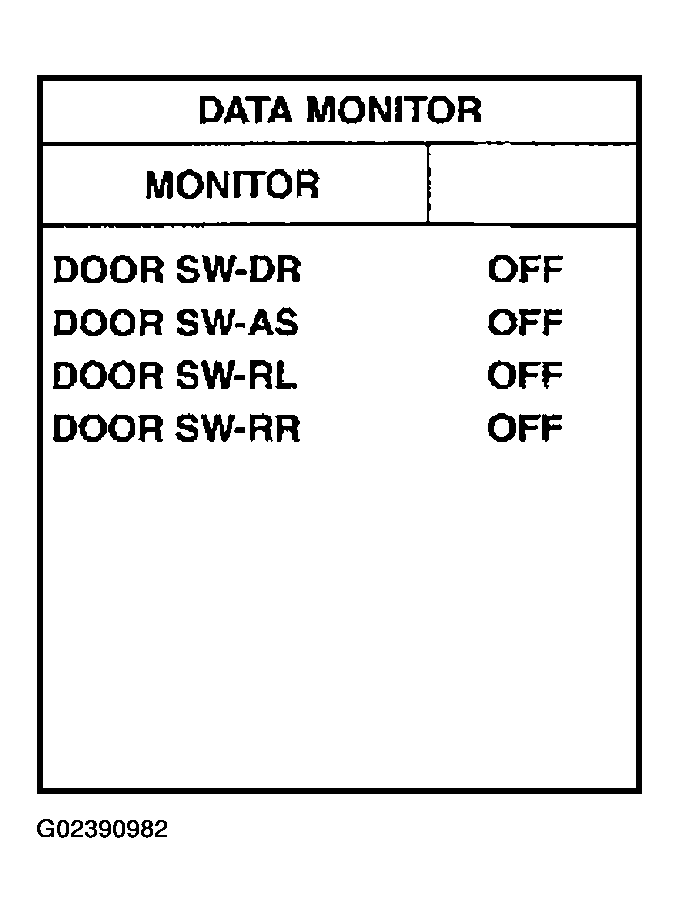

    Fig 1: Displaying CONSULT-II DATA MONITOR Screen
    G02390982Courtesy of NISSAN MOTOR CO., U.S.A.

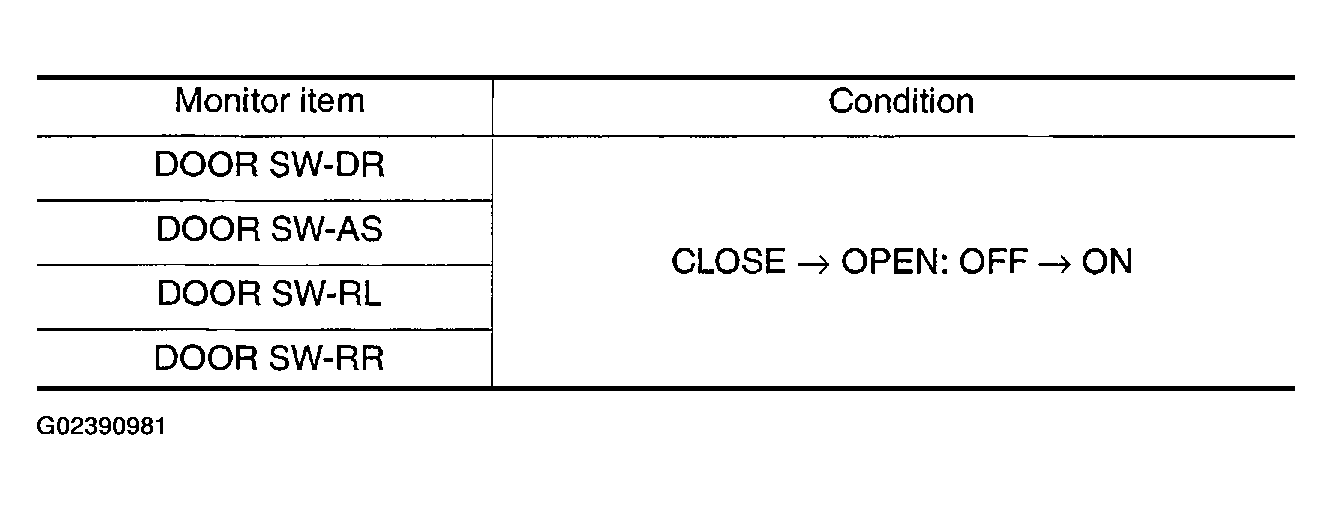

    Fig 2: Displaying Door Switches & Conditions
    G02390981Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connector and ground.

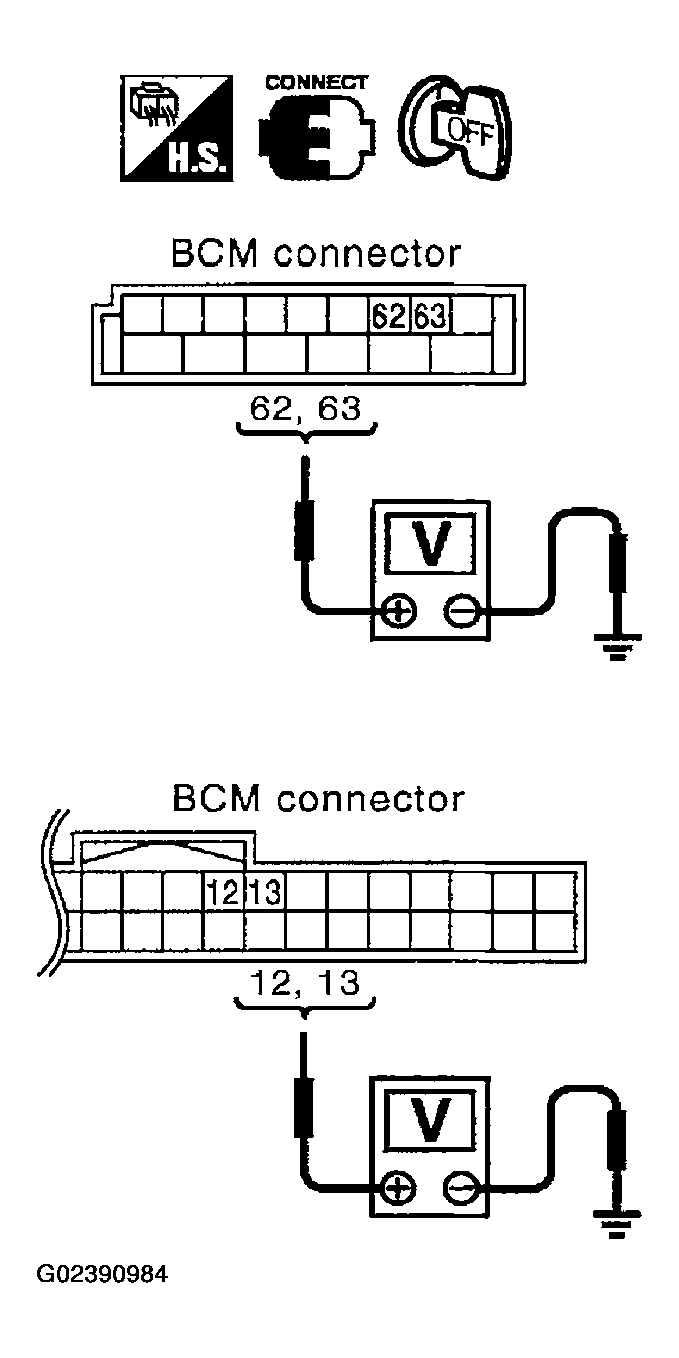

    Fig 3: Checking Voltage Between BCM Connector & Ground
    G02390984Courtesy of NISSAN MOTOR CO., U.S.A.

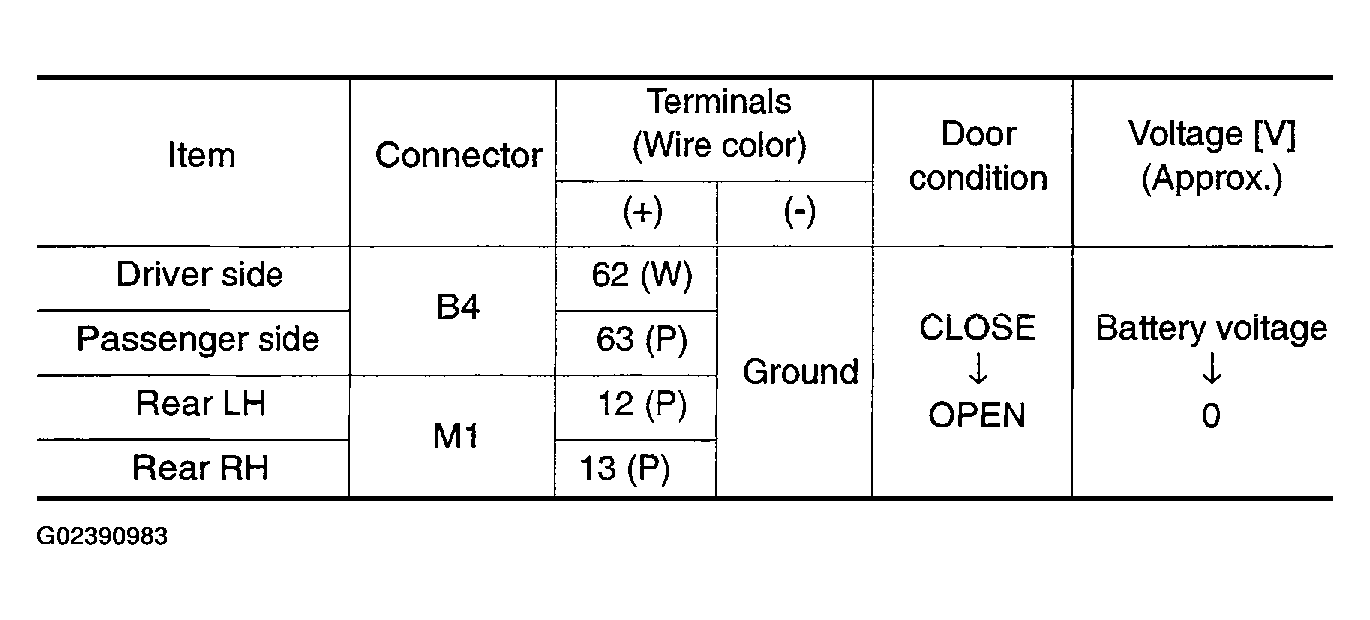

    Fig 4: Displaying Door Switch Signal Specifications
    G02390983Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Door switch circuit is OK.
    2. NG: GO TO  2 .

  2. Check door switch  .

    Check continuity between door switch terminal 1 and ground part of door switch.

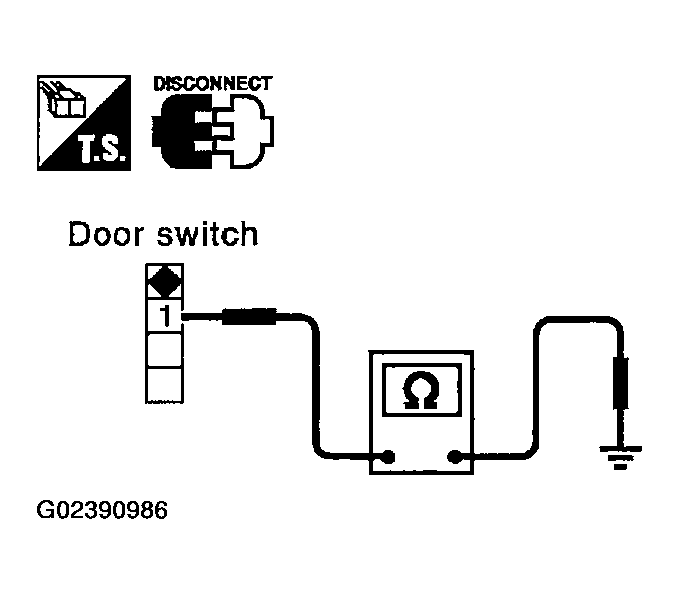

    Fig 5: Checking Continuity Between Door Switch & Ground
    G02390986Courtesy of NISSAN MOTOR CO., U.S.A.

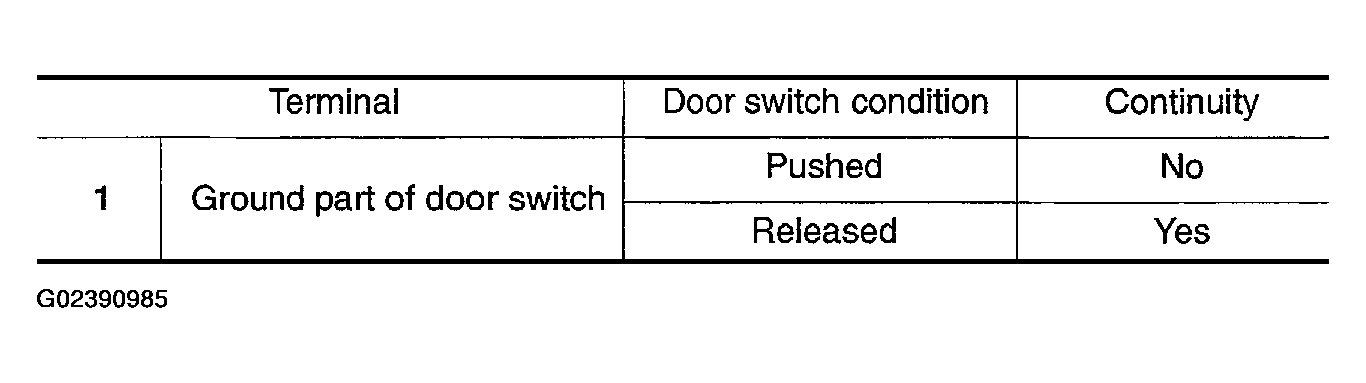

    Fig 6: Displaying Door Switch Specifications
    G02390985Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  3 .
    2. NG: Replace door switch.

  3. Check door switch circuit  .
    1. Turn ignition switch OFF.
    2. Disconnect door switch and BCM connector.
    3. Check continuity between door switch connector B17, B23, B20, B32 terminals 1 and BCM connector M1, B4 terminals 62, 12, 63, 13.

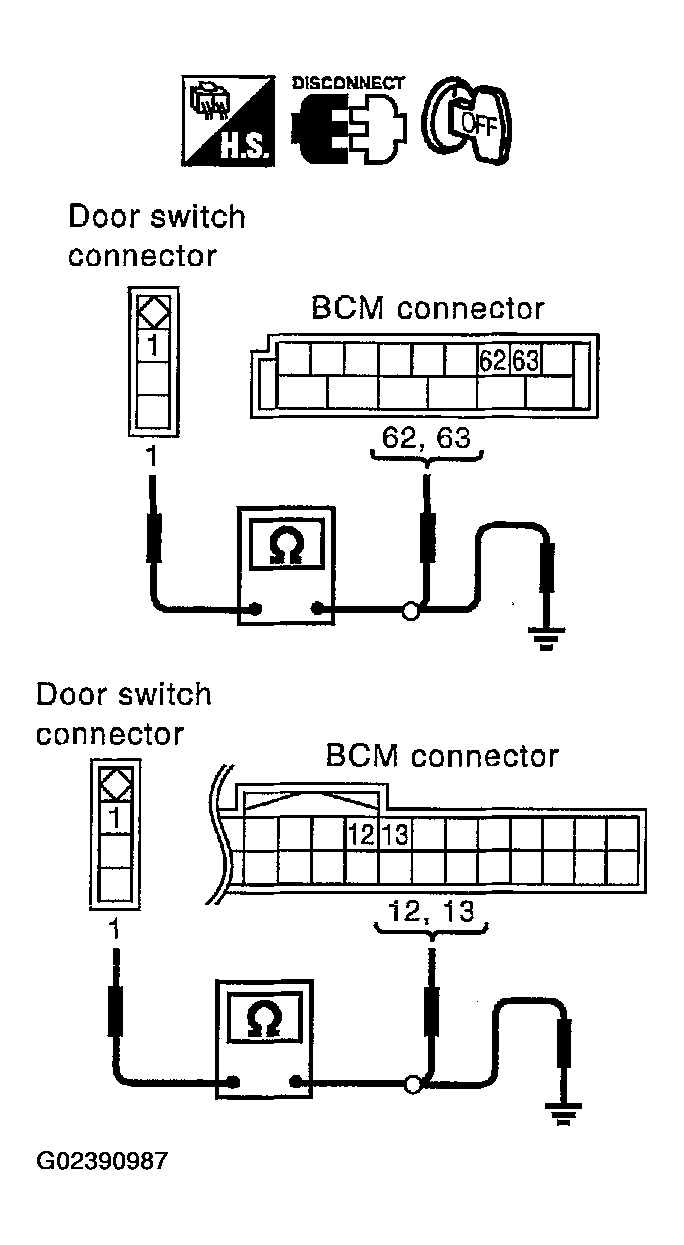

      Fig 7: Checking Continuity Between BCM & Door Switch Connectors
      G02390987Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Driver side door
      2. 1 (W) - 62 (W): Continuity should exist
      3. Passenger side door
      4. 1 (P) - 12 (P): Continuity should exist
      5. Rear door LH
      6. 1 (P) - 63 (P): Continuity should exist
      7. Rear door RH
      8. 1 (P) - 13 (P): Continuity should exist
    4. Check continuity between door switch connector B26, B36, B46, B206 terminal 1 and ground.
      1. 1 (W or P) - Ground: Continuity should not exist

        OK or NG

        1. OK: Check door switch case ground condition.
        2. NG: Repair or replace harness.
