Inspection Procedure

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

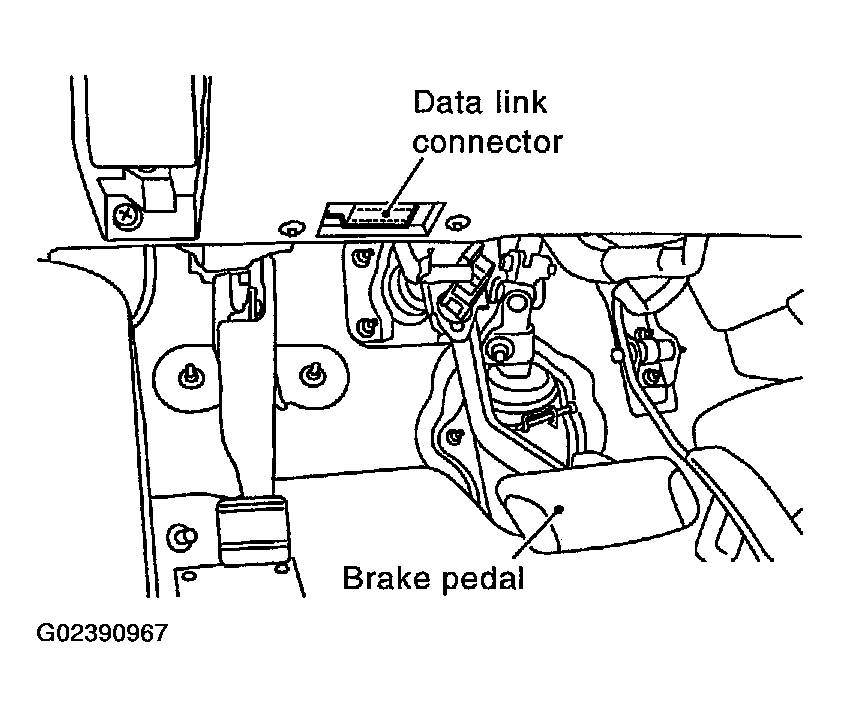

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

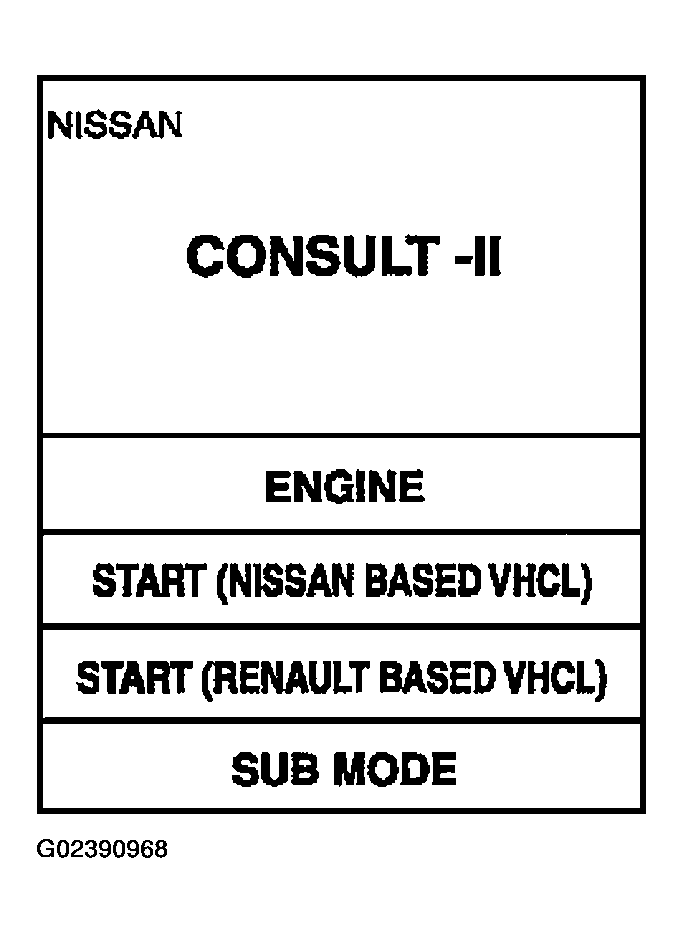

Fig 2: Displaying CONSULT-II Engine Main Menu Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch BCM.
If BCM is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

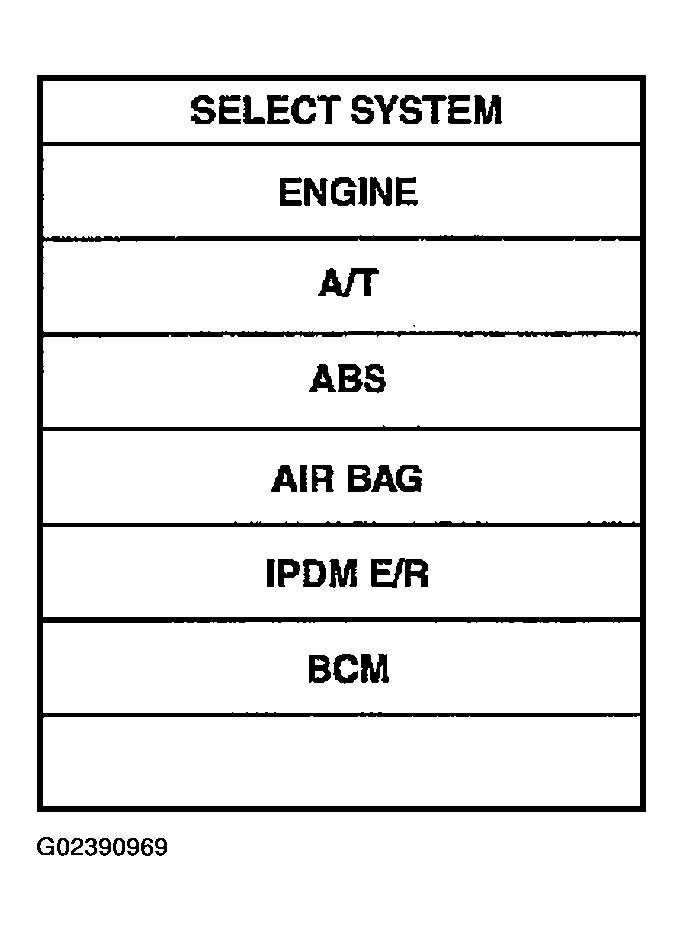

Fig 3: Displaying CONSULT-II SELECT SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch MULTI REMOTE ENT.

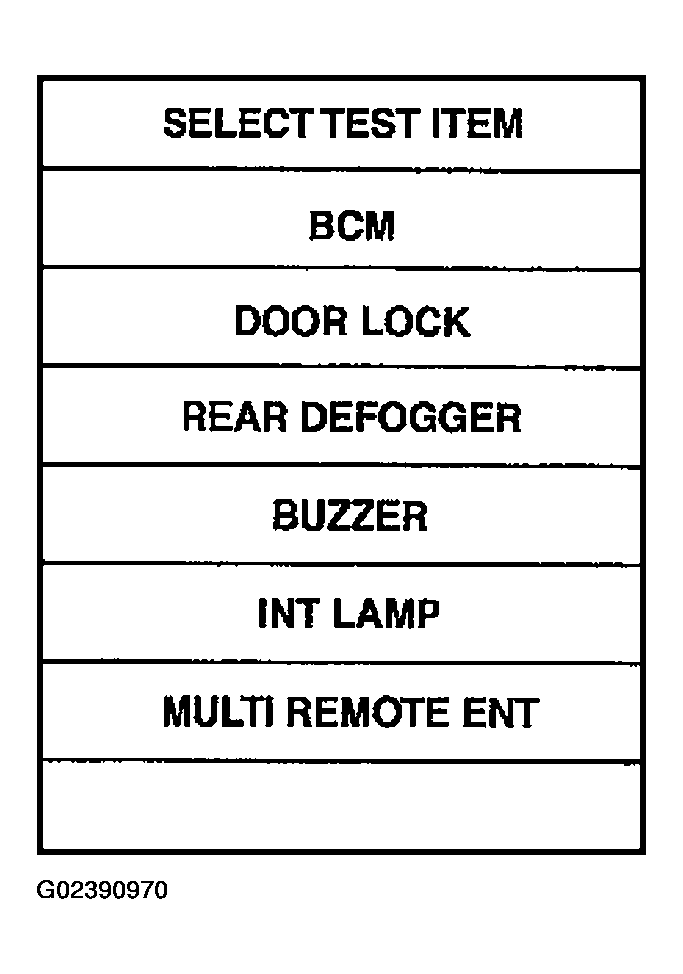

Fig 4: Displaying CONSULT-II SELECT TEST ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
DATA MONITOR , ACTIVE TEST and WORK SUPPORT are available.

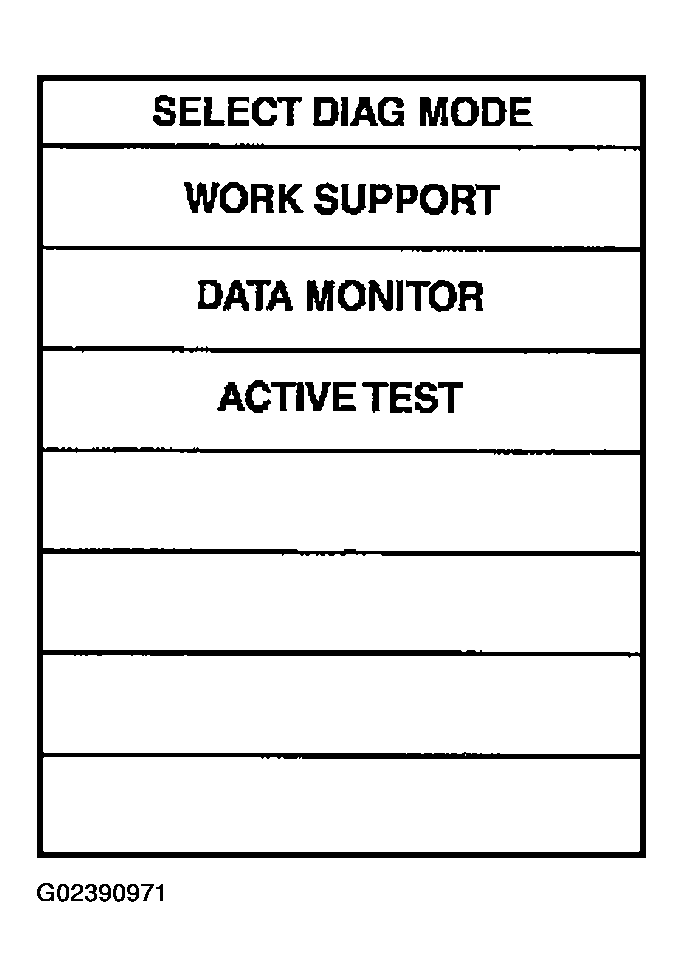

Fig 5: Displaying CONSULT-II SELECT DIAG MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
