Key Fob ID Set Up With CONSULT-II

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. A specific ID code can be erased with CONSULT-II. However, when the ID code of a lost key fob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key fobs must be re-registered.
  • When registering an additional key fob, the existing ID codes in memory may or may not be erased. If four ID codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added and no ID codes are erased.
  • Entry of maximum five ID codes is allowed. When more than four ID codes are entered, the oldest ID code will be erased.
  • Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is counted as an additional code.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

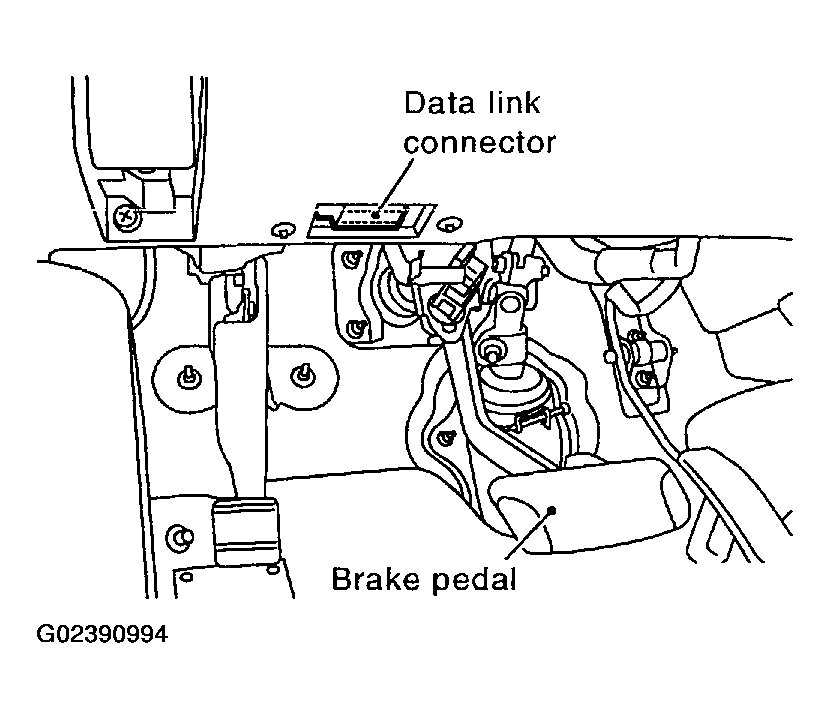

    Fig 1: Locating Data Link Connector
    G02390994Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch START (NISSAN BASED VHCL).

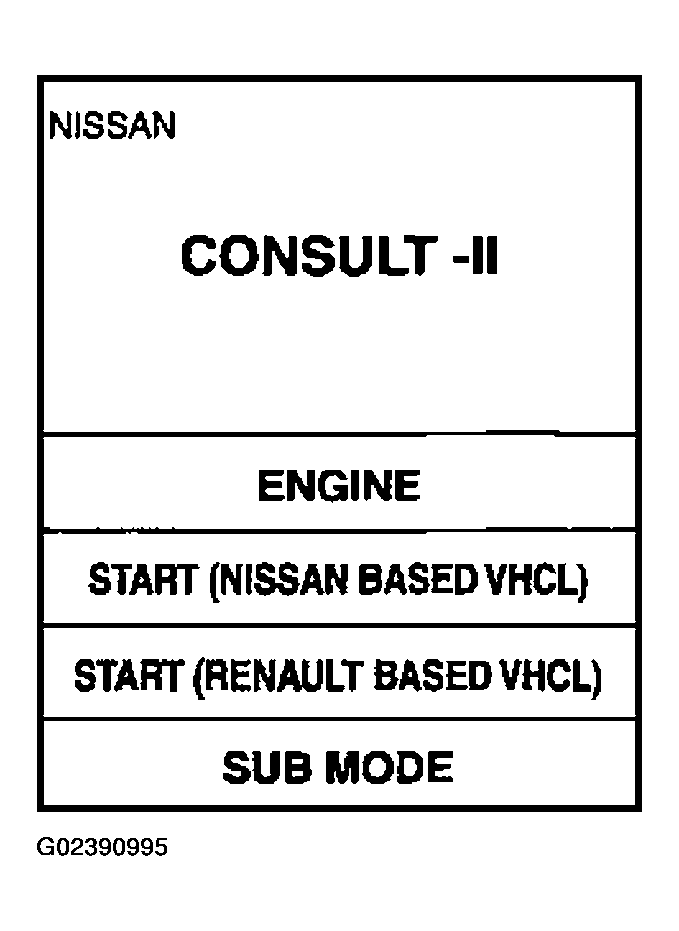

    Fig 2: Displaying CONSULT-II Main Menu Screen
    G02390995Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch BCM.

    If BCM is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

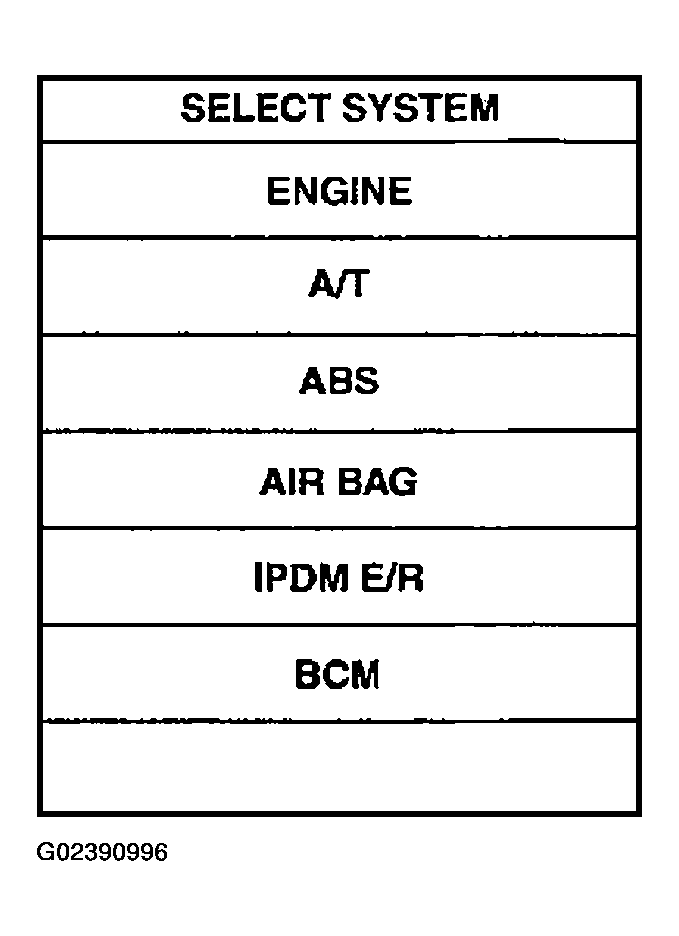

    Fig 3: Displaying CONSULT-II SELECT SYSTEM Screen
    G02390996Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch MULTI REMOTE ENT.

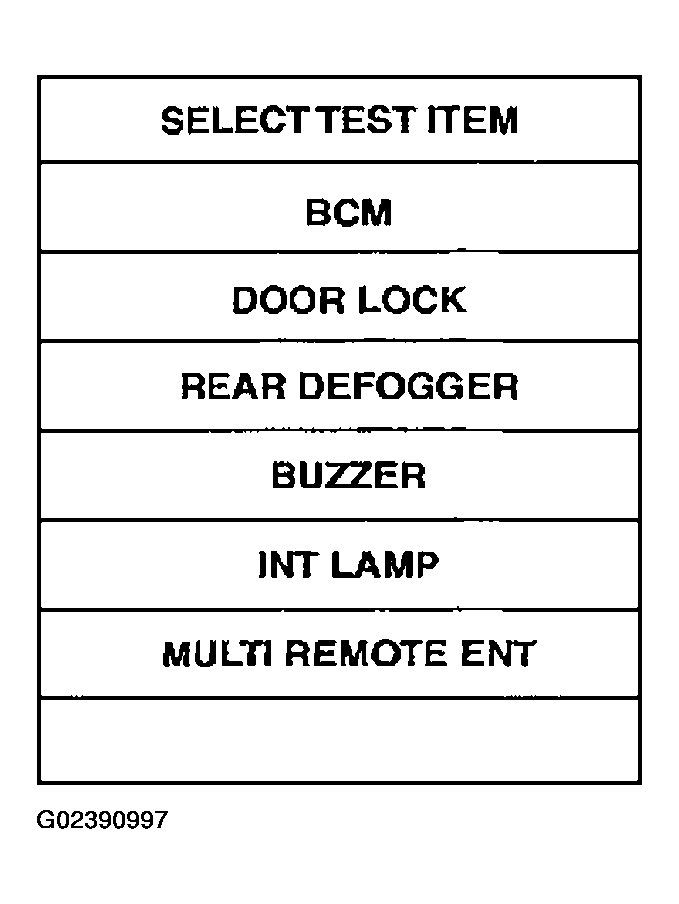

    Fig 4: Displaying CONSULT-II SELECT TEST ITEM Screen
    G02390997Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch WORK SUPPORT.

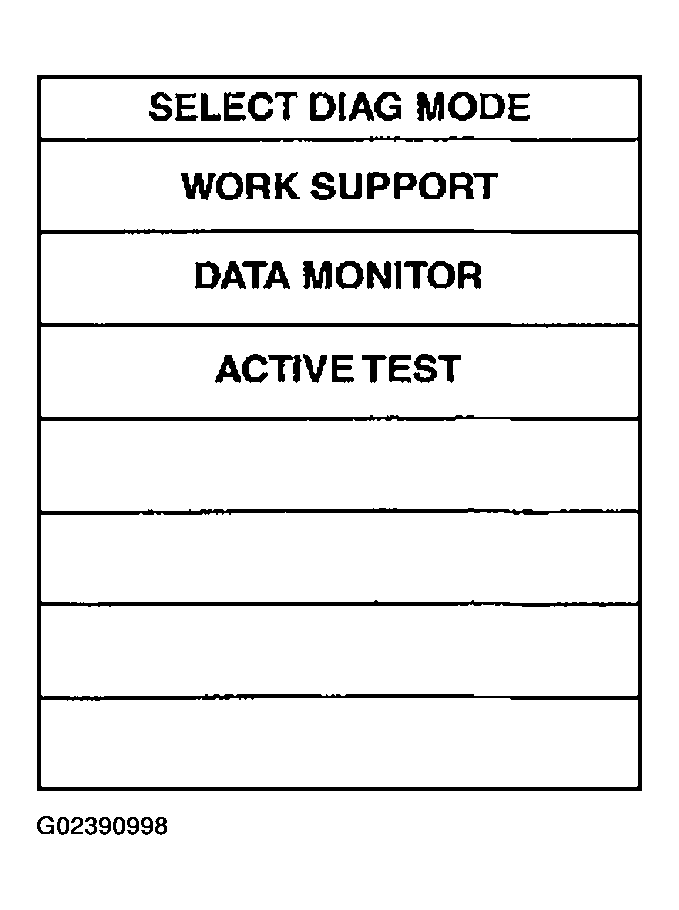

    Fig 5: Displaying CONSULT-II SELECT DIAG MODE Screen
    G02390998Courtesy of NISSAN MOTOR CO., U.S.A.
  8. The items are shown on the figure can be set up.

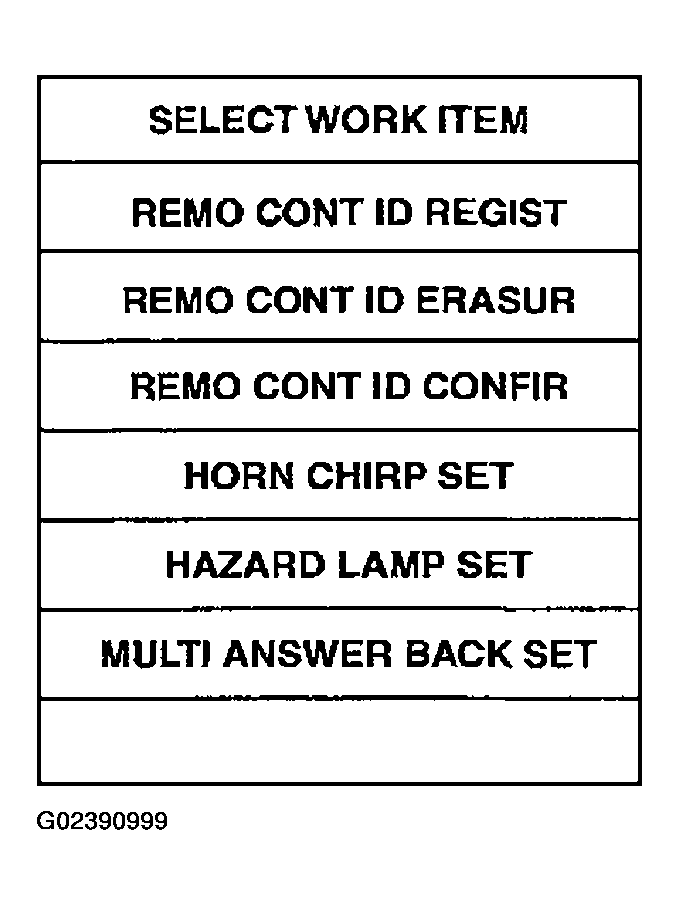

    Fig 6: Displaying CONSULT-II SELECT WORK ITEM Screen
    G02390999Courtesy of NISSAN MOTOR CO., U.S.A.
    • REMO CONT ID REGIST

      Use this mode to register a key fob ID code.

      NOTE: Register the ID code when key fob or BCM is replaced, or when additional key fob is required.
    • REMO CONT ID ERASUR

      Use this mode to erase a key fob ID code.

    • REMO CONT ID CONFIR

      Use this mode to confirm if a key fob ID code is registered or not.
