Terminals And Reference Value For Combination Meter (With Navigation System)

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

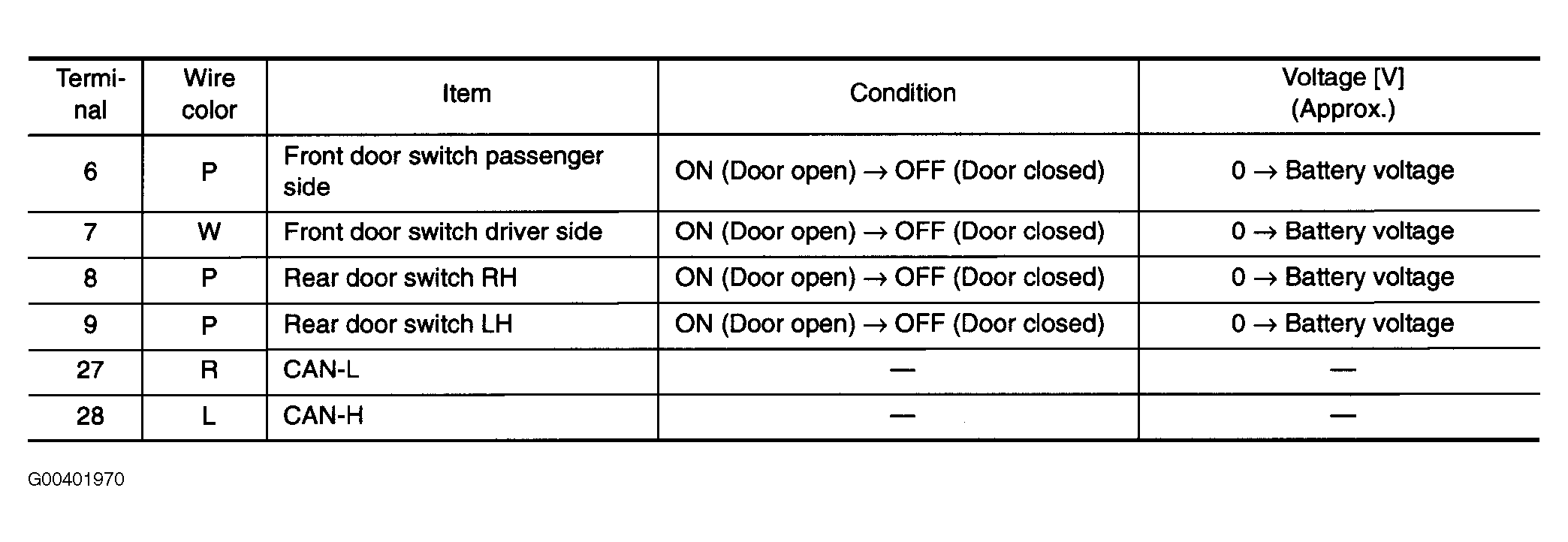

Fig 1: Displaying Terminals & Reference Value For Combination Meter
G00401970Courtesy of NISSAN MOTOR CO., U.S.A.
