Removal and Installation of Display Unit

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Remove audio unit and display unit assembly from cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Remove screws (4) and remove display unit assembly from audio unit bracket.

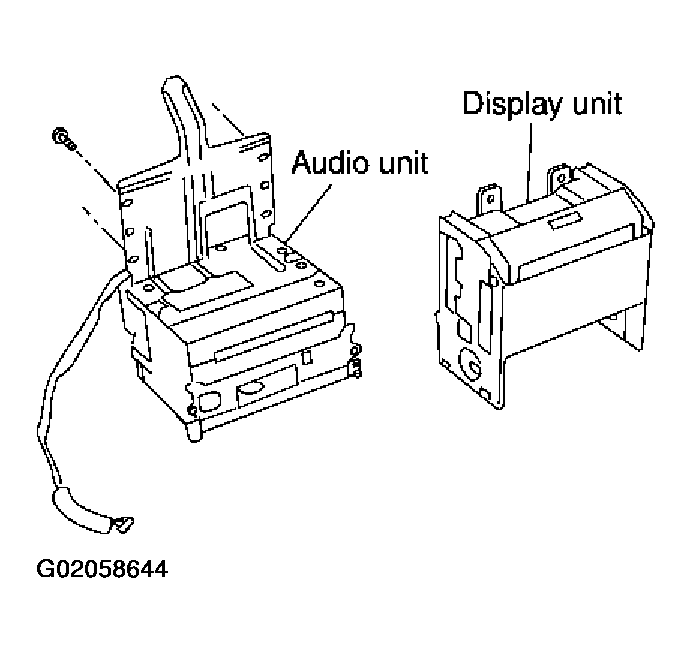

Fig 1: Removing Display Unit Assembly From Audio Unit Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
