Display with Pushed "SETTING" Switch
WARNING:
This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
The function of each icon is as follows:

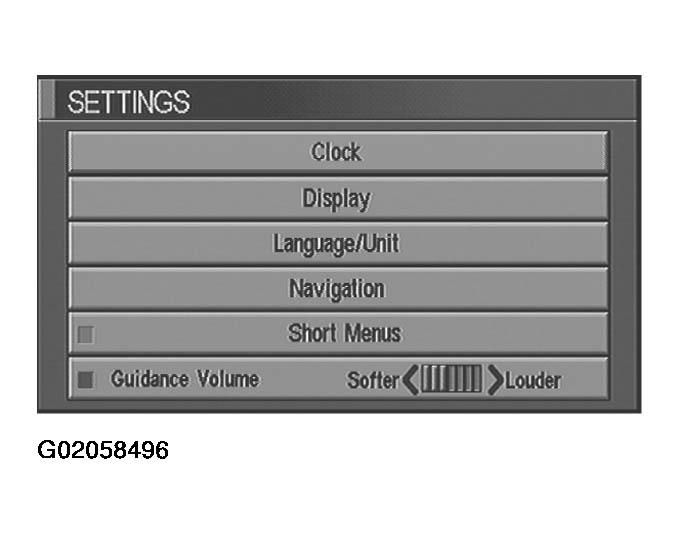

Fig 1: Identifying SETTING Switch Display
Courtesy of NISSAN MOTOR CO., U.S.A.

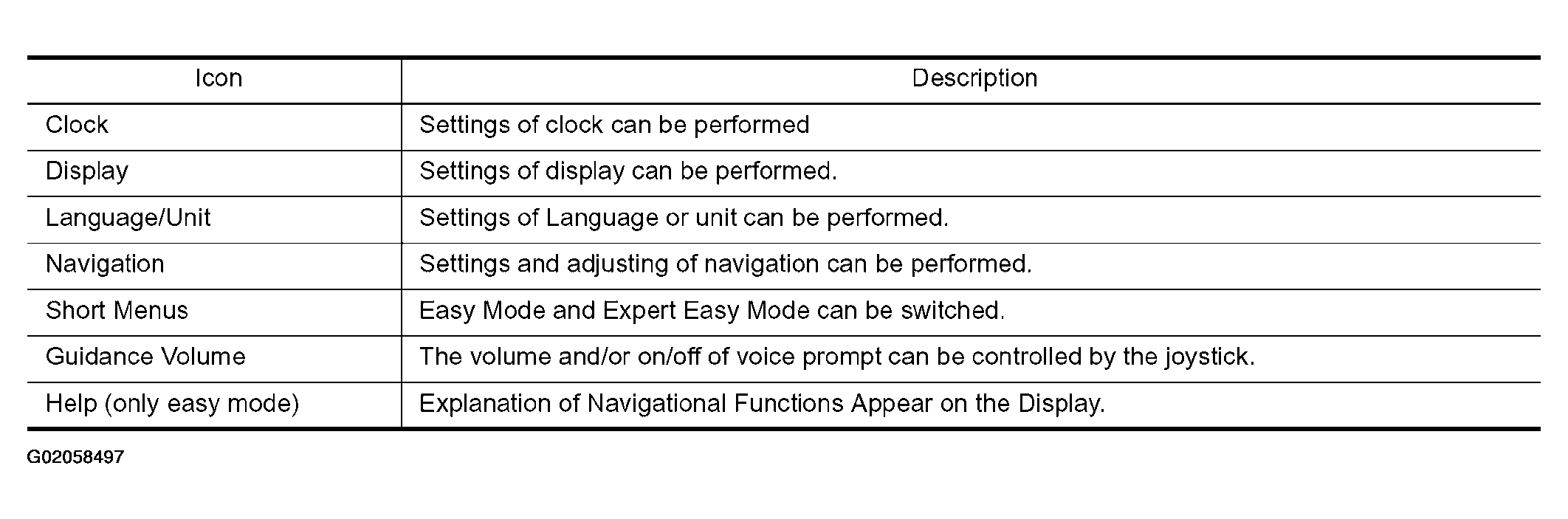

Fig 2: Identifying SETTING Switch Icon Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
