Terminal Lock Inspection

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

Check for unlocked terminals by pulling wire at the end of connector. An unlocked terminal may create intermittent signals in the circuit.

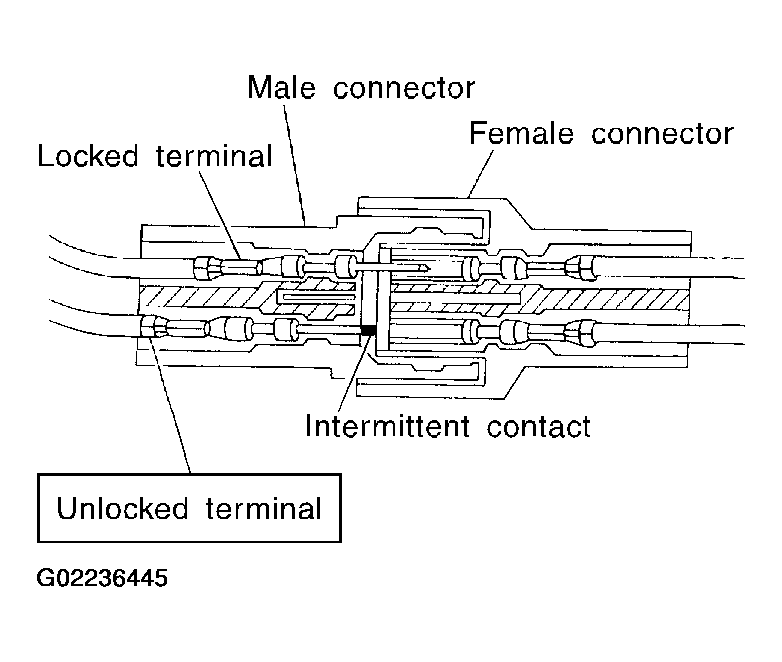

Fig 1: Verifying Terminal Is In Lock Position
G02236445Courtesy of NISSAN MOTOR CO., U.S.A.
