Data Monitor Procedure

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II to data link connector for CONSULT-II.
Turn ignition switch ON.
Touch "START" on CONSULT-II screen.

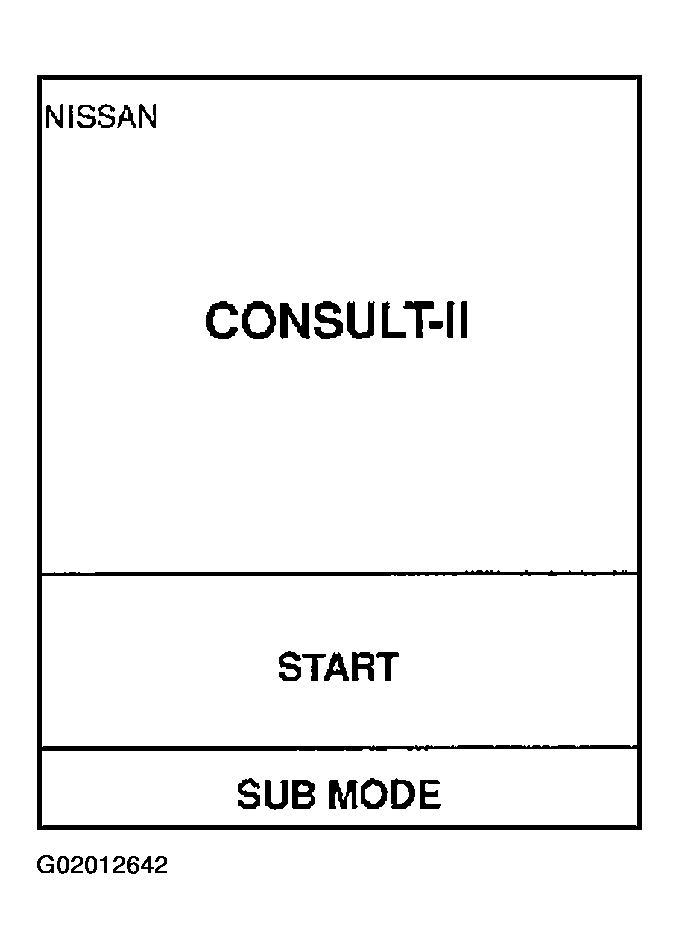

Fig 1: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

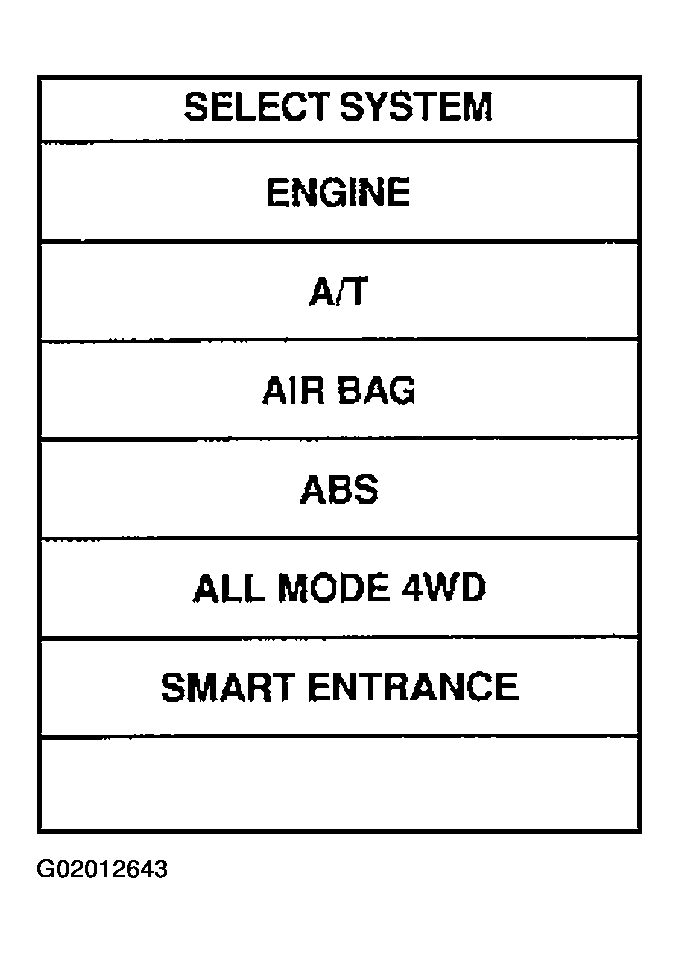

Fig 2: CONSULT-II Display - Touch "ABS"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

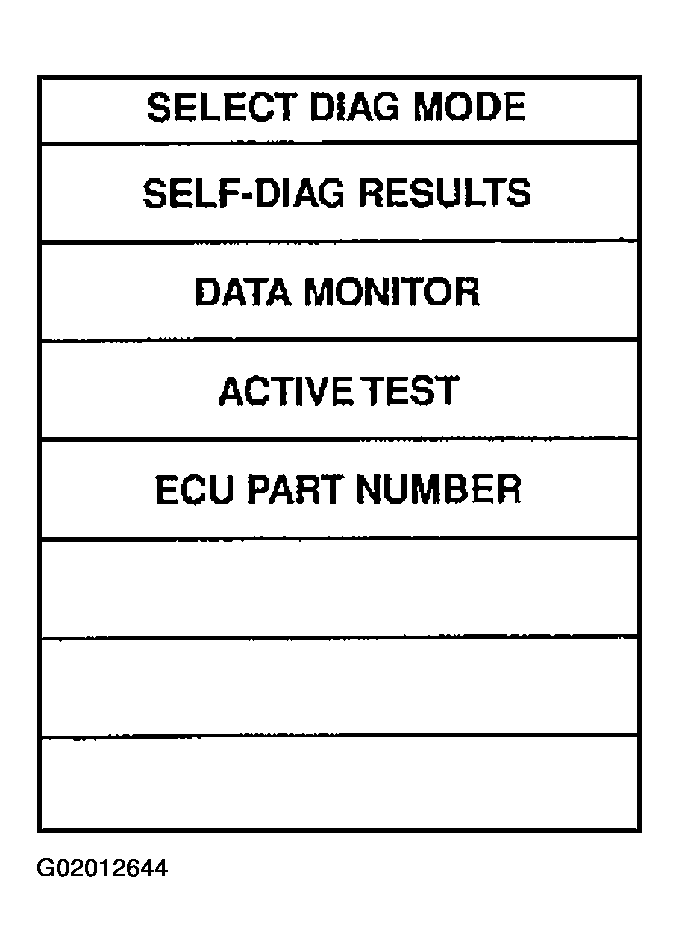

Fig 3: CONSULT-II Display - Touch "DATA MONITOR"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SETTING" on "SELECT MONITOR ITEM" screen.

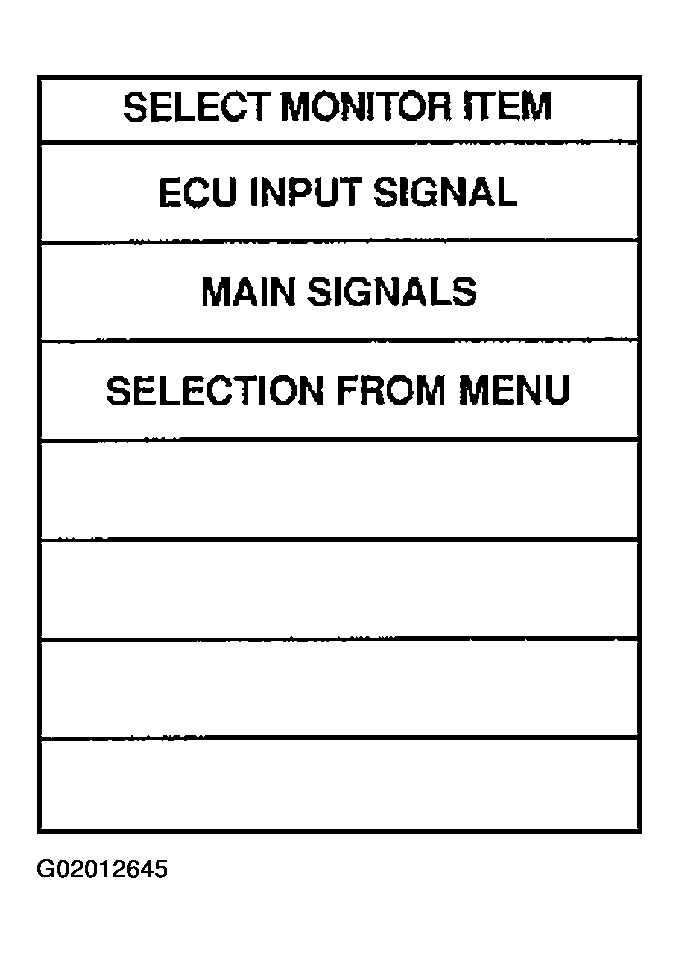

Fig 4: CONSULT-II Display - Touch "SETTING"
Courtesy of NISSAN MOTOR CO., U.S.A.
